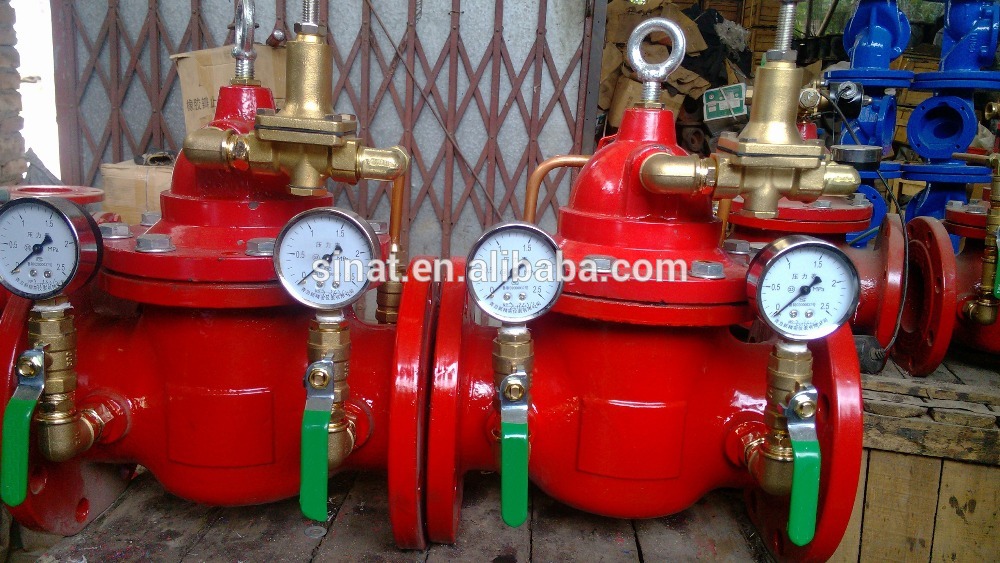

Lower pipeline Pressure reducing valve 200X DN100
Click on the image to view the original image
Product: views:4Lower pipeline Pressure reducing valve 200X DN100
Branch: SINAT
Size: 40X38X46 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 20:51
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SINAT
Model Number:
SSRRV200
Application:
General
Material:
Casting
Temperature of Media:
-10℃-+120℃
Pressure:
Medium Pressure
Power:
Hydraulic
Media:
Water
Port Size:
DN50-DN600
Structure:
Pressure Reducing
Valve name:
Lower pipeline Pressure reducing valve 200X DN100
Valve color:
Red / blue
Valve pressure:
16bar/ 25bar/ 40bar
Valve material:
ductile cast iron+cast steel
Valve Application:
water reducting valve
Valve standard:
ISO
Valve connection:
Flange type
Valve type:
diaphragm type
Standard or Nonstandard:
Standard

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X38X46 cm
Single gross weight:
56.0 kg
Package Type:
Wood packed of each item Lower pipeline Pressure reducing valve 200X DN100

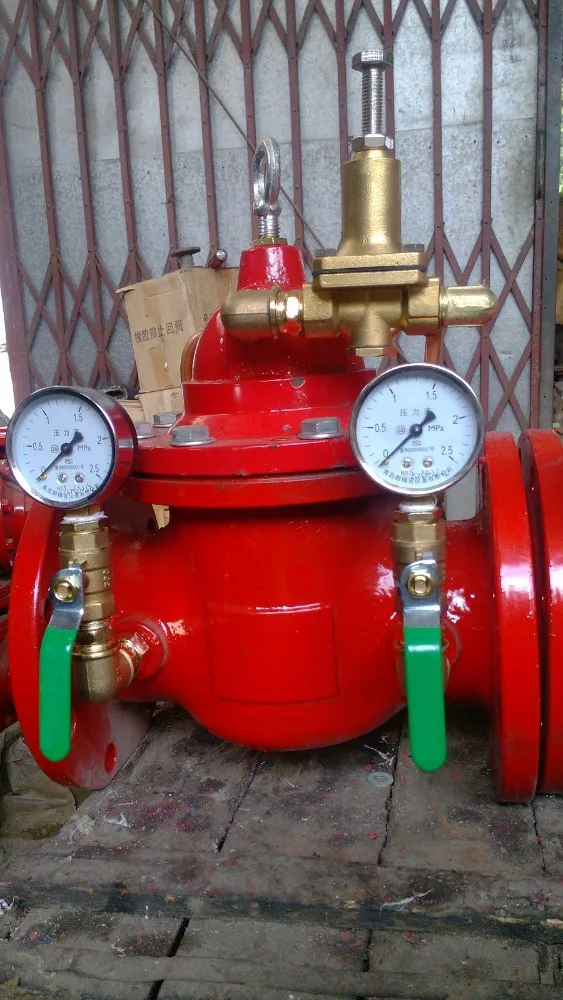

Picture Example:
package-img
Lead Time:
20

Item Deacriptions:

Lower pipeline Pressure reducing valve 200X DN100

Pressure reducing valve is used to lower pipeline pressure to a pre-set value in water system and building service application. Automatically,quietly and smoothly control downstream pressure, regardless of upstream pressure or flow fluctuation. The main is controlled by a pilot valve, which makes the main valve modulating to maintain the down stream pressure.



Name Parts

Material of parts

Body & cover material

Cast iron /Ductile iron

Valve seat & tubes &pilot valve

Brass

Valve stem/bolt/washer

Stainless steel

Spring

Stainless steel

Surface

Epoxy  powder coated

Valve sealing

EPDM/NBR

Working pressure

PN10 / PN16/PN25
