Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- SINAT
- Model Number:
- ZSFZ150
- Valve name:
- Automatic fire sprinkler system 6" wet alarm check valve
- Valve color:
- red
- Valve type:
- Wet fire water alarm valve
- Valve size:
- DN80,DN100,DN150,DN200
- Valve material:
- Brass +Cast Iron
- Valve W.P.:
- 1.2Mpa
- Valve T.P.:
- 4.8Mpa
- Valve flow (L/min):
- 15<Q<60
- Retardtime (s):
- 5~90
- Friction Resistance(Mpa):
- ≤0.02
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 50X76X68 cm
- Single gross weight:
- 31.0 kg
- Package Type:
- 1PCE PER UNIT WOOD PACKAGE Automatic fire sprinkler system 6" wet alarm check valve
- Picture Example:
![package-img]()
- Lead Time:
- 25
Item Descriptions:

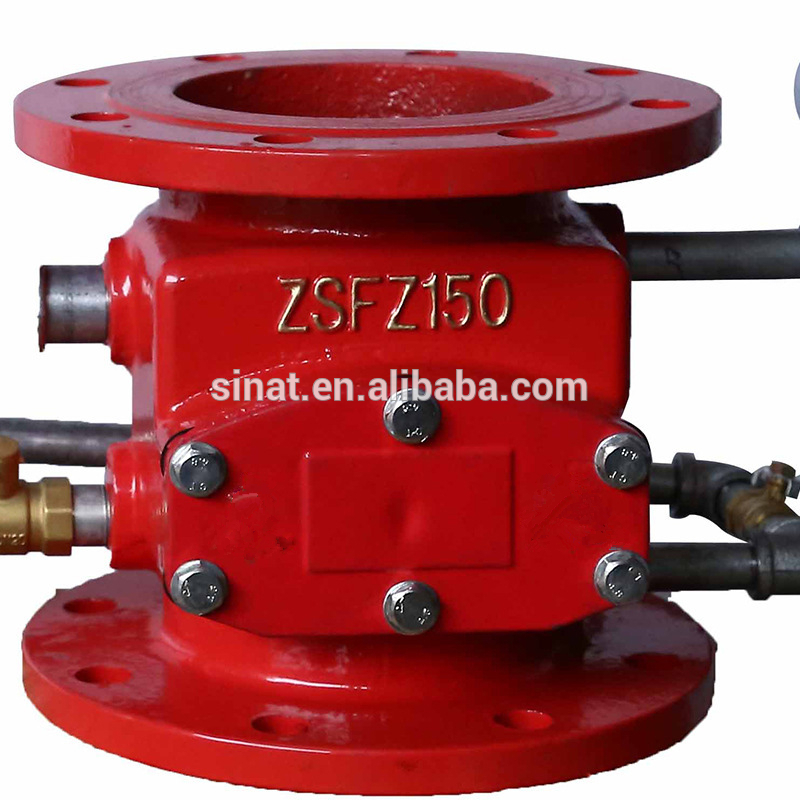

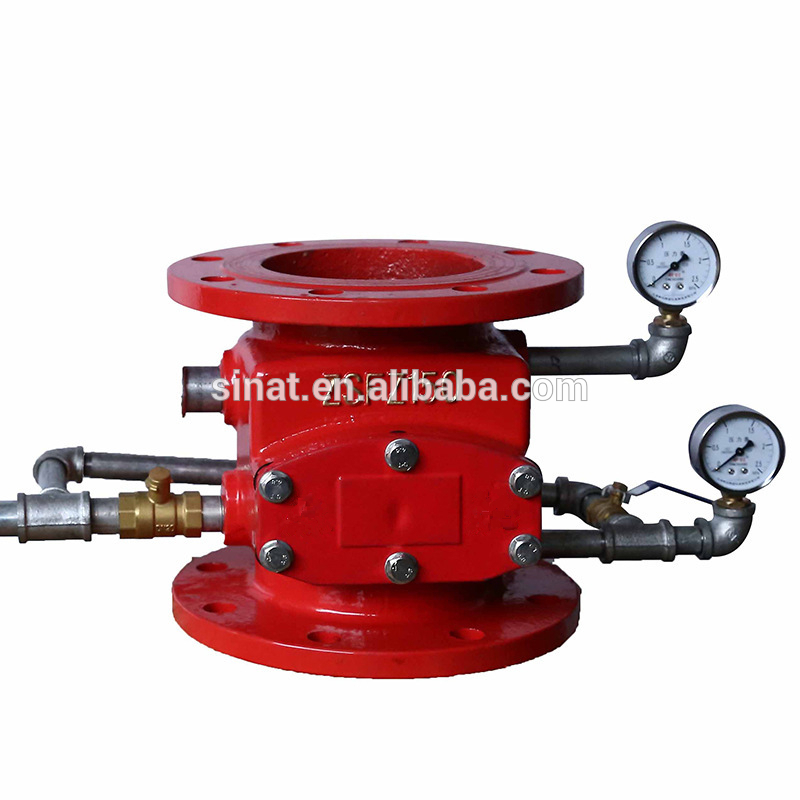

Automatic fire sprinkler system 6" wet alarm check valve
1. Type:ZSFZ100/125/150/200
2. Strength: Automatic wet fire extinguishing system
3.The wet alarm valve designed for use in wet pipe systems.
The valve will open and allow pressurization of the alarm chamber upon the operation of one or more automatic fire sprinklers.
The pressurization of the alarm chamber causes the alarm to sound mechanically through the use of a water motor alarm or through the use of a pressure switch, electrically connected to audible or visual signaling devices.
DN | Flange diameter D | Flange screw holes center D0 | Body height H | Screw hole diameter z-d | Applicable studs
| Width B | lengthA | Height L |
100 | 220 | 180 | 305 | 18 | M16×80 | 450 | 650 | 600 |
150 | 285 | 240 | 406 | 22 | M20×85 | 500 | 760 | 680 |
200 | 340 | 295 | 521 | 22 | M20×95 | 650 | 800 | 780 |
Applications:
Usually install in some fire danger places, such as warehouse, hotel, mall, office or high building and garage
Pictures:
