Click on the image to view the original image
- Packaging Type:
- wood
- Packaging Material:
- Wood
- Type:
- Filling Machine
- Condition:
- New
- Application:
- Chemical
- Automatic Grade:
- Automatic
- Driven Type:
- Electric
- Voltage:
- 220v/50hz
- Power:
- 0.75Kw
- Place of Origin:
- Zhejiang, China
- Brand Name:
- SINAT
- Dimension(L*W*H):
- 70x460x1180mm
- Weight:
- 66kg
- Certification:
- ECM certificate
- Filling Machine name:
- Abc powder filling machine for fire extinguisher
- Filling Machine power:
- 0.75kw220V/50Hz
- Filling machine N.W.:
- 66kg
- Filling machine size:
- 70x460x1180mm
- Filling machine Speed:
- >7kg per minute
- Filling machine application:
- fire extinguisher / fire service
- Filling machine Calibre:
- 20-80mm
- Filling machine pump:
- three plungers style
- Machine filter:
- 9pcs
- Machine package:
- Wood package
- After-sales Service Provided:
- No overseas service provided
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 80X52X120 cm
- Single gross weight:
- 95.0 kg
- Package Type:
- Each packed in one wood export box Abc powder filling machine for fire extinguisher
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 3 >3 Est. Time(days) 20 To be negotiated
Item Descriptions:

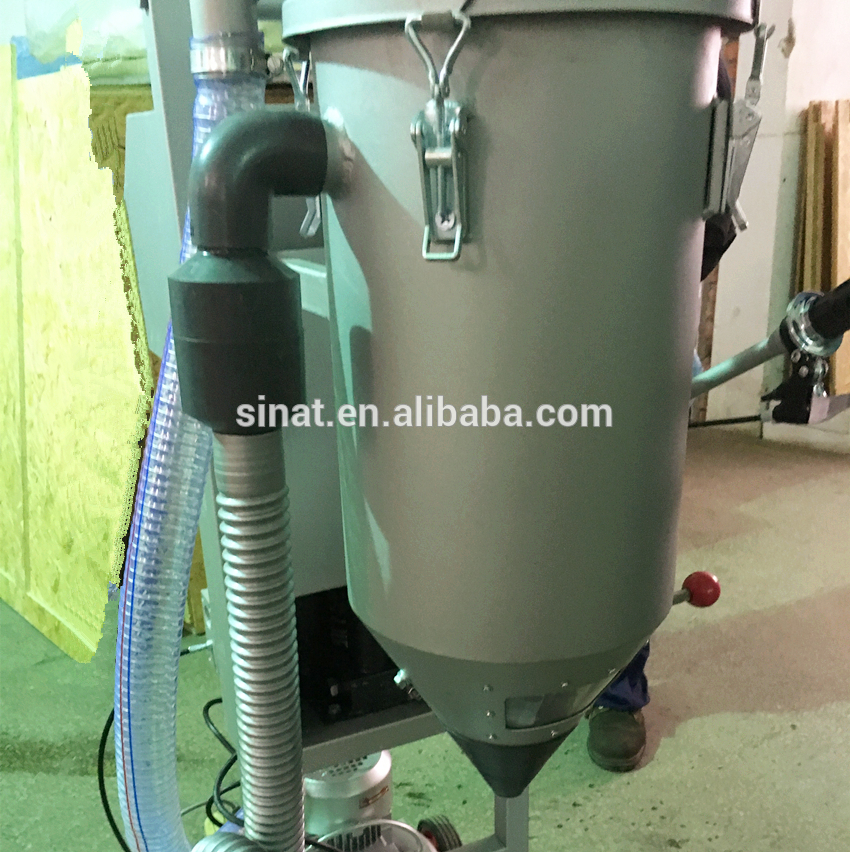

Abc powder filling machine for fire extinguisher
GMF-C Dry powder filler is suitable for filling various dry powder extinguishers. the main part of the machine is made of ultra-high molecular material and thus is durable. there is a cleaning function provided for the filter and no replacement is required for the filter in the whole service life of the machine. also the machine has advantage as direct recycling of various types of dry powder to avoid environmental pollution, simple operation, convenient use, small size and convenient movement.
Technical Parameters:
Volume: 700×460×1180mm
Weight: 66 Kg
Voltage: 220V/50Hz
Power: 0.75KW
Filling Speed: 7Kg/min
Suitable calibre:20~80mm
Maintenance:
1. Fill appropriate amount of 20# engine oil to elevating pieces;
2. When sucking, do not insert the suction tube too deep in the dry powder, otherwise, the tube is easy to be blocked;
3. Disqualified dry powder or powder with over amount of moisture is strictly prohibited to use;
4. After finish filling each time, tread on the footboard of the reversing valve times to remove the remaining dust and powder on the filter.
Fault | Cause | Solution |
Pump does not generate pressure | 1. The supplying flask not opened. | Open the supplying flask. |
2. The supplying flask does not have siphon. | Replace the supplying flask. | |
3. No gas in the supplying flask. | Replace the supplying flask. | |
4. Filter blocked. (Figure 2) | Decrease the filler"s pressure to check whether the filler is contaminated. | |
5.Pump leaking.(Pump Indicating Figure) | Decrease the filler"s pressure to dismantle the pump body, clean pump parts, and replace the damaged rubber washer. |
Pictures:
