- Place of Origin:
- Zhejiang, China
- Brand Name:
- SGT
- Bulb Type:
- LED
- Battery Type:
- Ni-Cd
- Material:
- Plastic
- Usage:
- emergency
- Certification:
- UL CUL
- Specifications:
- LED source
- Product Name:
- emergency light
- Light Source:
- LED
- Battery:
- Ni-cd Battery
- Warranty:
- 3 Year
- Emergency Time:
- More than 90mins on emergency mode
- Application:
- Household Emergency Lighting
- Input Voltage:
- 120/277V AC dual voltage
- Installation:
- Wall Surface Mounted
- Function:
- emergency
- Charge time:
- 24 Hours
- Supply Ability:
- 300000 Piece/Pieces per Month emergency light
- Packaging Details
- white/color box carton
- Port
- shanghai or ningbo

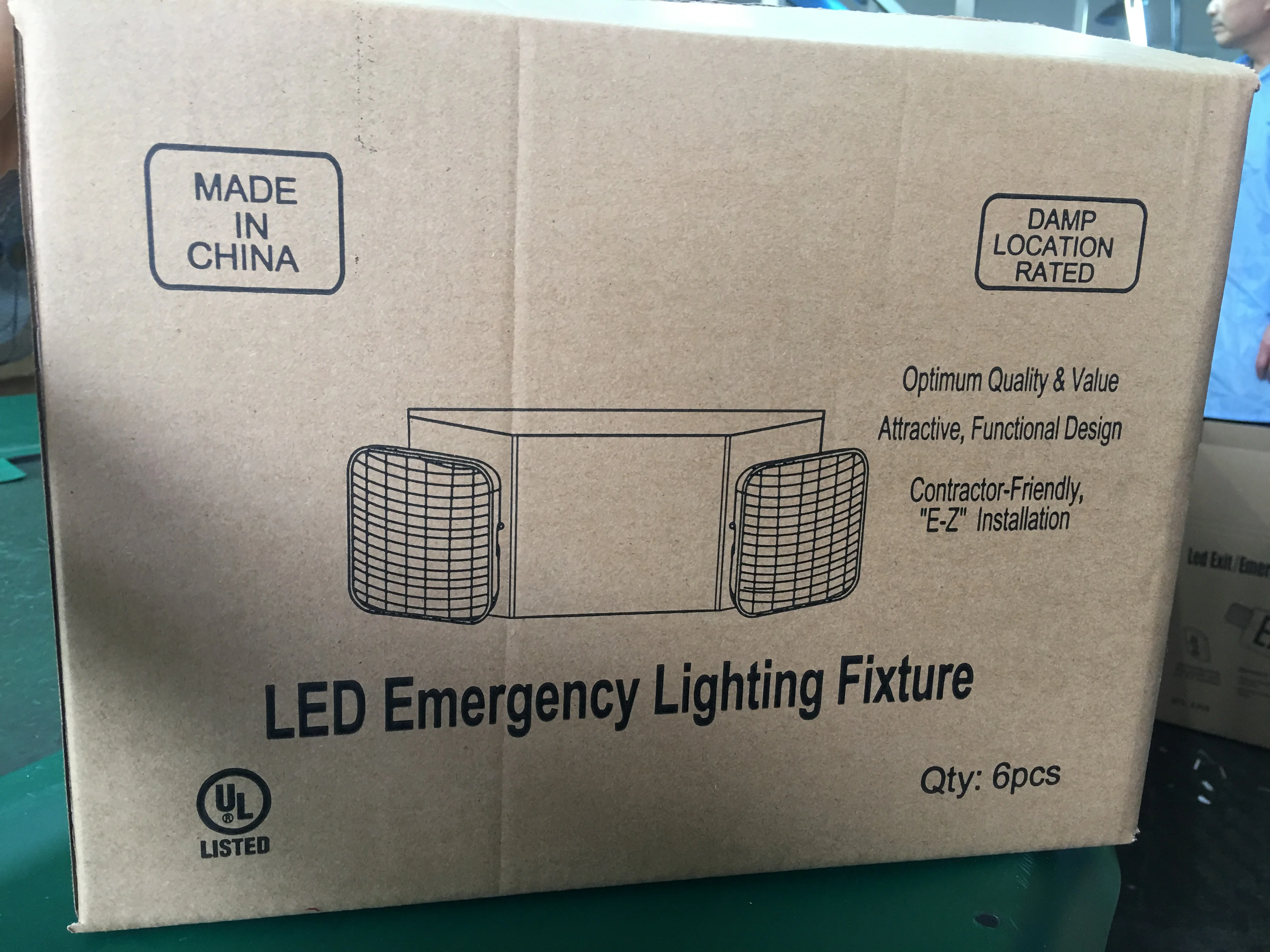

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 10 To be negotiated
| product name | 2018 new LED emergency light |
| Model | STEU1 |
| light source | 2835 SMD LED |
| Material | fire retardant ABS+PC lamp holder |
| Voltage | 120/277V AC dual voltage |
| Color | White |
| Head | Two adjustable head |
| Battery | Nickel-cadmium 6V 700mAh |
| Discharging time | more than 90 minutes |
| Operating Temperation | 0℃~40℃ |
| Carton Size | 41*28*27cm |
| Environment | Suitable damp location |
| Warranty | 5 years warranty for the electrical parts /3 years warranty for battery |
| MOQ | 200pcs |
| Lead time | 25-30 days |
| certification | UL CUL |
| new model | 15-20 models/year |
| payment | T/T |
Features:
--injection-molded thermoplastic ABS housing 5VA flame rating
--innovative,easy installation in minutes
--suitable for wall mount applications
--universal J-box mounting pattern
--120V/277VAC dual voltage operation
--220V-240VAC voltage operation
--2*1.5WCOB/2*0.125w(8pcs)DIP LEDs lamps for emergency mode
--built-in 6V700mAh rechargeable Ni-cd battery for minium 90 minutes
emergency operation
--maximum 24 hours for full recharge time
--test switch and charge indicator
--UL and CUL listed
--0℃ to 40℃ indoor damp location listed
--5years warranty for the electrical parts and housing 3 years warranty for battery
--big COB LED is newest technology with high intensity lighting and super brightness
Product advantage
Long lasting, efficient ultra-bright white LEDs.
High-performance chrome-plated metalized reflector and polycarbonate lens for optimal light distribution.
Adjustable LED lamp heads provides optimal center-to-center spacing. Optional high-lumen heads are available for increased
Electrical:
Dual 120V/277V voltage.
Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing.
Long-life, maintenance-free, rechargeable NiCd battery.
Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Mounting:
Surface mount via quick-connect back plate; fits most standard size junction boxes and snaps into place to make internal electrical connections.
Conduit mount knockout on top of housing. Suitable for wall or ceiling mount.
Housing:
Injection-molded, engineering-grade, 5VA flame retardant, high-impact, thermoplastic in white or black finish.
Warranty/Listing:
Five year warranty on all electronics and housing. Batteries pro-rated for five years.
UL listed for damp locations (0°-50°C/32°F-122°F standard).
Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
In order to avoid battery drainage, the battery included does not come connected within the unit when shipped. Please make sure to have the battery connected before testing.
Reliable fixation
Long time standby without failure
Reasonable parts layout
PCB protection isolation layout
Reasonable wire layout
Security and stable transformer
Security soldered
Such strong product let our custormers always get what they what.
If you have any requirement on the packing,please contact us.
We will give you the best and most professional survice.
