Fire safety products wired conventional Fire Alarm Control Panel 16 Zone Fire Alarm Panel
Click on the image to view the original image
Product: views:4Fire safety products wired conventional Fire Alarm Control Panel 16 Zone Fire Alarm Panel
Branch: SUMRING
Size: 48X42X18.5 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 21:24
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUMRING
Model Number:
SR-P01-16
Fire Panel Type:
Conventional
AC POWER:
220VAC, 50 Hz
Name:
wired conventional Fire Alarm Control Panel 16Zone Fire Alarm Panel
fire alarm control panel:
16 zone
Function:
Fire detection
battery:
Sealed lead-acid batteries only
Maximum charging circuit:
27.6VDC @ 0.8 amp for normal flat charge

Packaging & Delivery

Selling Units:
Single item
Single package size:
48X42X18.5 cm
Single gross weight:
10.0 kg
Package Type:
carton
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)5To be negotiated

Fire safety products wired conventional Fire Alarm Control Panel 16Zone Fire Alarm Panel











Product Description

Fire alarm control panel



SR-P01-4    4 zones conventional fire alarm control panel

SR-P01-8    8 zones conventional fire alarm control panel

SR-P01-16 16 zones conventional fire alarm control panel

The SR-P01 Series Conventional Fire Alarm Control Panel is 220VAC, 50 Hz, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.

Please note: This link defaults to model SR-P01-16





Main Features:

Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept
two-wire smoke detectors and any normally-open contact devices.
Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits
(NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed.



Technical specification:

AC POWER: 220VAC, 50 Hz.
BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for
normal flat charge. Maximum battery charger capacity: 18AH battery.
NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate
battery box.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH.
Resettable four-wire smoke detector power output.
Non-resettable power output.
Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC
(resistive), 2.0 amps @ 30 VAC (resistive)

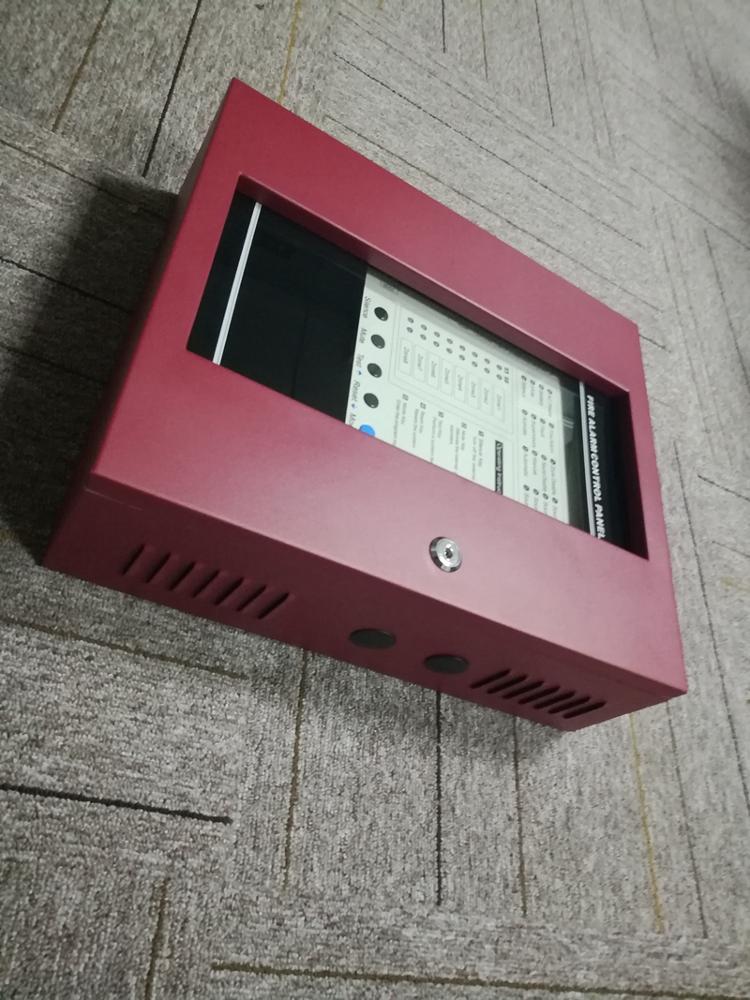

Product Pictures





This fire alarm control panel can Match any 2/4-wire smoke heat detector,strobe siren,fire bell,manual call point ect

smoke detector2 wire, 4 wire optiona, photoeletrci type
heat detector2 wire, 4 wire optional, rate of rise or fixed temeparture
strobe sirenwired type, with or without strobe
fire bellwired type, indoor or outdoor type
manual call pointresettable type or breaking glass type optional



Not only the alarm control panel we have, but also we offer all kinds of detectors if you want, we are looking forward to your inquiry, thank you!
