Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-615R
- Usage:
- Personal, Home Security alert
- Operating voltage:
- 9V battery
- Standby current:
- less than 25uA
- Alarm current:
- less than 15mA
- Operating temp:
- -10 to +50 degrees
- Installation mode:
- wall mounted
- Installation height:
- about 2m
- Detecting distance:
- 12m
- Detecting angle:
- 110 degrees
- Transmitting freq:
- 315MHz or 433MHz
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10.9X6.1X4.7 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or neutral color box

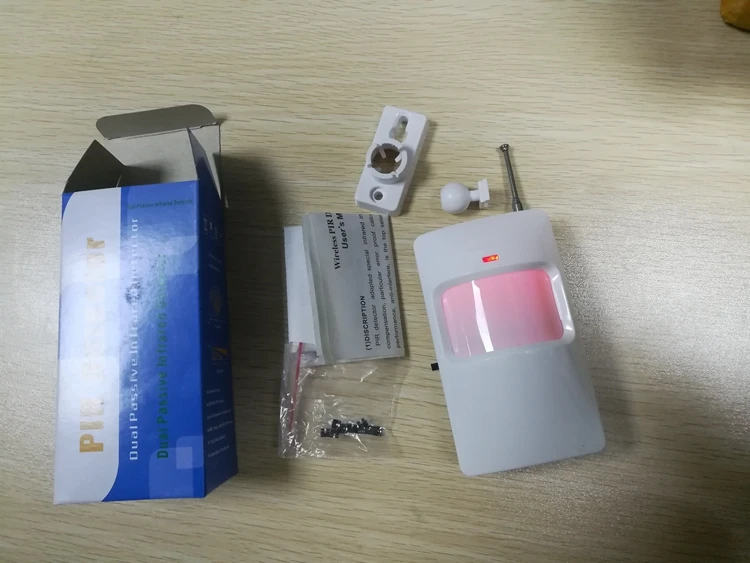

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 10 To be negotiated

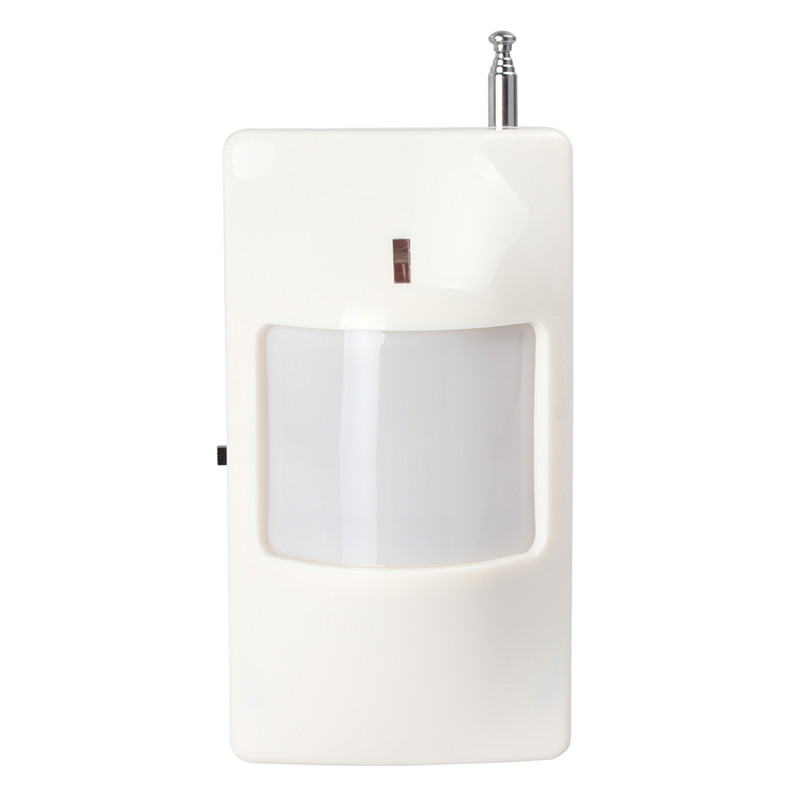

Battery operated pir active infrared motion detector sensor de movimiento 433mhz
Main features:
1. wireless transmitting digital signal
2.low power indication
3.ASIC adopted
4.Automatic temperature compensation
5.Low power consumption, long battery life
6.SMT adopted, anti-RFI & anti-EMI
Technical specification:
| SR-615R | Wireless Wide Angle PIR Detector |
| Operating voltage | 9V battery |
| Standby current | less than 25uA |
| Alarm current | less than 15mA |
| Operating temp | -10 to +50 degrees |
| Installation mode | wall mounted |
| Installation height | about 2m |
| Detecting distance | 12m |
| Detecting angle | 110 degrees |
| Transmitting freq | 315MHz or 433MHz |
| Transmitting distance | more than 100m (in the open area) |
| Dimension | 107*59*45mm |

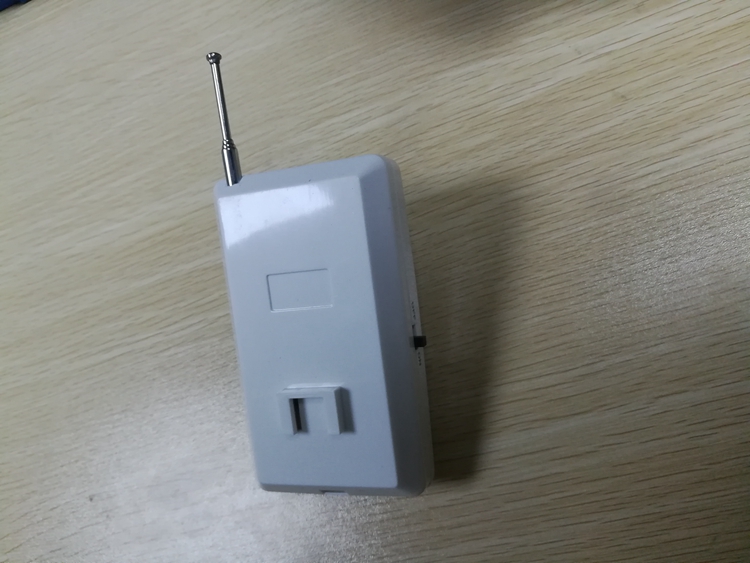

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
