Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-610W
- Usage:
- home security, burglar alarm
- Theory:
- pir sensor
- Output:
- alarm output N.C./ N.O. optional
- operating voltage:
- DC 9-16V
- consumption current:
- less than 18mA(DC12V)
- operating temp:
- -10 to +50 degrees
- installation mode:
- wall or corner mounted
- installation height:
- about 2.2m
- detecting distance:
- 12m
- detecting angle:
- 110 degrees
- alarm output:
- N.O./ N.C. relay optional
- anti-dismantle switch:
- N.C.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 9.1X5.45X4.05 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- NEUTRAL COLOR BOX
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 8 To be negotiated
New original home security systems Wide Angle Mini types of pir sensor motion alarm
Main features:

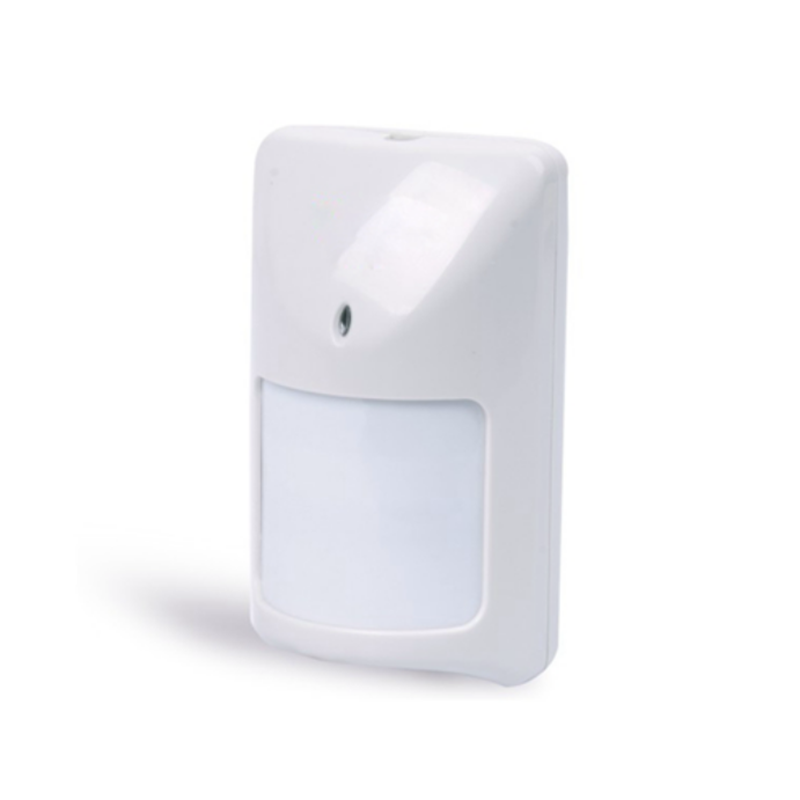

SR-610W Wide Angle PIR Detector (Infrared sensor)
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technical specification:
operating voltage: DC 9-16V
consumption current: less than 18mA(DC12V)
operating temp.: -10 to +50 degrees
installation mode: wall or corner mounted
installation height: about 2.2m
detecting distance: 12m
detecting angle: 110 degrees
alarm output: N.O./ N.C. relay optional
anti-dismantle switch: N.C.
dimension: 89*52.5*38.5mm

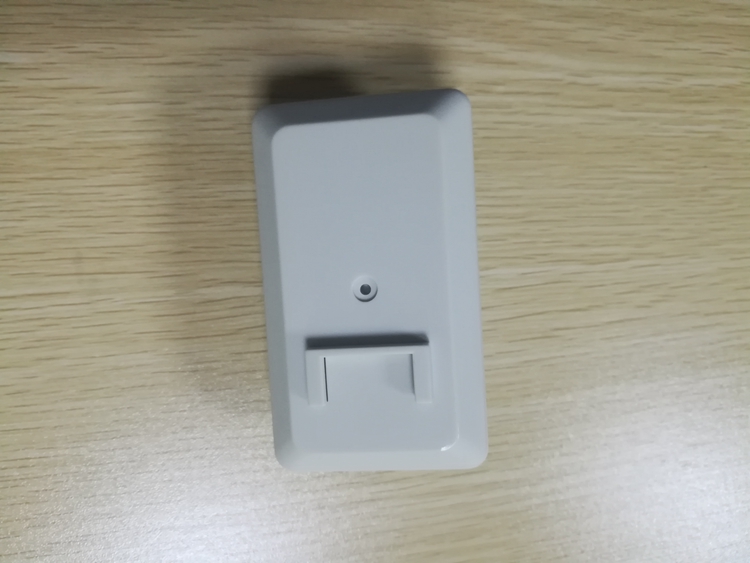

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
