Wide Angle PIR Detector (Infrared Sensor)
Main feature:
ceiling mounted
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technology parameter:
operating voltage: DC 9-16V
consumption current: ≤18mA(DC12V)
operating temp.: -10°C ~+50°C
installation mode: ceiling mounted
installation height: about 2.5~6m
detecting distance: φ8m
detecting angle: 360 degrees
alarm output: N.O./ N.C. optional
anti-dismantle switch: N.C.
dimension: φ106*36mm

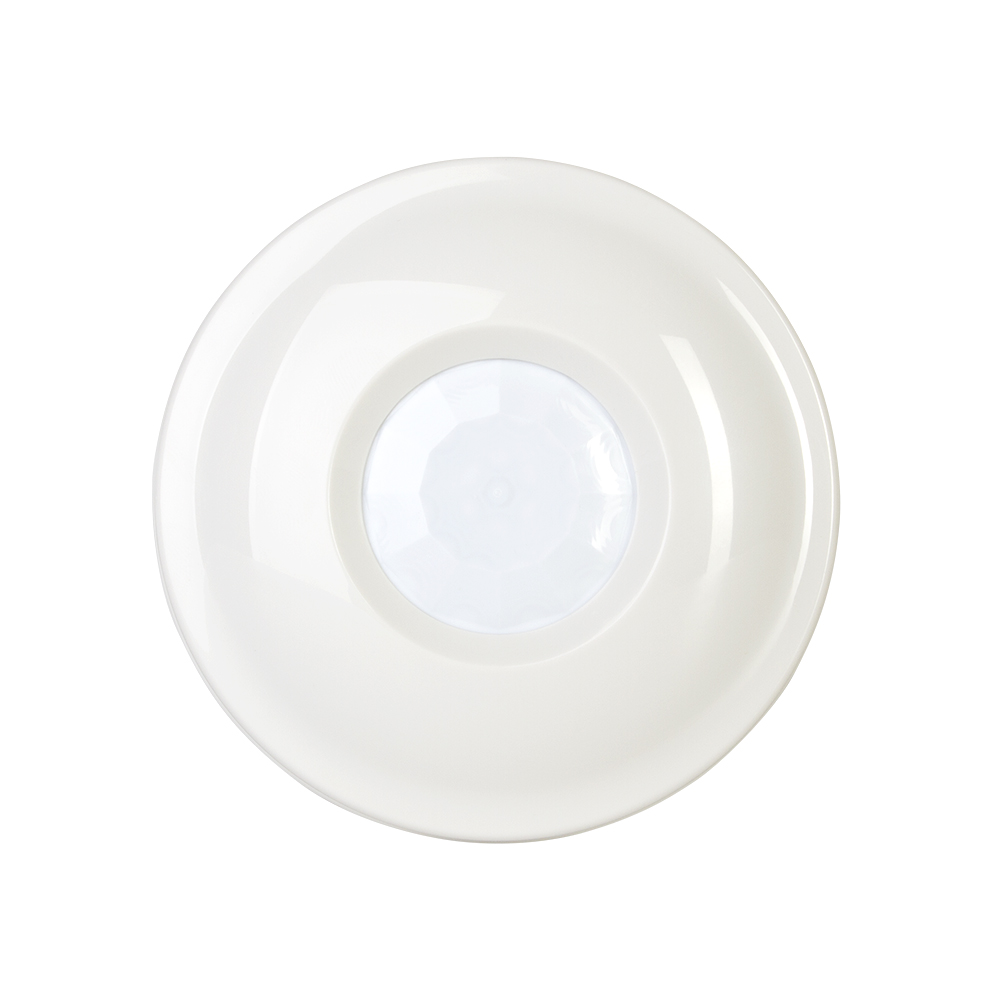

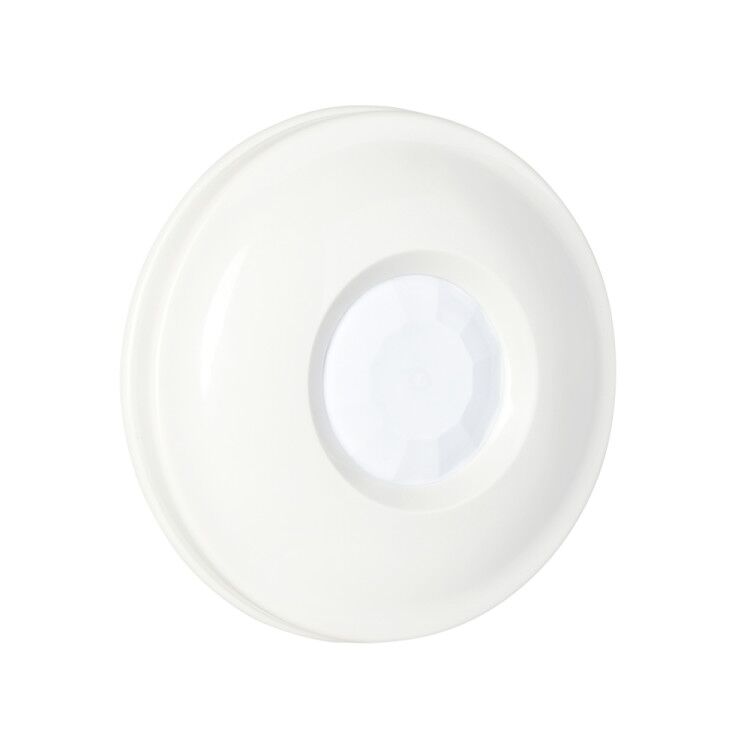

Product Images (the following pictures are close to the object)
