Latest Supplier Mini Smoke Detector Housing
Smoke detector SR-820 series
SR-820PHS Photoelectric Smoke alarm (independent)
SR-820PHM-AC Wired interconnected Photoelectric smoke alarm
SR-820PHW-AC(AC Power& Back up battery) Wireless interconnected smoke alarm
SR-820PHWR-AC(AC Power& Back up battery) Wireless network & interconnected Smoke alarm(wireless network with alarm system and wireless interconnection with group detectors)
SR-820PHR Wireless Photoelectric Smoke alarm
Main Features:
Wired or wireless interconnection function
Wireless network function
Auto-check malfunction
Infrared photoelectric sensor
MCU processing, eliminate false alarm
Photoelectric sensing technology
Dustproof, mothproof, anti-light interference design
Hush function
Lower battery indication
Execute criterion: EN14606; UL217
Technical specification:
Model No. | SR-820PHS | SR-820PHM-AC | SR-820PHW-AC | SR-820PHWR-AC | SR-820PHR |
Operating voltage | 9V battery | AC110/220V(9V backup battery) | AC110/220V(9V backup battery) | 9V battery | |
Interconnection | N/A | Up to 40 pc smoke detectors | Install within the radius of 200 m | N/A | |
Hush function | YES | YES | YES | YES | YES |
Code form | N/A | N/A | 2262 | 2262/1527 | 2262/1527 |
Sending frequency | N/A | N/A | 433MHz | 433MHz/315MHz | 433MHz/315MHz |
Radio distance | N/A | N/A | 200 m(open area) | 200 m(open area) | 200 m(open area) |
Sensitivity | 2.06%ft±1.3%ft | 2.06%ft±1.3%ft | |||
Sound level | 85dB/3m | 85dB/3m | |||
Installation | Wall or Ceiling mounted | Wall or Ceiling mounted | |||
Working environment | -10℃~+50℃(≤95%RH No congelation) | -10℃~+50℃(≤95%RH No congelation) | |||
Dimension | 128*38mm | 128*38mm | |||

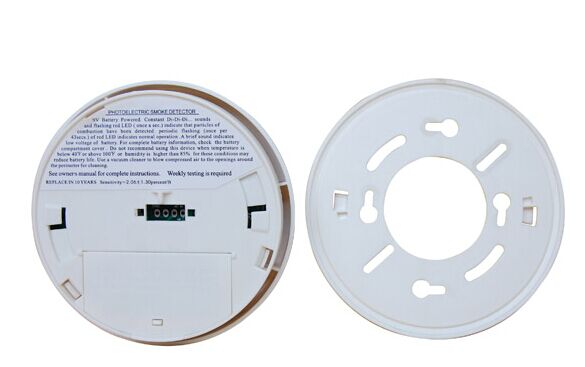

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development.Our conventional detectors and fire alarm accessory can be connected
with other brand of conventional fire alarm control panel such as Honeywell, System sensor,Siemens,
Apollo and Hochiki etc.. It helps client reduce cost and enhance competition,and with our corresponding
monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced fire alarm and security product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in fire alarm & security product. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
Our Certifications

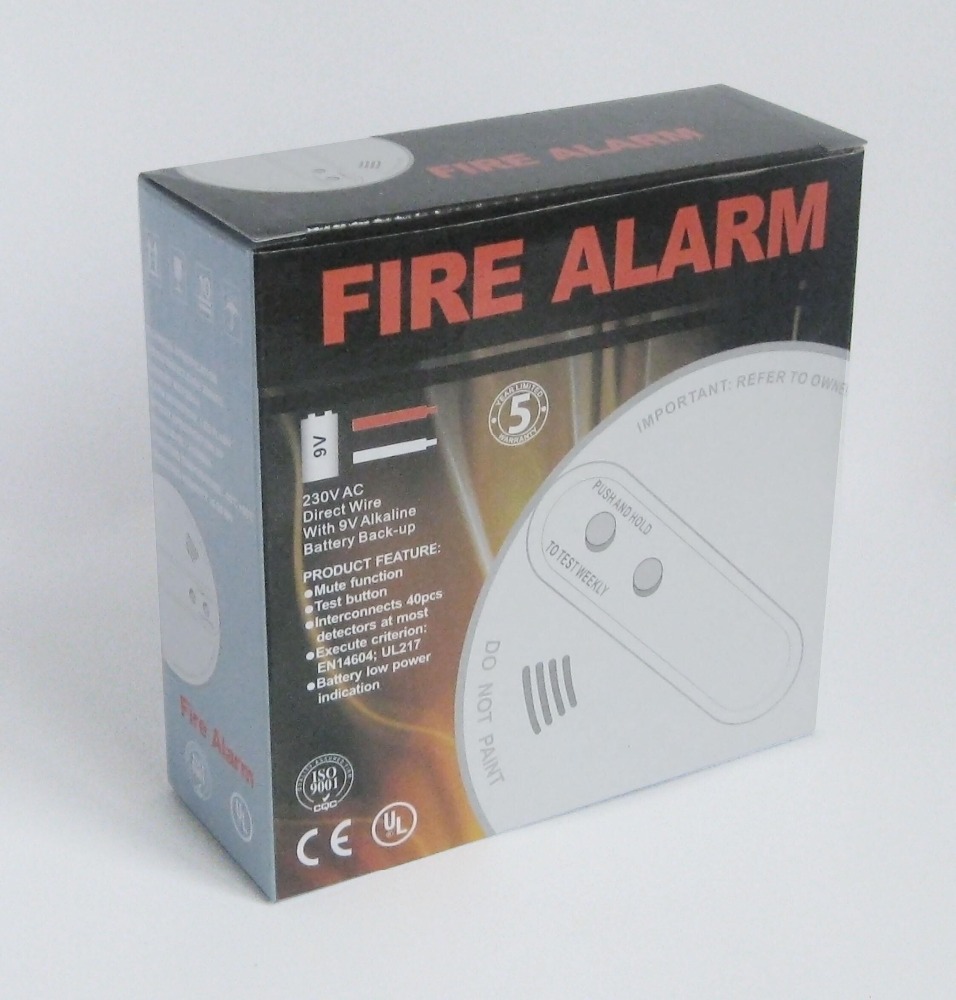

Packaging information
