Cost effective fire alarm system smoke detector

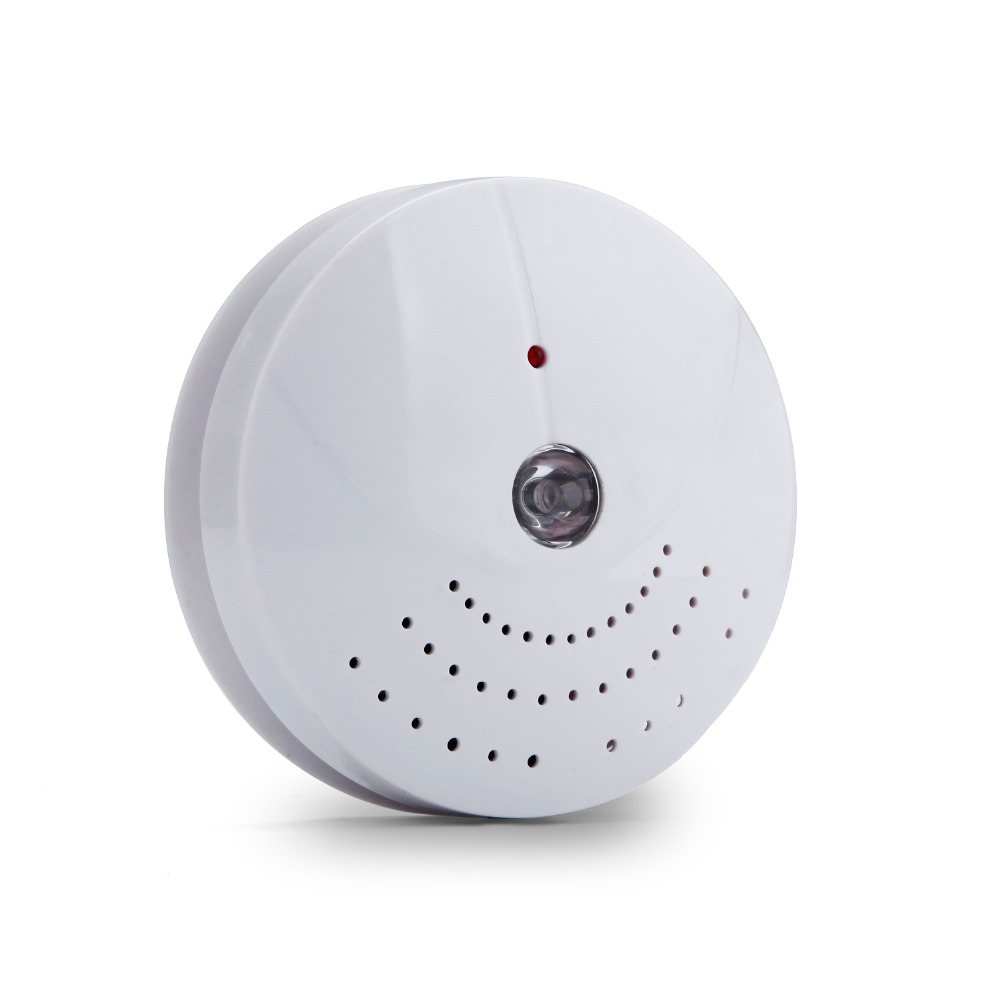

Smoke detector SR-808, 803 series

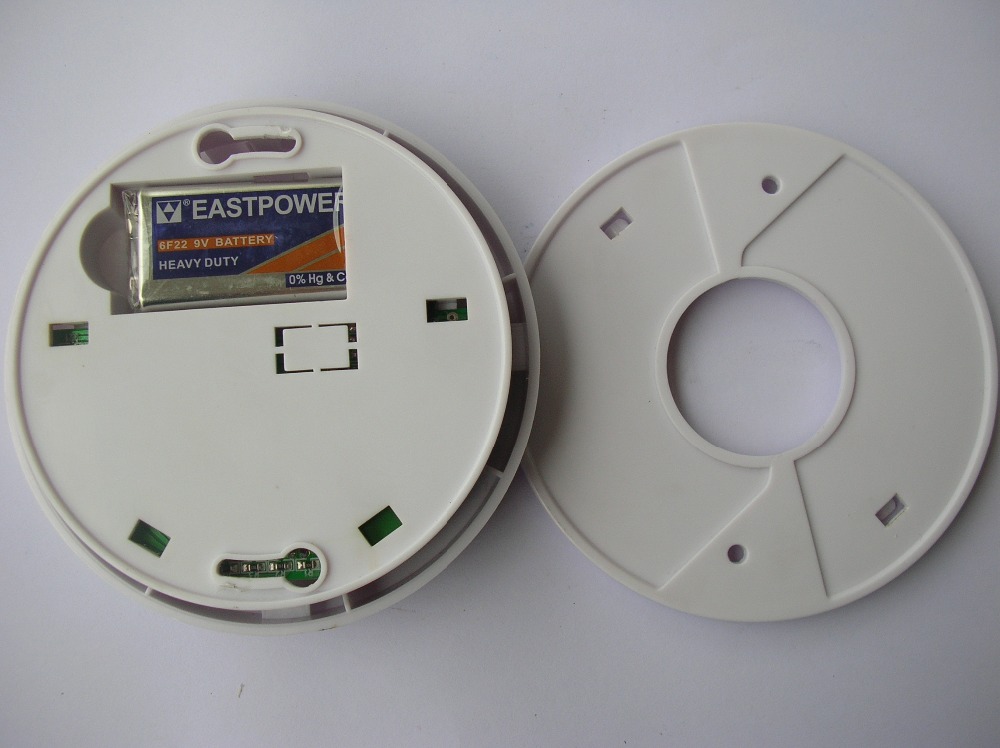

SR-803P/SR-808P: Photoelectric smoke detector (independent)
SR-803PC-4/SR-808P: 4-Wire Network Photoelectric smoke alarm
Main Features:
Power supply non-polar input
Infrared photoelectric sensor
MCU processing, eliminate false alarm
Network relay output/LED indicating alarm
SMT manufacture technology, high stability
Dustproof, mothproof, anti-light interference design
Anti-RFI(20V/m-1GHz)
Execute criterion: UL268, GB4715, EN54-7
Technical specification:
Model No. | SR-803P/SR-808P | SR-803PC-4/SR-808P |
Operating voltage | 9V battery | DC9~16V |
Static current | 12uA | 3mA |
Alarm current | 10mA | 25mA |
Alarm output | Sound &Flash alarm | Relay output& Sound &Flash alarm |
Sound level | 85dB/3m | 85dB/3m |
Installation | Ceiling mounted | Ceiling mounted |
Sensitivity | 2.06%ft±1.3%ft | 2.06%ft±1.3%ft |
Working environment | -10℃~+50℃(≤95%RH No congelation) | -10℃~+50℃(≤95%RH No congelation) |
Dimension | 100*43mm(SR-808) | 100*35mm(SR-803) |
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
