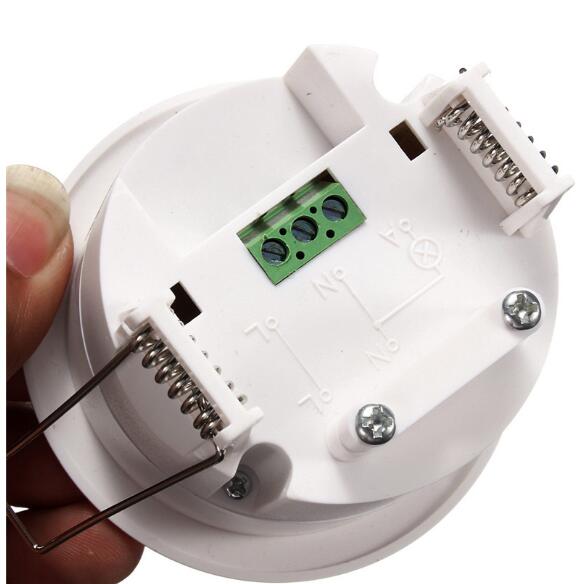

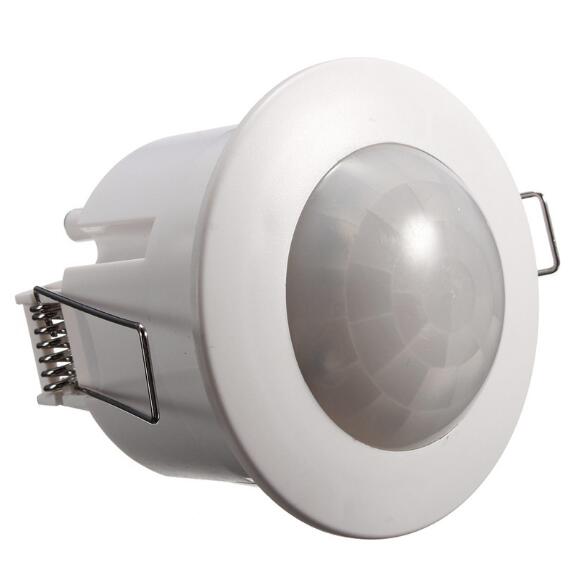

Supplier price mini infrared pir human motion sensor for LED light pir sensor with CE certified
This product is the use of far-infrared sensor to detect infrared rays emitted by the human body
comparison operator, automatically control the lamp light off; turn on the lights by the the imported
chip set lighting time, intelligent control and energy saving. This product is widely used in stairways, basements, toilets and other places, is a new type of energy-saving electronic switch.
Main technical parameters:
Power supply voltage: 220V/AC ~ 240V/AC
Power frequency: 50 ~ 60Hz
Ambient Light: <3LUX to daylight illumination (adjustable, adjustable night mode to 24-hour mode)
Detection range: 8m max
Load power: the principle of resistive electrical resistive 1200W (incandescent), emotional 300W (energy saving lamps, fluorescent lamps, ring tube, LED exhaust fan, alarms, and other appliances) (220V/AC 240V/AC)
Time Delay: min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable)
Detection angle: 360 degree
Operating Temperature: -20 ~ 50 degree
Relative humidity: less than 93% RH
Installation height: 1.5m to 3.5m
Power consumption: 0.45W (static 0.1W)
Detection Motion Speed: 0.6 to 1.5m / s
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
