China Manufacturer combustible gas detector work with Solenoid valve or Exhaust Fan
Tips:Welcome to our shop, I"m sorry, there are many types of the product in this series, if you would like to, please contact us anytime, we can help you recommend the type you want. We guarantee to make you satisfied,thanks a lot !
(Green font is the type recommended for you in this Web page)
Gas detector:
| Gas detector SR-901 Series | |
| SR-901NS | combustible gas detector |
| SR-901NV | combustible gas detector, work with Solenoid valve or Exhaust Fan |
| SR-901NR | combustible gas detector, Wireless, Radio Signal Output |
| SR-901NVC-DC | combustible gas detector, network, DC power supply, work with Solenoid valve |
| SR-901CS | Carbon monoxide detector |
| SR-901CV | Carbon monoxide detector, work with Solenoid valve or Exhaust Fan |
| SR-901CR | Carbon monoxide detector, Wireless, Radio Signal Output |
| SR-901CN-AC | Carbon monoxide detector, Network, AC power supply, work with Solenoid valve or Exhaust Fan |
| SR-901CN-DC | Carbon monoxide detector, Network, DC power supply, work with Solenoid valve or Exhaust Fan |
| SR-901DS | Gas &CO combination detector |
| SR-901DV | Gas &CO combination detector, work with Solenoid valve or Exhaust Fan |
| SR-901DR | Gas &CO combination detector, Wireless, Radio Signal Output |
| SR-901DN-AC | Gas &CO combination detector, Network, AC power supply, work with Solenoid valve or Exhaust Fan |
| SR-901DN-DC | Gas &CO combination detector, Network, DC power supply, work with Solenoid valve or Exhaust Fan |
Technical specification:
| Operating voltage | AC100V-240V or DC12-24V (DC power supply type) |
| Gas species | Natural gas&LPG/ CO/ Natural gas&LPG&CO |
| Alarm output | Sound&LED flash alarm(independent type)/ Relay output&Sound &LED flash alarm(network type)/Wireless transmission &Sound &LED flash alarm(wireless type) |
| Radio frequency | 433Mhz/315Mhz(wireless type) |
| Drivable accessories | Solenoid valve or Exhaust Fan |
| Rated power | 2.5W |
| Alarm level | Natural gas:10%±5% LEL CO: 150PPM±80PPM |
| Sound level | ≥75dB/m |
| Installation | Wall mounted |
| Working environment | -10ºC~+50ºC(≤95%RH No congelation) |
| Dimension | 115*72*41mm |

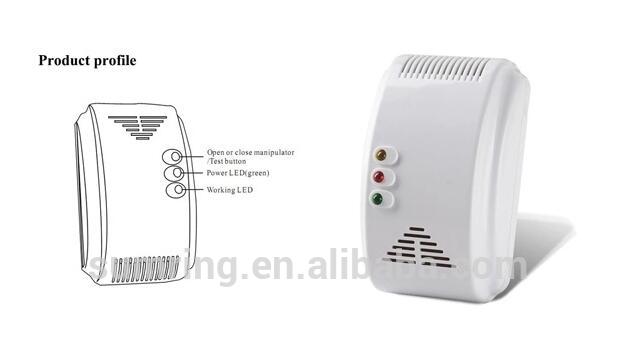

Product Pictures:

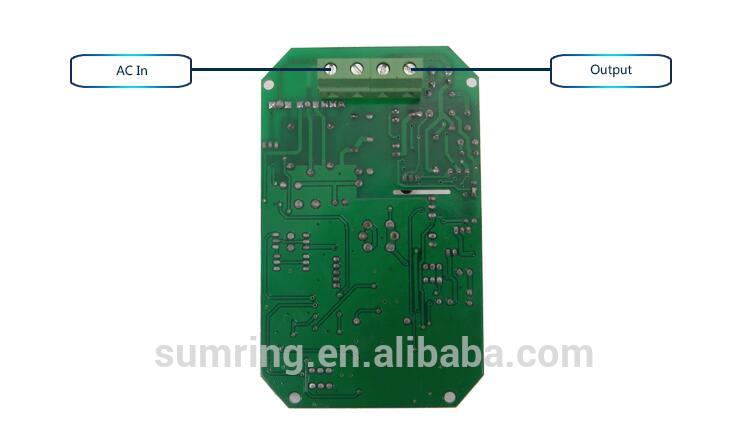

Terminal block figure:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
