wireless curtain PIR infrared detector for residential safety device
PIR Detector:

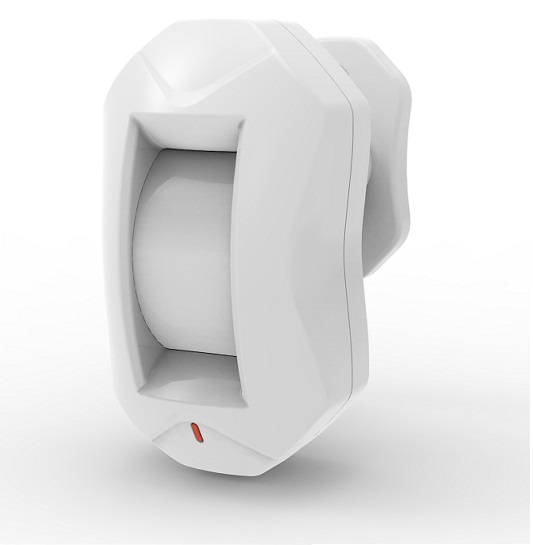

SR-606CR Wireless Curtain PIR Detector
PRODUCT INTRODUCTION
This product is the wireless curtain PIR detector. Hereinafter be called the detector. It adopts advanced technology in signal processing and provides superhigh detection and anti false alarm performance, which ensures its stability in design. Any intruder passing through the detecting area, it will automatically detect the body movement. Any dynamic movement, it will send the alarm signal to the mainframe. This product is suitable for the safety in residential areas, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
Screwing-type mounting bracket, more stable
Adjustable detecting distance
Auto temperature compensation
Low power indication
Tamper alarm function
Alarm delay optional
Anti RF(20V/m -1GHz)
Wireless signal output
Low power consumption design
SMT process, anti-RFI, anti-EMI
Technical specification:
Operating voltage:DC3V (2*AA battery)
Static current:≤25uA
Alarm current: ≤25mA
Battery life:1 year
Detect distance:optional(2m, 4m, 9m)
Detect angle:15°
Auto-check time:30 sec,
Alarm indicator :red LED
Low power indicator :yellow LED
Operating temp.: -10℃~+50℃
Ambient humidity:≤95%RH(no congelation)
Installation height:1.7~-2.5m
Transmitting frequency:315M or 433M
Transmitting distance:≥100m (open area)
Outline size:100*55*47.5*mm
Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development.Our conventional detectors and fire alarm accessory can be connected
with other brand of conventional fire alarm control panel such as Honeywell, System sensor,Siemens,
Apollo and Hochiki etc.. It helps client reduce cost and enhance competition,and with our corresponding
monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced fire alarm and security product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in fire alarm & security product. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
