Sumring 315mhz wireless curtain pir motion detector for security alarm systemion detector
Product introductton:

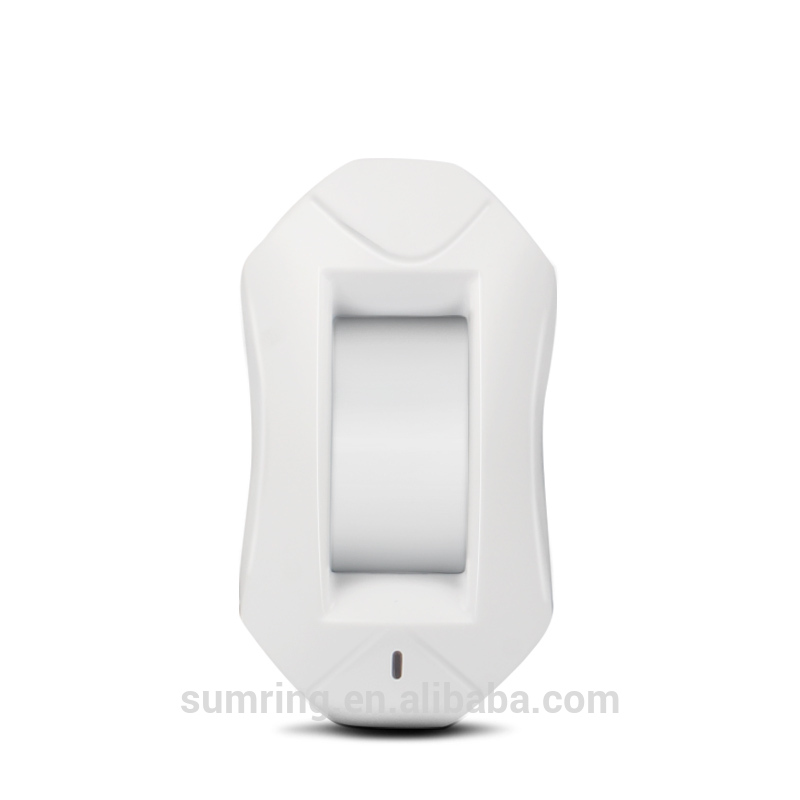

SR-606CR Wireless Curtain PIR Detector
This product is the wireless curtain PIR detector. Hereinafter be called the detector. It adopts advanced technology in signal processing and provides superhigh detection and anti false alarm performance, which ensures its stability in design. Any intruder passing through the detecting area, it will automatically detect the body movement. Any dynamic movement, it will send the alarm signal to the mainframe. This product is suitable for the safety in residential areas, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
| Screwing-type mounting bracket, more stable |
| Adjustable detecting distance |
| Auto temperature compensation |
| Low power indication |
| Tamper alarm function |
| Alarm delay optional |
| Anti RF(20V/m -1GHz) |
| Wireless signal output |
| Low power consumption design |
| SMT process, anti-RFI, anti-EMI |
Technical specification:
| Operating voltage | DC3V (2*AA battery) |
| Static current | ≤25uA |
| Alarm current | ≤25mA |
| Battery life | 1 year |
| Detect distance | optional(2m, 4m, 9m) |
| Detect angle | 15° |
| Auto-check time | 30 sec |
| Alarm indicator | red LED |
| Low power indicator | yellow LED |
| Operating temp | -10℃~+50℃ |
| Ambient humidity | ≤95%RH(no congelation) |
| Installation height | 1.7~-2.5m |
| Transmitting frequency | 315M or 433M |
| Transmitting distance | ≥100m (open area) |
| Outline size | 100*55*47.5*mm |
Product Pictures:
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
