Ceiling mounted photoelectric 2 wire- 3 wire smoke detector
| SR-815PC-2 is 2 wire smoke detector |
| Power supply non-polar input |
| Infrared photoelectric sensor |
| MCU processing, eliminate false alarm |
| Network relay output / LED indicating alarm |
| SMT manufacture technology, high stability |
| Dustproof, mothproof, anti-light interference design |
| Stainless steel shield in chamber, anti-RFI(20V/m-1GHz) |
| Execute criterion: GB4715, EN54-7 |
| Design Patent No.:20103069320.2 |
Technical specification:
Model NO. | SR-815PC-2
|
Operating voltage | DC9-35V |
Static current | 20uA
|
Alarm current | 35mA@DC12V;83m@DC24V
|
Alarm output | Remote LED indicator
|
Installation | Ceiling mounted |
Sensitivity | 0.15dB/m(±0.03dB/M) |
Working environment | -10℃~+50℃,(≤95%RH No congelation) |
Dimension | Φ100*50mm |

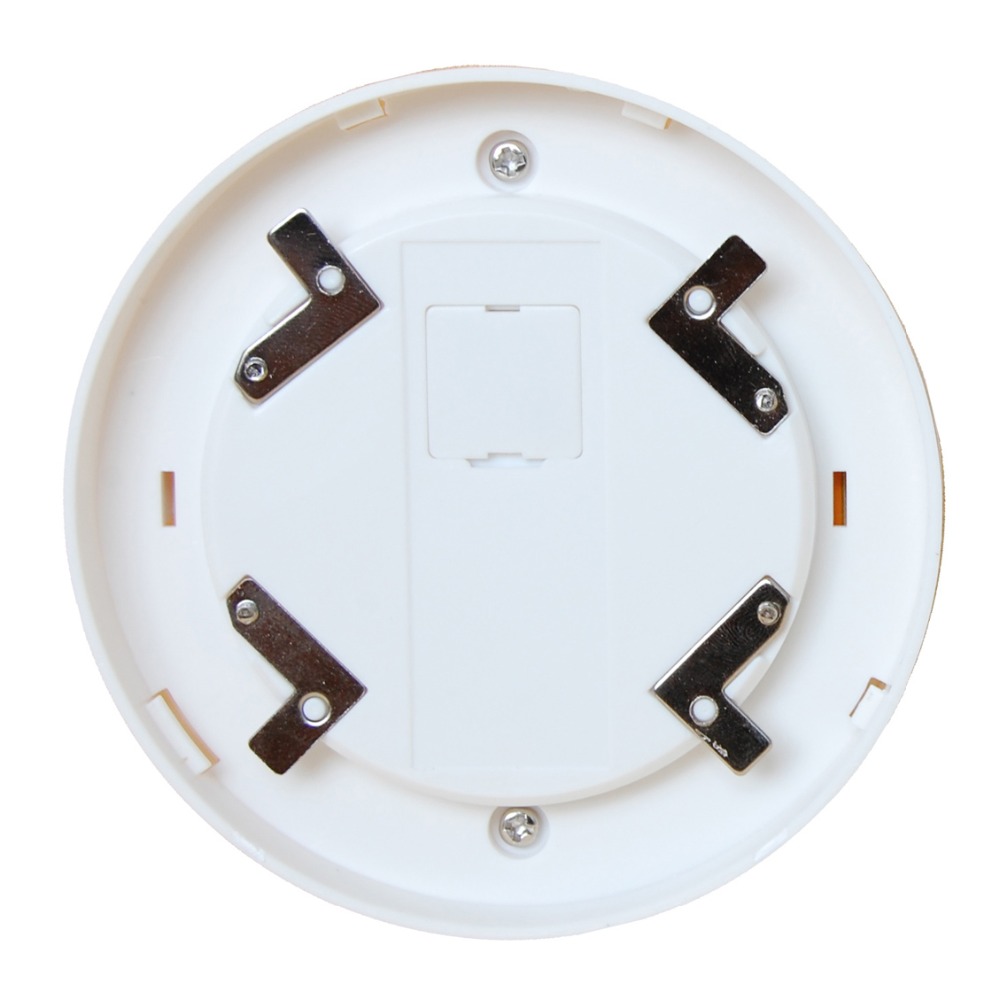

Product Pictures
