Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-605DTP
- Usage:
- security system
- Name:
- Pet Immunity Dual Technology Motion Detector With Microwave Detection
- Operating voltage:
- DC9V-24V
- Current consumption:
- ≤30mA
- Alarmindicator:
- Green: infrared triggered, Yellow:microwave triggered, Red:Alarm
- Tamper output:
- NC, contact DC28V 100mA
- Alarm output:
- NC/NO optional, contact DC28V 100mA
- Detecting distance:
- 12m
- Self-testing time:
- 60s
- Pet immunity:
- 20kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12.5X6.4X4.8 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or neutral color box

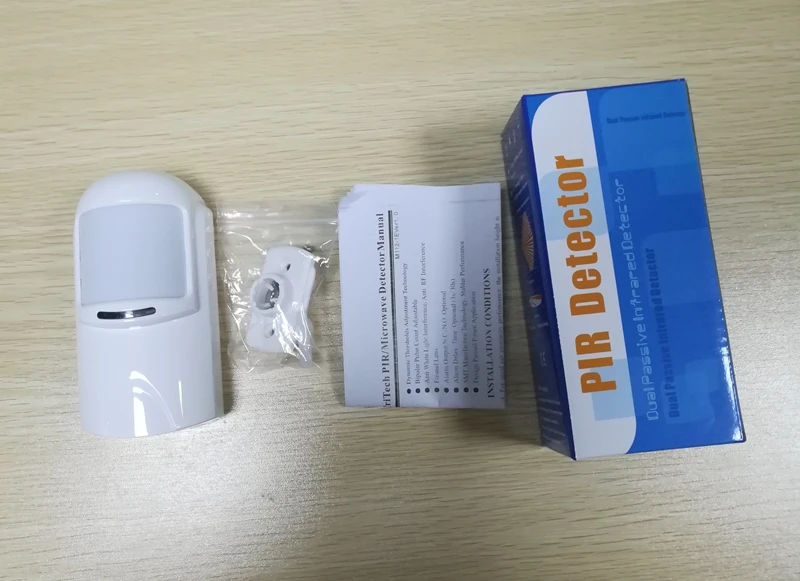

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 12 To be negotiated
Pet Immunity Dual Technology Motion Detector With Microwave Detection
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5
Technical specification:
Model NO. | SR-605DTP |
Operating voltage | DC9V-24V |
Current consumption | ≤30mA |
Alarm indicator | Green: infrared triggered, Yellow:microwave triggered, Red:Alarm |
Tamper output | NC, contact DC28V 100mA |
Alarm output | NC/NO optional, contact DC28V 100mA |
Alarm time | 0.3m/s - 3m/s |
Self-testing time | 60s |
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator |
Pet immunity | 20kg |
Detecting angle | 90° |
Detecting distance | 12m |
Installation | Wall or corner mounted |
Working environment | -10℃~+50℃,(≤95%RH No congelation) |
Dimension | 123*62*46mm |

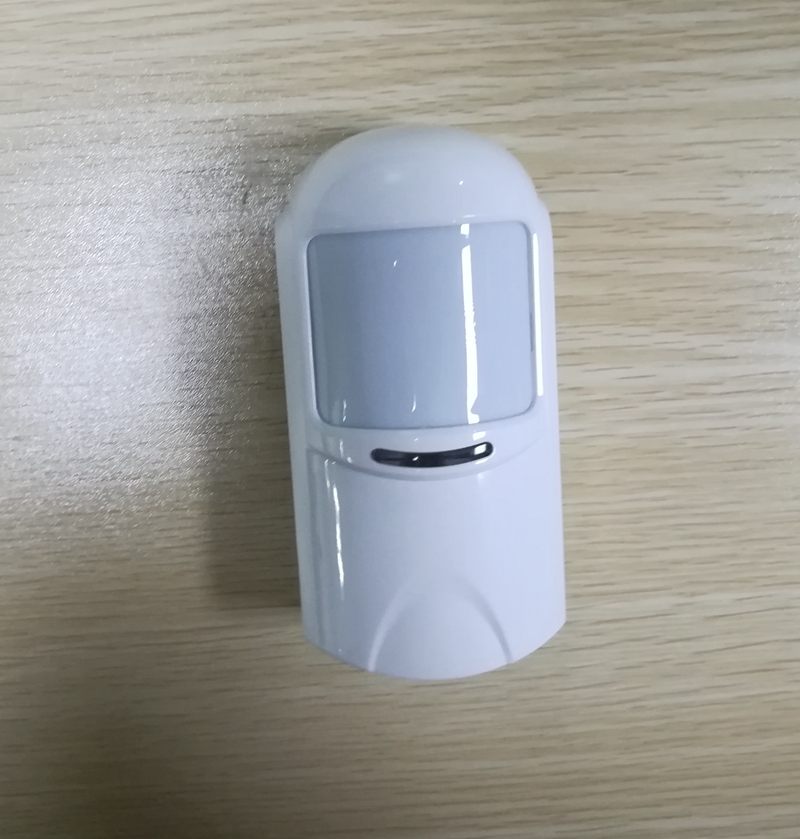

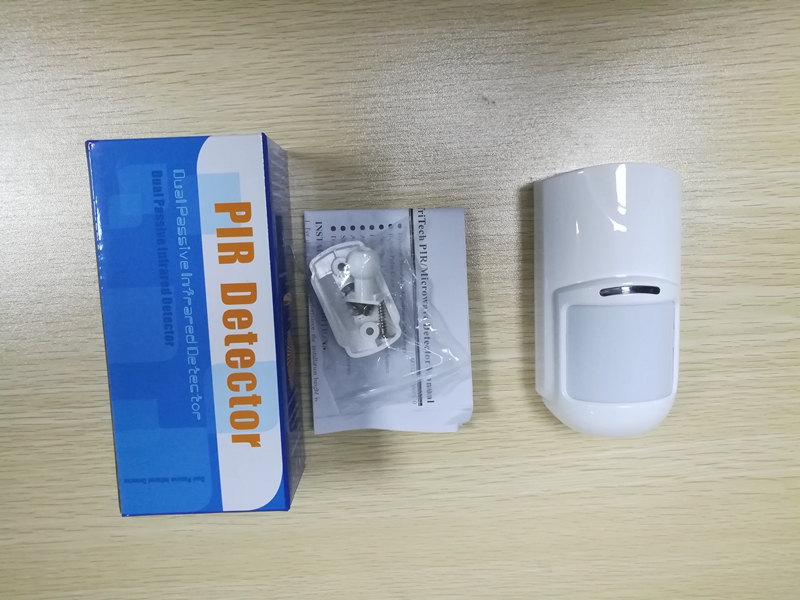

Product show:
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
