Hot selling PET Immune Wired PIR motion detector
PIR Detector:
SR-605W Wide angle PIR motion detector
SR-605WP Wide Angle Pet immune PIR Detector
SR-605DTP Pet FriendlyTri-Tech PIR/Microwave Motion Detector
PRODUCT INTRODUCTION
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
MCU processing, anti-false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference(20V/m-1GHz)
Fresnel lens
Wall / corner mounted
Alarm output NC / NO optional
SMT manufacture technology
Execute criterion: GB10408.1, GB10408.5
Technical specification:
Model NO. | SR-605W | SR-605WP | SR-605DTP |
Operating voltage | DC9V-24V | ||
Current consumption | ≤18mA | ≤18mA | ≤30mA |
Alarm indicator | Red LED | Red LED | Green: infrared triggered, Yellow:microwave triggered, Red:Alarm |
Tamper output | NC, contact DC28V 100mA | ||
Alarm output | NC/NO optional, contact DC28V 100mA | ||
Alarm time | 0.3m/s - 3m/s | ||
Self-testing time | 60s | ||
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator | ||
Pet immunity | N/A | 12kg | 20kg |
Detecting angle | 110° | 110° | 90° |
Detecting distance | 12m | ||
Installation | Wall or corner mounted | ||
Working environment | -10℃~+50℃,(≤95%RH No congelation) | ||
Dimension | 123*62*46mm | ||

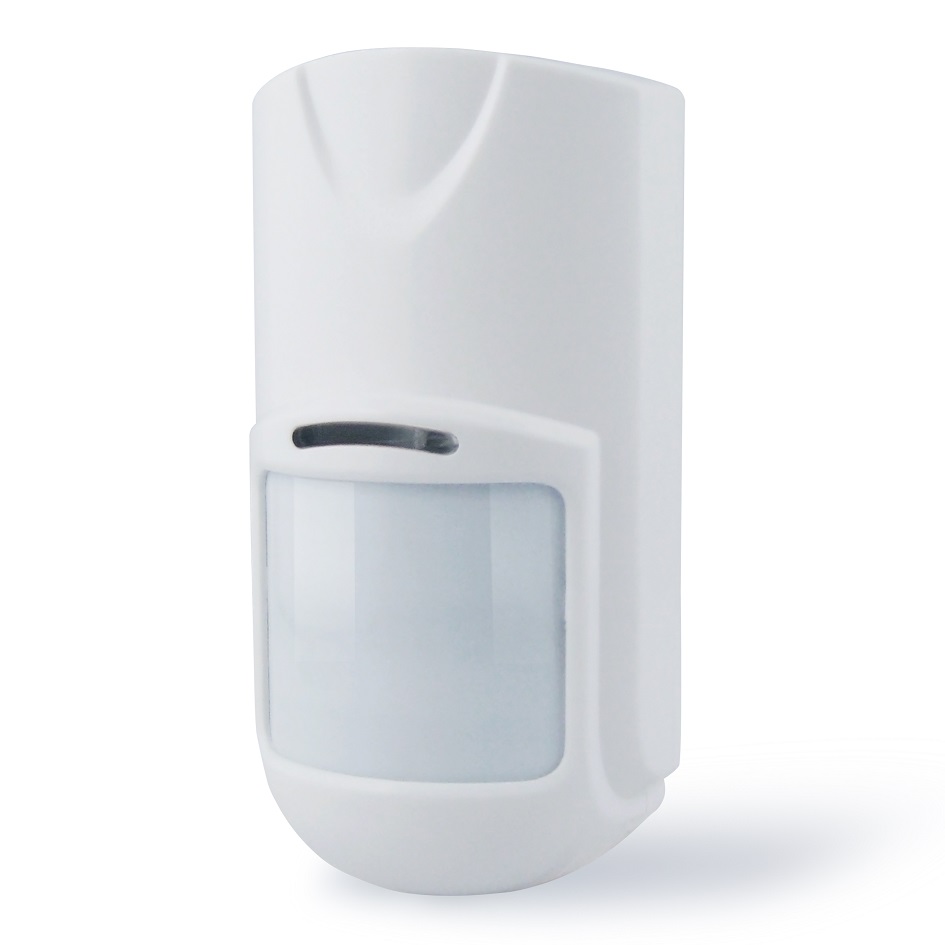

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development.Our conventional detectors and fire alarm accessory can be connected
with other brand of conventional fire alarm control panel such as Honeywell, System sensor,Siemens,
Apollo and Hochiki etc.. It helps client reduce cost and enhance competition,and with our corresponding
monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced fire alarm and security product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in fire alarm & security product. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
