Bluetooth 4.1 Multimedia Module SR-BM20SPK01
SR-BM20SPK01
The SR-BM20SPK01 is a highly integrated Bluetooth 4.1 stereo module, designed for high data rate, short range wireless commnicatation in the 2.4 Ghz ISM band. With the built-in ISSC Bluetooth stack, profile and sound effect, the SR-BM20SPK01 can provide high performance Bluetooth audio
Main features:
Main Chip:ISSC IS2020S
Bluetooth 4.1 EDR compliant
Max. +4dBm Class 2 output power
Receiver Sensitivity: GFSK typical -88dBm, π/4 PSK typical -89dBm 8DPSK typical -83dBm
Piconet and Scatter net support
CVSD, A-law, -law, mSBC CODEC algorithms for voice applications
SBC/AAC decode for Bluetooth audio streaming
Microphone input and audio line-in support
Built-in four language voice prompt (Chinese/English/Spanish/French)
Built-in 350mAH Li-ion battery charger
HSP, HFP, A2DP, AVRCP,SPP profiles supported
3.3V operating voltage
Built-in program ROM and 64Kb EEPROM
4 pins for SMT module Size: 15mmx29mm
Built-in PCB Antenna
RoHS compliant

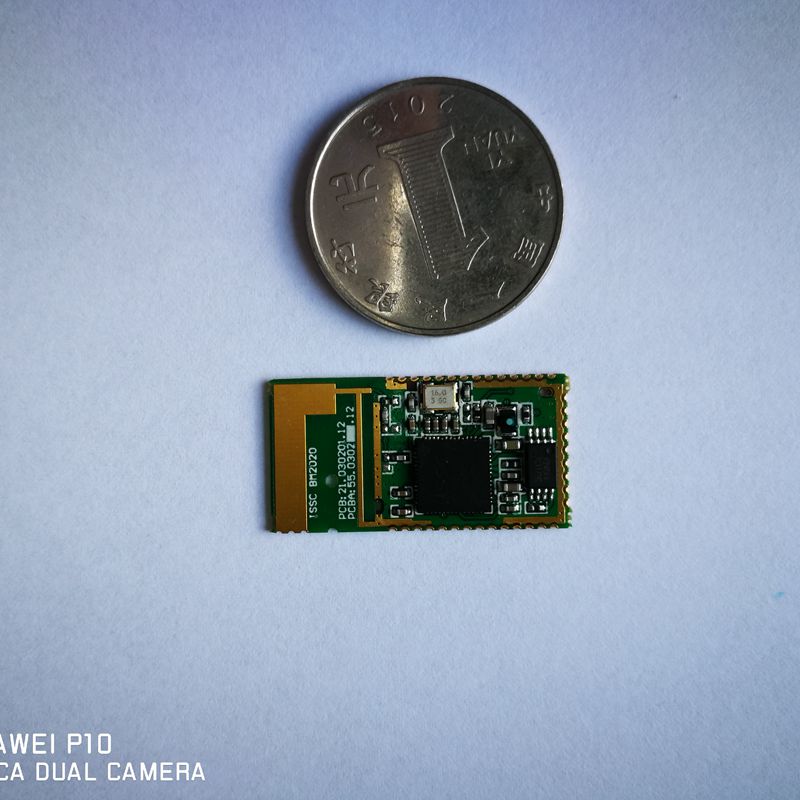

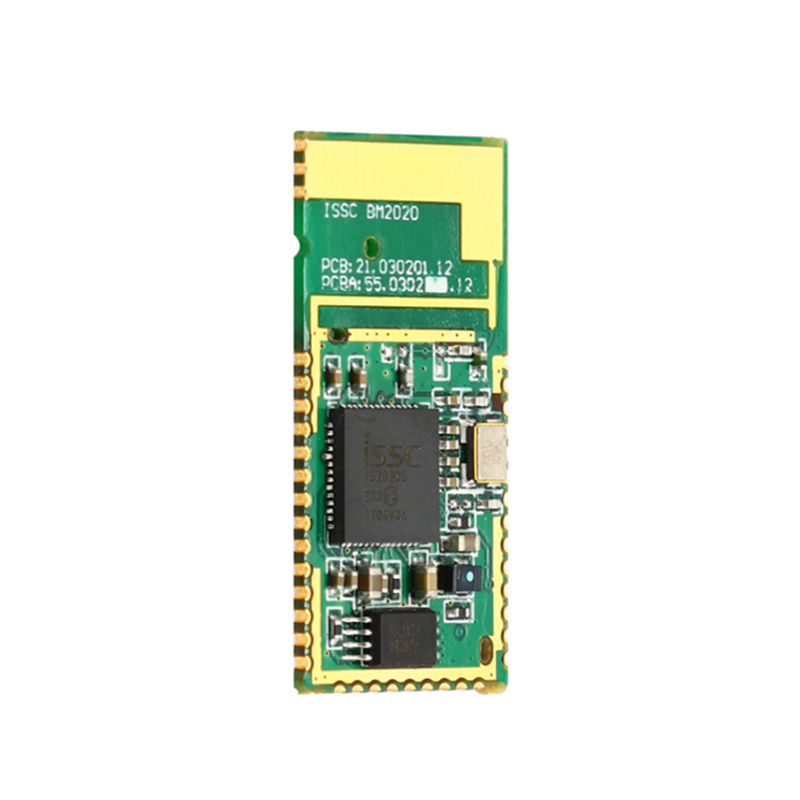

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 Stereo Speaker, covering ISSC and Nodic chip;
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development. It helps client reduce cost and enhance competition,and with our corresponding monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced security and bluetooth product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in this area. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
