- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-825PHS
- name:
- 10 years battery operated stand alone photoelectric smoke alarm
- color:
- white
- Operating voltage:
- 3V lithium battery
- Static current:
- 8uA
- Alarm current:
- 35mA
- Alarm output:
- Sound & Flash alarm
- Sound level:
- 85dB/3m
- Installation:
- Ceiling mounted
- Sensitivity:
- 1.8%ft±0.8%ft
- Dimension:
- 95.5*41mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 11.5X11.5X6.1 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or neutral color box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 15 To be negotiated

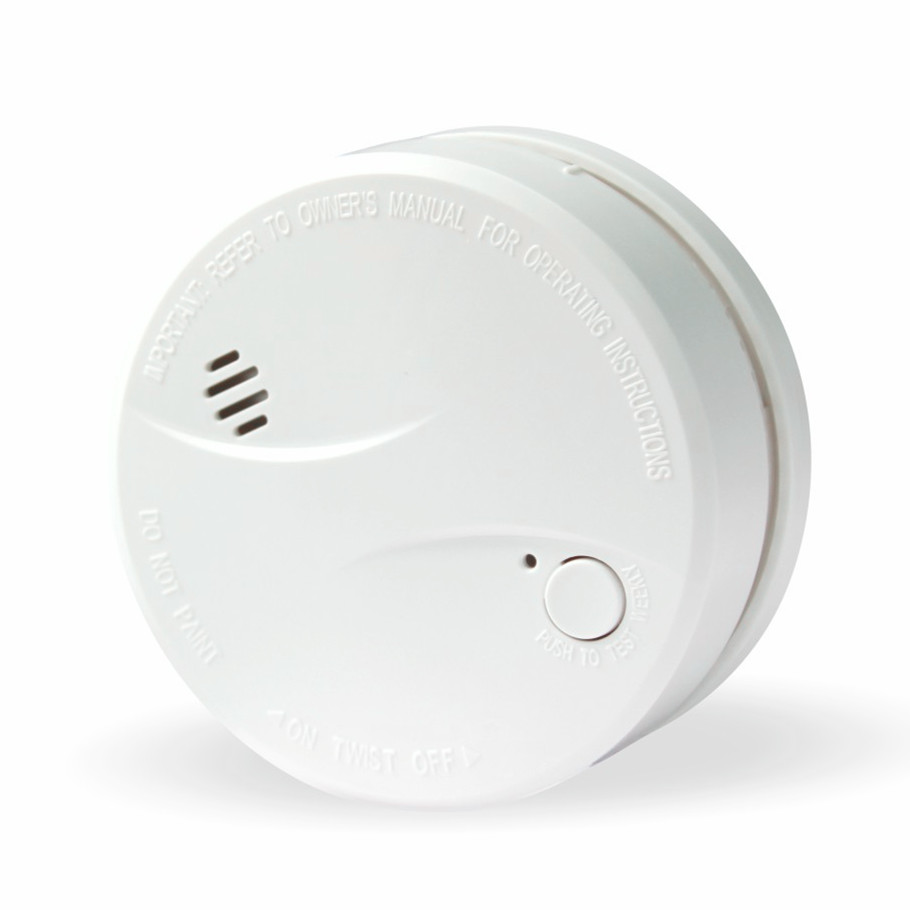

10 years battery operated stand alone photoelectric smoke alarm with LPCB EN and AS 3786 approval
SR-825PHS Smoke Alarm with TEN-YEAR lifetime
Technical specification:
Model NO. | SR-825PHS |
Operating voltage | 3V lithium battery |
Static current | 8uA |
Alarm current | 35mA |
Alarm output | Sound & Flash alarm |
Sound level | 85dB/3m |
Installation | Ceiling mounted |
Sensitivity | 1.8%ft±0.8%ft |
Working environment | -10℃~+50℃,(≤95%RH No congelation) |
Dimension | 95.5*41mm |
Main Features:
> Battery Operated
Long-life lithium-ion battery sealed in the alarm to lengthen its lifetime to 10 years in standby condition.
> Operating Light (LED)
Flashes approximately every 53 seconds confirming unit is powered.
> Low Battery Warning
Alarm beeps every 40 seconds when the battery needs replacing.
>Alarm Pause (Hush mode)
Silence your smoke alarm by momentarily pressing the test button when non-emergency smoke (e.g. steam), causes nuisance alarms. The red light flashes every 10 seconds to remind you that the smoke alarm has been silenced. The alarm will automatically reset after 15 minutes.
>Sensitivity Test Button
Test the sensitivity, circuitry, batteries, horn.
>Loud 85 Decibel Piezo Electric Alarm
Automatically resets when hazardous condition has passed.
>Easy Installation
Fixings supplied.
