- Model Number:
- SR-BM25SPK01
- Brand Name:
- SUMRING
- Place of Origin:
- China
- Name:
- IS2025 bluetooth audio module Bluetooth 4.1 Multimedia Module
- Main Chip::
- ISSC IS2025S
- Bluetooth:
- 4.1 EDR compliant
- output power:
- Max. +4dBm Class 2
- profiles support:
- HSP, HFP, A2DP, AVRCP,SPP
- support:
- Microphone input and audio line-in
- Bluetooth audio streaming:
- SBC/AAC decode
- language voice prompt:
- Built-in four language voice prompt (Chinese/English/Spanish/French)
- operating voltage:
- 3.3V
- Size:
- 15mmx29mm2
- Supply Ability:
- 20000 Piece/Pieces per Week
- Packaging Details
- white box
- Port
- Shenzhen
- Lead Time:
- 30 days
IS2025 bluetooth audio module Bluetooth 4.1 Multimedia Module
Product Description
SR-BM25SPK01
The SR-BM25SPK01is a highly integrated Bl uetooth 4.1 stereomodule with built-in 2-ch 2.3W class-D amplifier, designed for high data rate,short-range wireless communication in the 2.4 GHz ISM band. With thebuilt-in ISSC Bluetooth stack, profile and sound effect, theSR-BM25SPK01can provide high performance Bluetooth audio.
Main features:
- Main Chip:ISSC IS2025S
- Bluetooth 4.1 EDR compliant
- Max. +4dBm Class 2 output power
- Receiver Sensitivity: GFSK typical-88dBm, π/4 PSK typical-89dBm,8DPSK typical-83dBm.
- Piconet and Scatter net support
- CVSD, A-law,-law, mSBC CODEC algorithms for voice applications
- SBC/AAC decode for Bluetooth audio streaming
- Microphone input and audio line-in support
- Built-in four language voice prompt (Chinese/English/Spanish/French)
- Built-in 350mAH Li-ion battery charger
- HSP, HFP, A2DP, AVRCP,SPP profiles supported
- 3.3V operating voltage
- Built-in program ROM and 64Kb EEPROM

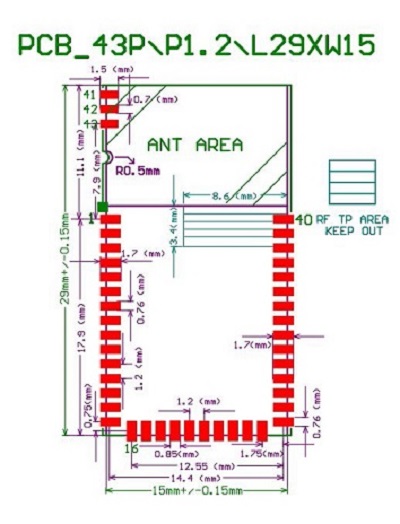

- 45 pins for SMT module Size:15mmx29mm
- Built-in PCB Antenna
- RoHS compliant

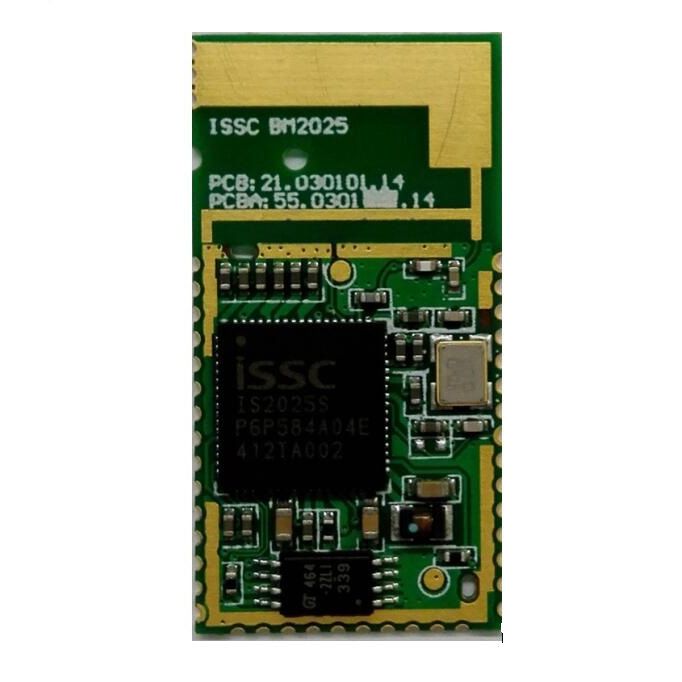

Product Pictures
