mini bluetooth 4.1 module ISSC IS2025S
Product Description
SR-BM25SPK01
The SR-BM25SPK01is a highly integrated Bluetooth 4.1 stereomodule with built-in 2-ch 2.3W class-D amplifier, designed for high data rate,short-range wireless communication in the 2.4 GHz ISM band. With thebuilt-in ISSC Bluetooth stack, profile and sound effect, theSR-BM25SPK01can provide high performance Bluetooth audio.
Main features:
- Main Chip:ISSC IS2025S
- Bluetooth 4.1 EDR compliant
- Max. +4dBm Class 2 output power
- Receiver Sensitivity: GFSK typical-88dBm, π/4 PSK typical-89dBm,8DPSK typical-83dBm.
- Piconet and Scatter net support
- CVSD, A-law,-law, mSBC CODEC algorithms for voice applications
- SBC/AAC decode for Bluetooth audio streaming
- Microphone input and audio line-in support
- Built-in four language voice prompt (Chinese/English/Spanish/French)
- Built-in 350mAH Li-ion battery charger
- HSP, HFP, A2DP, AVRCP,SPP profiles supported
- 3.3V operating voltage
- Built-in program ROM and 64Kb EEPROM

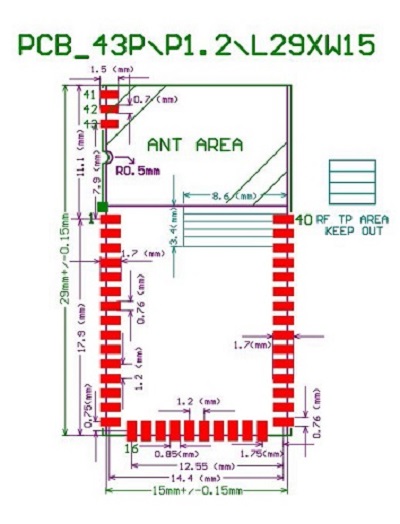

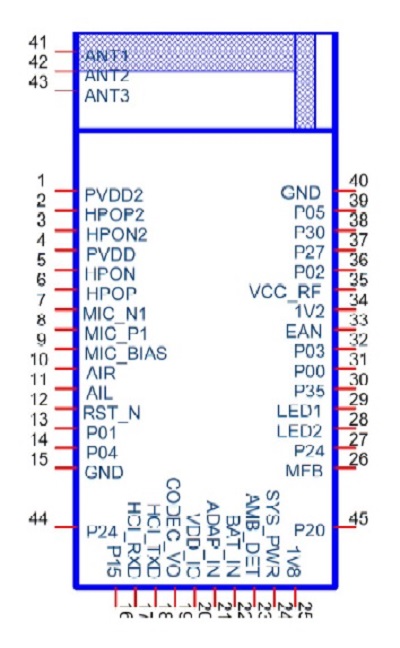

- 45 pins for SMT module Size:15mmx29mm
- Built-in PCB Antenna
- RoHS compliant
Product Pictures
