Bluetooth 4.0 module with IS2020 a2dp for bluetooth speaker module
SR-BM20SPK01
The SR-BM20SPK01 is a highly integrated Bluetooth 4.1 stereo module, designed for high data rate, short range wireless commnicatation in the 2.4 Ghz ISM band. With the built-in ISSC Bluetooth stack, profile and sound effect, the SR-BM20SPK01 can provide high performance Bluetooth audio
Main features:
Main Chip:ISSC IS2020S
Bluetooth 4.1 EDR compliant
Max. +4dBm Class 2 output power
Receiver Sensitivity: GFSK typical -88dBm, π/4 PSK typical -89dBm 8DPSK typical -83dBm
Piconet and Scatter net support
CVSD, A-law, -law, mSBC CODEC algorithms for voice applications
SBC/AAC decode for Bluetooth audio streaming
Microphone input and audio line-in support
Built-in four language voice prompt (Chinese/English/Spanish/French)
Built-in 350mAH Li-ion battery charger
HSP, HFP, A2DP, AVRCP,SPP profiles supported
3.3V operating voltage
Built-in program ROM and 64Kb EEPROM
4 pins for SMT module Size: 15mmx29mm
Built-in PCB Antenna
RoHS compliant

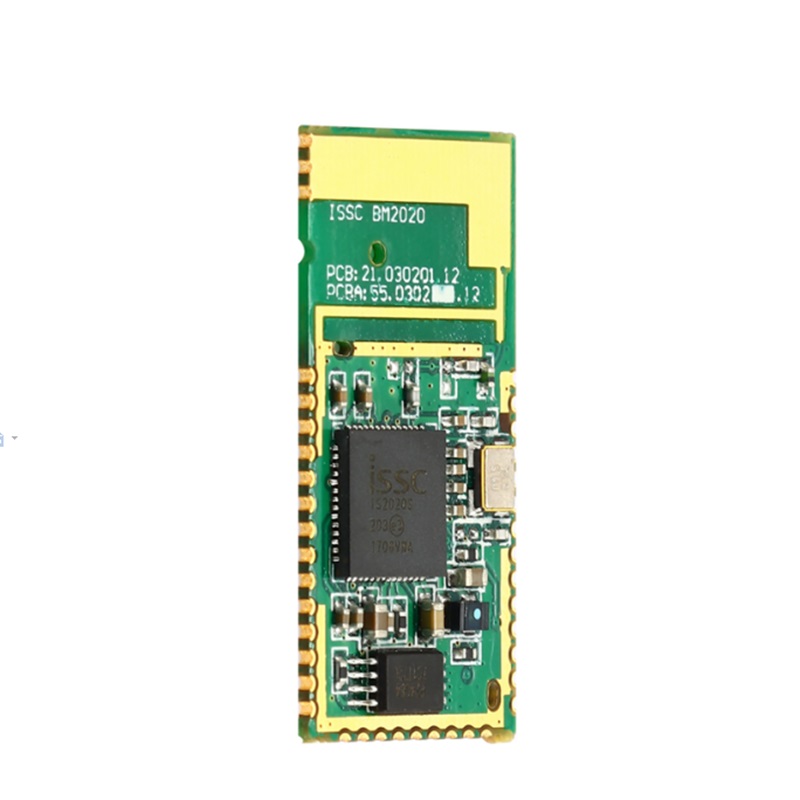

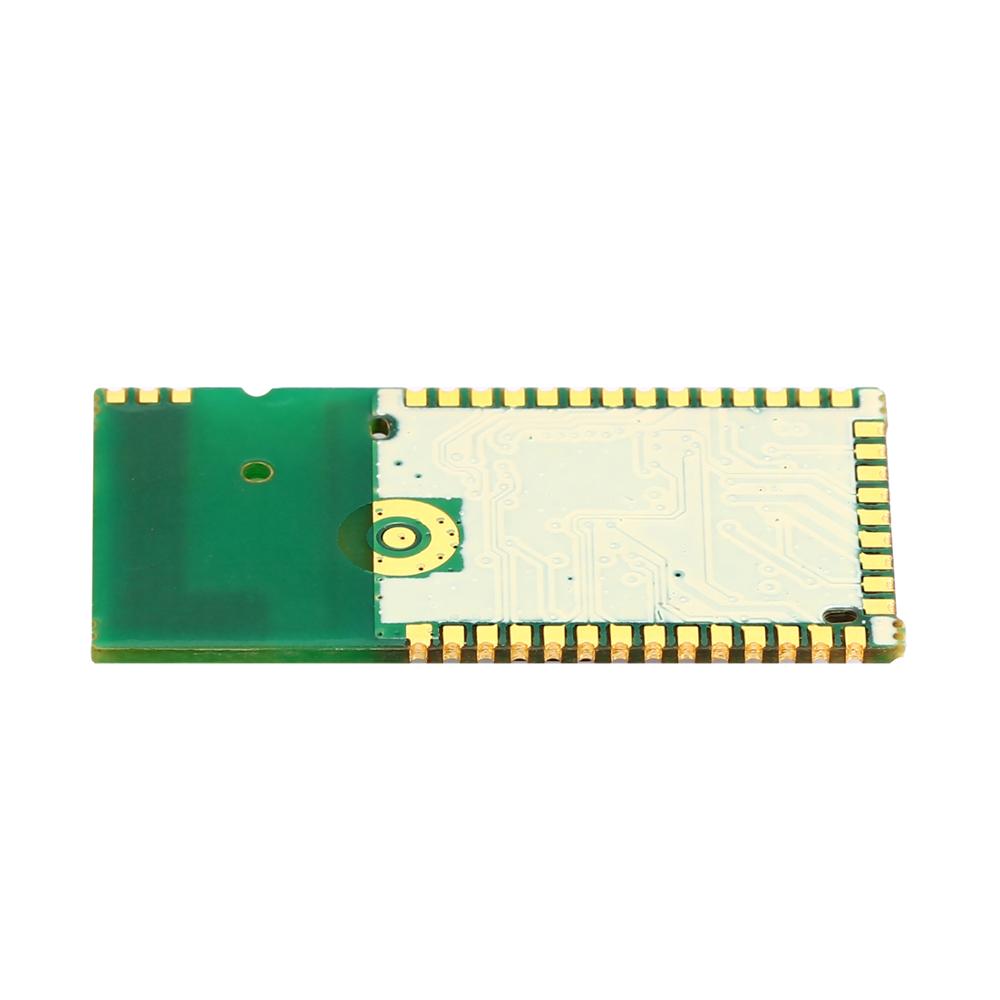

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 Stereo Speaker, covering ISSC and Nodic chip;
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development. It helps client reduce cost and enhance competition,and with our corresponding monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
