Hot sales supplier available CC2541 CC2540/CC2541 ibeacon low-power sleep modules
Product Description
SR-BM03BLE01
The SR-BM03BLE01 module is a cost-effective, low-power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The Module combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The Module is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.
Main features:
1, Main Chip: CC2541
2, Supports 250-kbps, 500-kbps, 1-Mbps, 2-Mbps Data Rates
3, Excellent Link Budget, Enabling Long- Range Applications Without External Front End
4, Programmable Output Power up to 0 dBm
5, Excellent Receiver Sensitivity (–94 dBm at 1 Mbps), Selectivity, and Blocking Performance
6, Low Power
Active-Mode RX Down to: 17.9 mA
Active-Mode TX (0 dBm): 18.2 mA
Power Mode 1 (4-μs Wake-Up): 270 μA
Power Mode 2 (Sleep Timer On): 1 μA
Power Mode 3 (External Interrupts): 0.5 μA
Wide Supply-Voltage Range (2 V–3.6 V)
7, UART,SPI, I2C interface
8, Powerful Five-Channel DMA
9, General-Purpose Timers (One 16-Bit, Two 8-Bit)
10, IR Generation Circuitry
11, 32-kHz Sleep Timer With Capture
12, Accurate Digital RSSI Support
13, Battery Monitor and Temperature Sensor
14, 12-Bit ADC With Eight Channels and Configurable Resolution
15, AES Security Coprocessor
16, Watchdog Timer
17, Integrated High-Performance Comparator

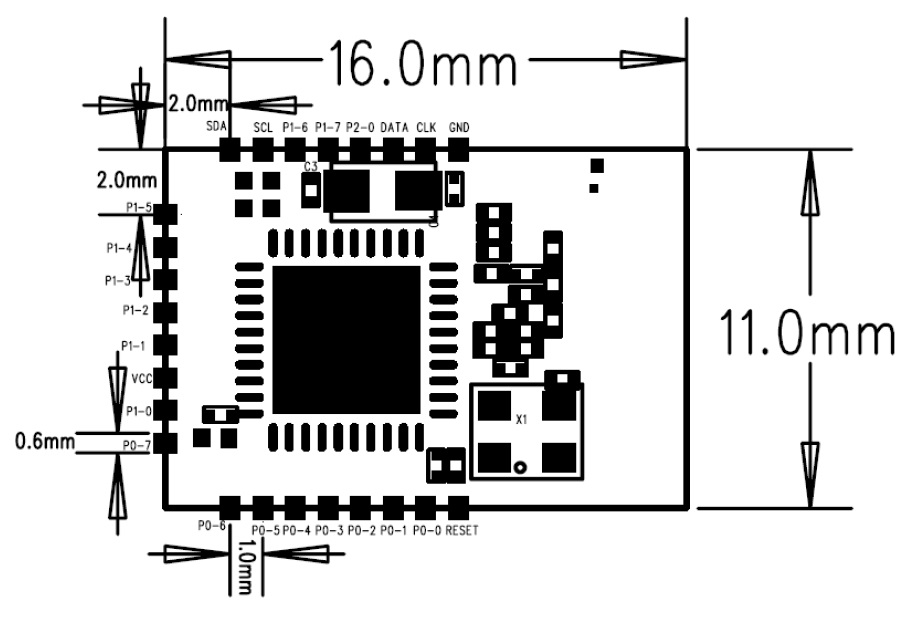

18 Package: 16mm X 11mm
Applications
Computer peripherals and I/O devices
Mouse
Keyboard
Multi-touch trackpad
Interactive entertainment devices
Remote control
3D Glasses
Gaming controller
Personal Area Networks
Health/fitness sensor and monitor Devices
Medical devices
Key-fobs+wrist watch
Remote control toys

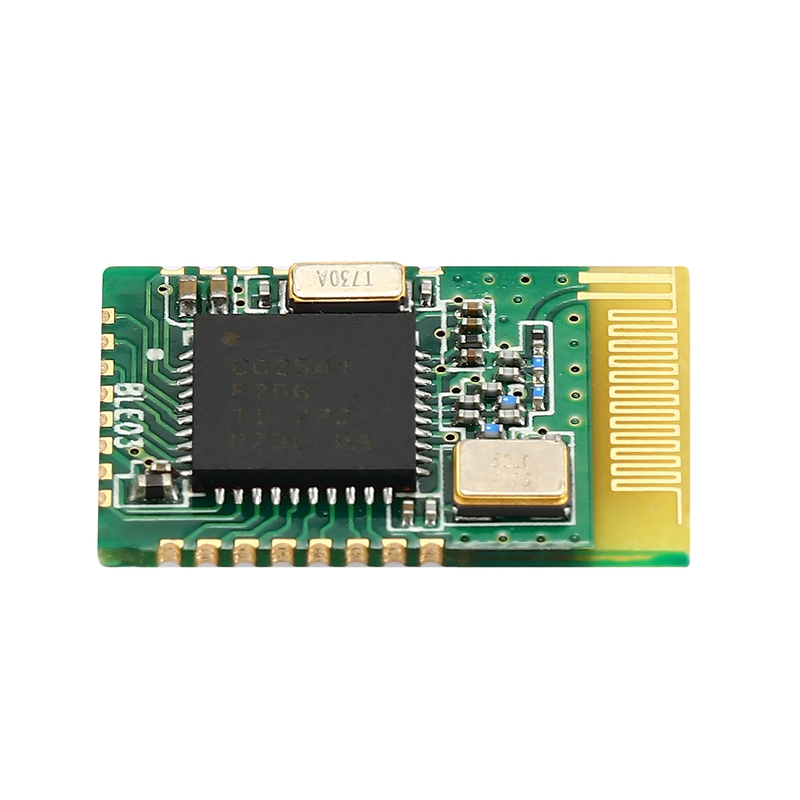

Product Pictures
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
