Nrf51822 Small Size Bluetooth BLE Module Bluetooth module radio transceiver with high quality
Smallest Size Bluetooth BLE Module Bluetooth module radio transceiver with high quality
Product Description
SR- ND02BLE01
The SR-ND02BLE01 module is designed base on Nodic nRF51822 radio transceiver IC, the IC is an ultra-low power 2.4GHz wireless System On chip (SoC) integrating the nRF51 series 2.4GHz transceiver,a 32 bit ARM Cortex-M0 CPU, flash memory and analog and digital peripherals. The module can support Bluetooth low energy and a range of proprietary 2.4GHz Protocols.
The application engineers can easily apply the RF module for its application without worrying about the specific impedance matching or soldering fine pitch related radio designing issues.
Main features:
Main Chip: nRF51822
2.4 GHz transceiver
-93dBm sensitivity in Bluetooth low energy mode
250Kbps,1Mbps,2Mbps supported data rates
Tx Power -20 to +4dBm in 4 dB steps
Tx Power -30 dBm Whisper mode
13mA peak RX,10.5mA peak Tx (0dBm)
RSSI(1 dB resolution)
Flexible Power Management
Supply voltage range 1.8V to 3.6V
2.5us wake-up using 16MHz RCOSC
0.4uA@ 3v OFF mode
0.5 uA@ 3V in OFF mode +1 region RAM retention
2.3uA @3V ON mode,all blocks IDLE
8/9/10 bit ADC -8 configurable channels
31 General Purpose I/O Pins
SPI Master
Two-wire Master(I2C compatible)
UART(CTS/RTS)
CPU independent Programmable Peripheral Interconnect(PPI)
Quadrature Decoder (QDEC)
AES HW encryption

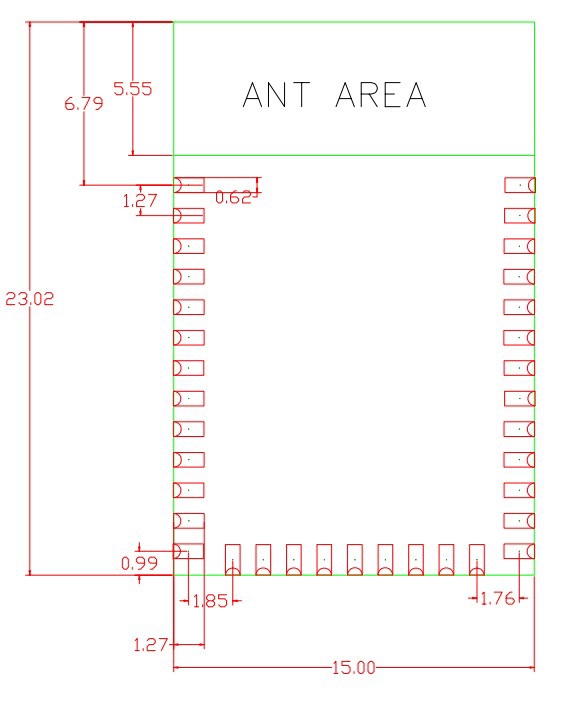

PCBA Dimension(mm): L15 X W23XH2.1
Applications
Computer peripherals and I/O devices
Mouse
Keyboard
Multi-touch trackpad
Interactive entertainment devices
Remote control
3D Glasses
Gaming controller
Personal Area Networks
Health/fitness sensor and monitor Devices
Medical devices
Key-fobs+wrist watch
Remote control toys
Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 Stereo Speaker, covering ISSC and Nodic chip;
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development. It helps client reduce cost and enhance competition,and with our corresponding monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced security and bluetooth product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in this area. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
