Wholesale Cheap Price ISSC IS2020S Bluetooth Audio Module with Stereo Speaker
SR-BM20SPK01
The SR-BM20SPK01 is a highly integrated Bluetooth 4.1 stereo module, designed for high data rate, short range wireless commnicatation in the 2.4 Ghz ISM band. With the built-in ISSC Bluetooth stack, profile and sound effect, the SR-BM20SPK01 can provide high performance Bluetooth audio
Main features:
Bluetooth 4.1 EDR compliant
- Main Chip:ISSC IS2020S
Max. +4dBm Class 2 output power
Receiver Sensitivity: GFSK typical -88dBm, π/4 PSK typical -89dBm 8DPSK typical -83dBm
Piconet and Scatter net support
CVSD, A-law, -law, mSBC CODEC algorithms for voice applications
SBC/AAC decode for Bluetooth audio streaming
Microphone input and audio line-in support
Built-in four language voice prompt (Chinese/English/Spanish/French)
Built-in 350mAH Li-ion battery charger
HSP, HFP, A2DP, AVRCP,SPP profiles supported
3.3V operating voltage
Built-in program ROM and 64Kb EEPROM
4 pins for SMT module Size: 15mmx29mm
Built-in PCB Antenna
RoHS compliant

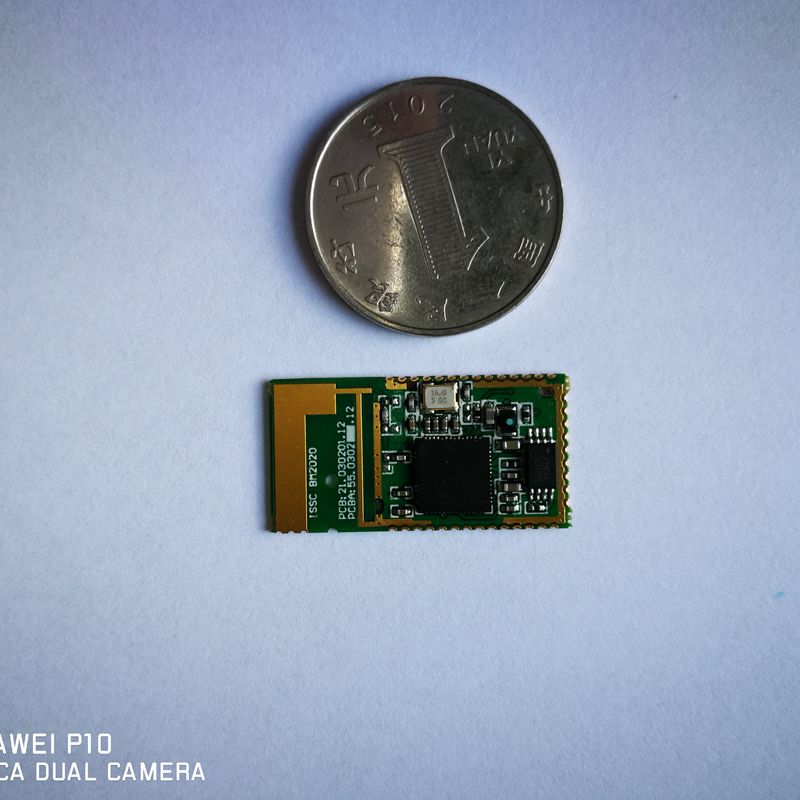

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 , 5.0 Stereo Speaker, covering ISSC and Nodic chip;Enter more.......
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
