Top hot the Smallest Bluetooth CC2541 Bluetooth Low Energy Consumption Module
Product Description
SR-BM03BLE01
The SR-BM03BLE01 module is a cost-effective, low-power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The Module combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The Module is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.
Main features:
1, Main Chip: CC2541
2, Supports 250-kbps, 500-kbps, 1-Mbps, 2-Mbps Data Rates
3, Excellent Link Budget, Enabling Long- Range Applications Without External Front End
4, Programmable Output Power up to 0 dBm
5, Excellent Receiver Sensitivity (–94 dBm at 1 Mbps), Selectivity, and Blocking Performance
6, Low Power
Active-Mode RX Down to: 17.9 mA
Active-Mode TX (0 dBm): 18.2 mA
Power Mode 1 (4-μs Wake-Up): 270 μA
Power Mode 2 (Sleep Timer On): 1 μA
Power Mode 3 (External Interrupts): 0.5 μA
Wide Supply-Voltage Range (2 V–3.6 V)
7, UART,SPI, I2C interface
8, Powerful Five-Channel DMA
9, General-Purpose Timers (One 16-Bit, Two 8-Bit)
10, IR Generation Circuitry
11, 32-kHz Sleep Timer With Capture
12, Accurate Digital RSSI Support
13, Battery Monitor and Temperature Sensor
14, 12-Bit ADC With Eight Channels and Configurable Resolution
15, AES Security Coprocessor
16, Watchdog Timer
17, Integrated High-Performance Comparator
18 Package: 16mm X 11mm
Applications
| Computer peripherals and I/O devices | Mouse |
| Keyboard | |
| Multi-touch trackpad | |
| Interactive entertainment devices | Remote control |
| 3D Glasses | |
| Gaming controller | |
| Personal Area Networks | Health/fitness sensor and monitor Devices |
| Medical devices | |
| Key-fobs+wrist watch | |
| Remote control toys |

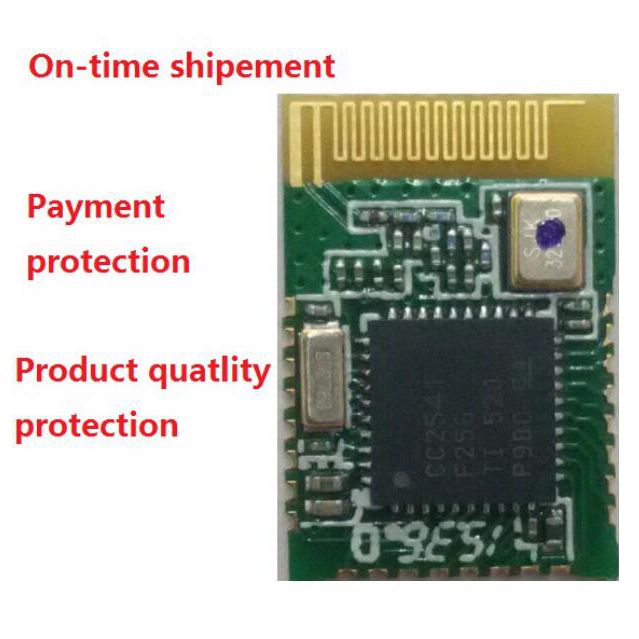

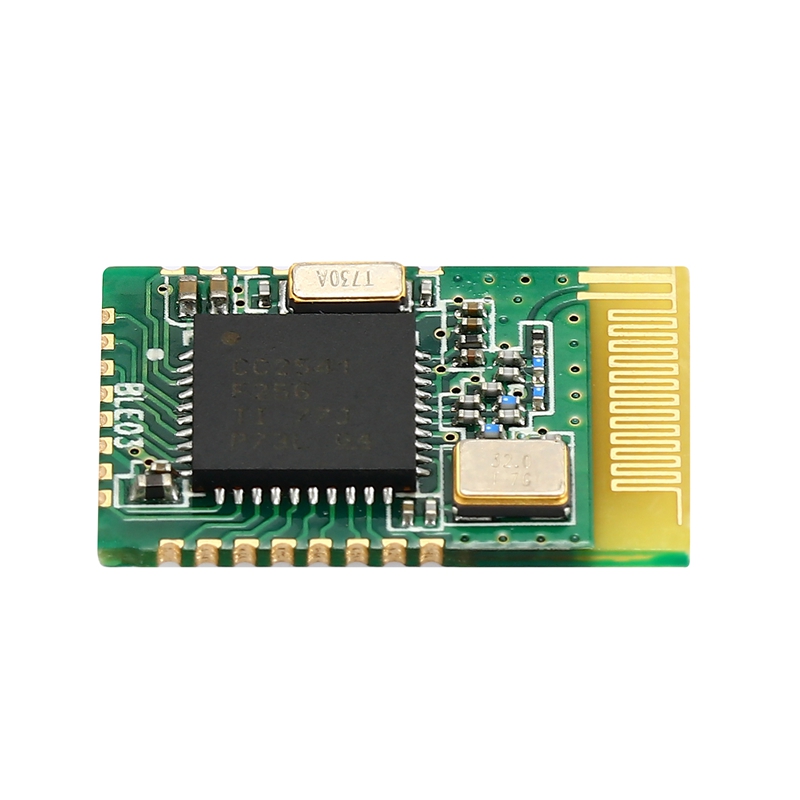

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 Stereo Speaker, covering ISSC and Nodic chip;
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development. It helps client reduce cost and enhance competition,and with our corresponding monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced security and bluetooth product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in this area. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
