Hot sales 45 pins for SMT module mini bluetooth 4.1 module ISSC IS2025S with bluetooth module price
Product Description
SR-BM25SPK01
The SR-BM25SPK01is a highly integrated Bluetooth 4.1 stereomodule with built-in 2-ch 2.3W class-D amplifier, designed for high data rate,short-range wireless communication in the 2.4 GHz ISM band. With thebuilt-in ISSC Bluetooth stack, profile and sound effect, theSR-BM25SPK01can provide high performance Bluetooth audio.
Main features:
- Main Chip:ISSC IS2025S
- Bluetooth 4.1 EDR compliant
- Max. +4dBm Class 2 output power
- Receiver Sensitivity: GFSK typical-88dBm, π/4 PSK typical-89dBm,8DPSK typical-83dBm.
- Piconet and Scatter net support
- CVSD, A-law,-law, mSBC CODEC algorithms for voice applications
- SBC/AAC decode for Bluetooth audio streaming
- Microphone input and audio line-in support
- Built-in four language voice prompt (Chinese/English/Spanish/French)
- Built-in 350mAH Li-ion battery charger
- HSP, HFP, A2DP, AVRCP,SPP profiles supported
- 3.3V operating voltage
- Built-in program ROM and 64Kb EEPROM

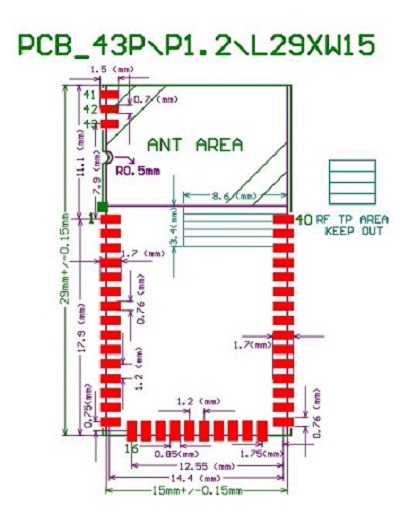

- 45 pins for SMT module Size:15mmx29mm
- Built-in PCB Antenna
- RoHS compliant

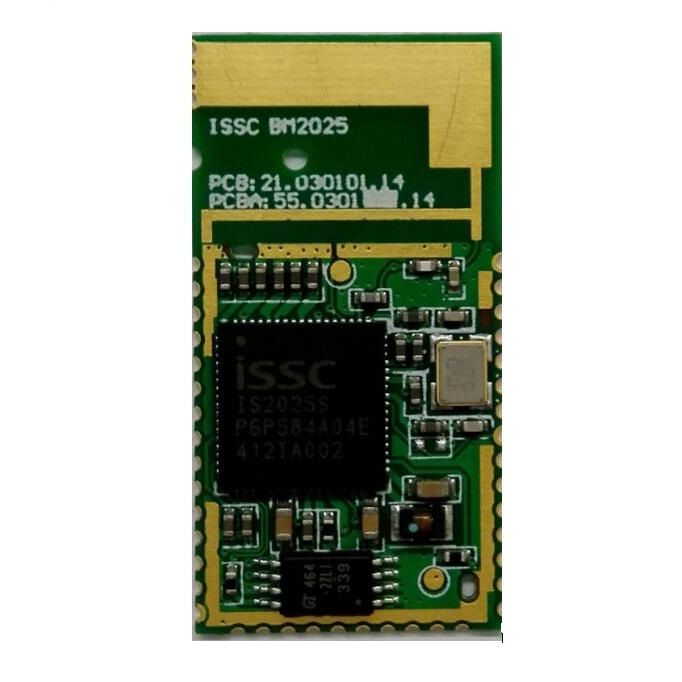

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of security and Bluetooth module products, including security detector, Bluetooth module 3.0, 4.0, 4.1 ISSC, BLE module TI CC2541;
SUMRING implements ISO9001 standard management, and every year invested 20% of earned
into Research & development. It helps client reduce cost and enhance competition,and with our corresponding monthly output ups to one million pieces, annual turnover ups to
USD 6,000,000.
SUMRING continuously follows the trend of global advanced security and bluetooth product
development, and has built long-term partnership with well-known manufacturer,aiming to be
top enterprise in this area. High-tech industry, good-quality products and
high-level are our commitments to customers. Our products are widely exported to USA, Spain,
Italy, Portugal,South Africa, South east Asia, and Middle East.
