BM78 Bluetooth 4.2 Dual-Mode Module
Bluetooth® 4.2 Dual-Mode Module
Product Description
BM78
The BM78 module is a fully-certified, Bluetooth version
4.2 module for customers to easily add dual-mode
Bluetooth wireless capability to their products. The
BM78 is built around Microchip"s IS1678 Bluetooth
dual-mode module, and it is available in ROM-based
(BM78SPPx5NC2) and Flash-based (BM78SPPx-
5MC2) versions. Refer to Section 9.0 “Ordering
Information” for additional information on the BM78
SKUs..
Main features:
- Bluetooth Classic (BR/EDR) and Low Energy (LE)
• Certified to FCC, IC, MIC, KCC, and NCC radio
regulations
• European R&TTE Directive Assessed Radio module
• Bluetooth SIG 4.2 qualified
• Transparent UART mode for seamless serial data
over UART interface
• Easy to configure with User Interface (UI) tool, a
Windows® configuration utility or directly by
MCUs
• Firmware can be upgraded in the field over UART
(Flash version)
• Integral chip antenna (BM78SPPS5MC2/NC2) or
external antenna (BM78SPP05MC2/NC2)
• Integrated crystal, internal voltage regulator, and
matching circuitry
• Configurable I/O pins for control and status
• Supports Apple® iPod Accessory Protocol (iAP2),
(only BM78SPPx5MC2)
• Supports Bluetooth 4.2 LE secure connections
• Bluetooth 4.2 LE data packet length extension
• Small and compact surface mount module
• Castellated SMT pads for easy and reliable PCB
mounting
• Ideal for portable battery operated devices
• One LED driver with 16 steps brightness control

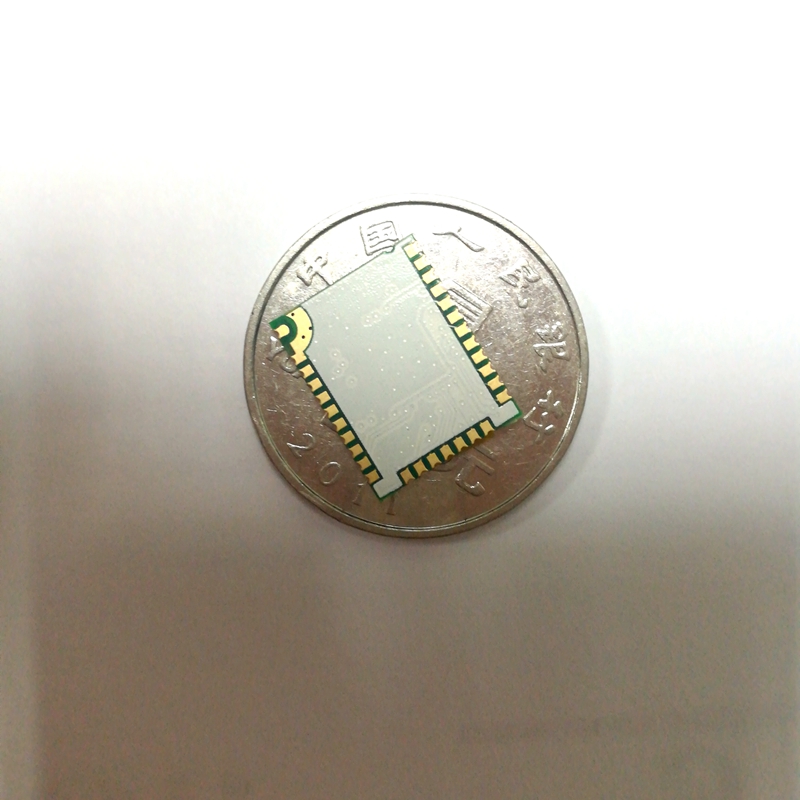

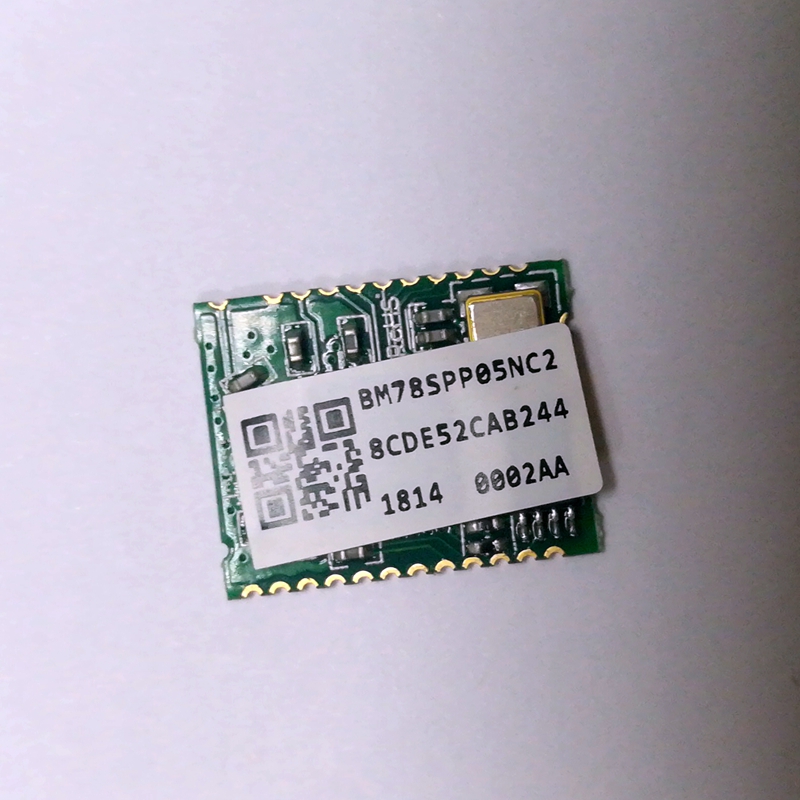

Product Pictures
BM78SPP05MC2 NC2 PIN DIAGRAM
BM78 BM78SPPS5MC2 NC2 PIN DIAGRAM
BM78 INTERNAL BLOCK DIAGRAM
BM78 AUTO PATTERN TRANSPARENT PIPE
MANUAL PATTERN PROTOCOL PIPE
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
