Wireless-Tag ISSC IS1678 Micro bluetooth module BLE4.2 beacon with AT Command
Product Description
The BM78 module is a fully-certified, Bluetooth version 4.2 module for customers to easily add dual-mode Bluetooth wireless capability to their products. The BM78 is built around Microchip"s IS1678 Bluetooth dual-mode module, and it is available in ROM-based
(BM78SPPx5NC2) and Flash-based (BM78SPPx- 5MC2) versions. Refer to Section 9.0 “Ordering Information” for additional information on the BM78
SKUs..
Main features:
• Bluetooth Classic (BR/EDR) and Low Energy (LE)
- • Certified to FCC, IC, MIC, KCC, and NCC radio
regulations
• European R&TTE Directive Assessed Radio module
• Bluetooth SIG 4.2 qualified
• Transparent UART mode for seamless serial data
over UART interface
• Easy to configure with User Interface (UI) tool, a
Windows® configuration utility or directly by
MCUs
• Firmware can be upgraded in the field over UART
(Flash version)
• Integral chip antenna (BM78SPPS5MC2/NC2) or
external antenna (BM78SPP05MC2/NC2)
• Integrated crystal, internal voltage regulator, and
matching circuitry
• Configurable I/O pins for control and status
• Supports Apple® iPod Accessory Protocol (iAP2),
(only BM78SPPx5MC2)
• Supports Bluetooth 4.2 LE secure connections
• Bluetooth 4.2 LE data packet length extension
• Small and compact surface mount module
• Castellated SMT pads for easy and reliable PCB
mounting
• Ideal for portable battery operated devices
• One LED driver with 16 steps brightness control
Product Pictures

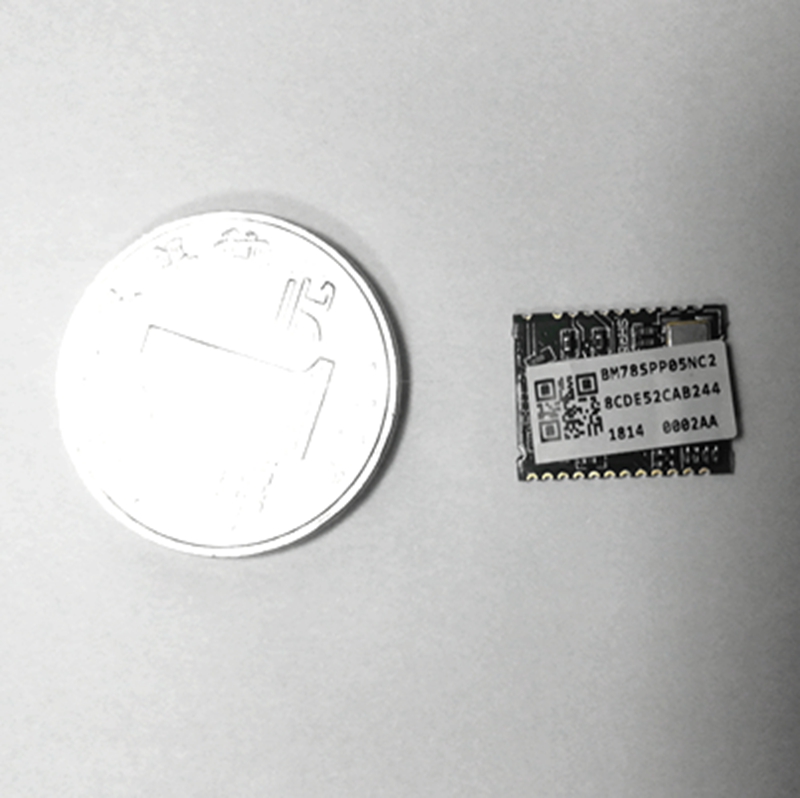

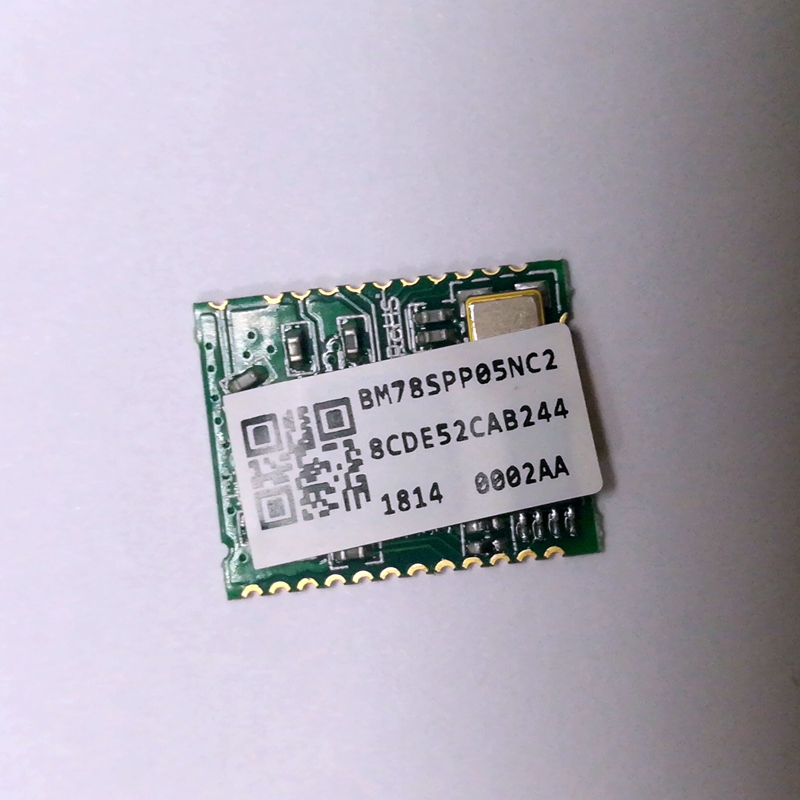

BM78 Bluetooth 4.2 Dual-Mode Module
BM78SPP05MC2 NC2 PIN DIAGRAM
BM78 BM78SPPS5MC2 NC2 PIN DIAGRAM
BM78 INTERNAL BLOCK DIAGRAM
BM78 AUTO PATTERN TRANSPARENT PIPE
MANUAL PATTERN PROTOCOL PIPE
