Home > Products > High Sensitivity 24V 2 Wire Smoke Detector

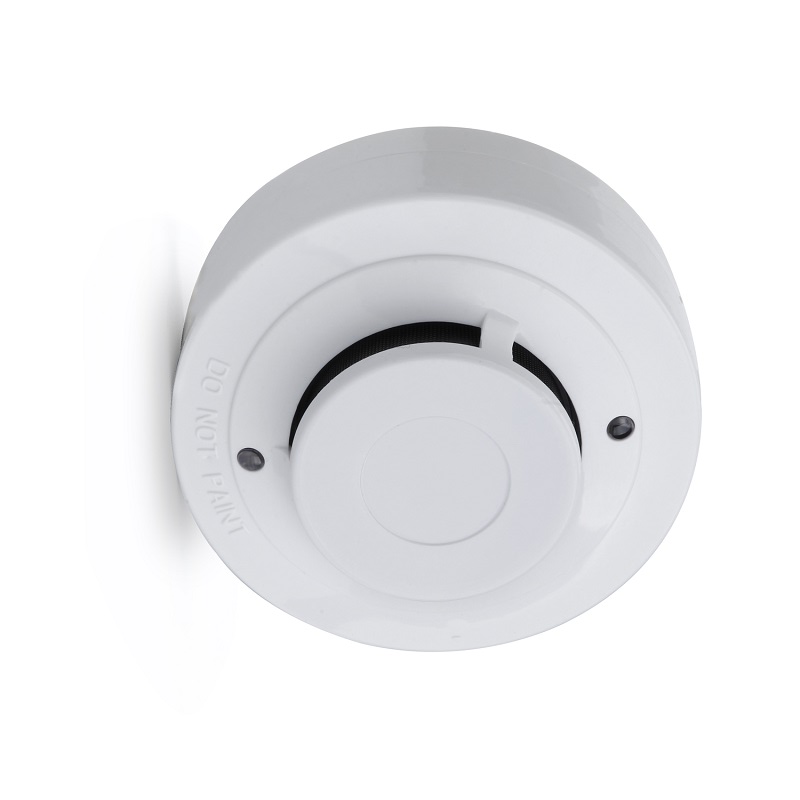

High Sensitivity 24V 2 Wire Smoke Detector
Click on the image to view the original image
Product： views：2High Sensitivity 24V 2 Wire Smoke Detector
Branch： SUMRING
Size： 10.6X10.6X5.2 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUMRING
Model Number:
SR-816
Usage:
Fire detection
Voltage:
DC24V
Name:
High Sensitivity 24V 2 Wire Smoke Detector
Static current:
55uA
Alarm current:
35mA@DC12V;60mA@DC24V
Sensitivity:
0.5dB/m(±0.01dB/M)
Alarm output:
Remote LED indicator
Installation:
Ceiling mounted
Dimension:
104*49mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
10.6X10.6X5.2 cm
Single gross weight:
0.25 kg
Package Type:
white box or neutral color box
Lead Time:
Quantity(Piece)1 - 500>500
Est. Time(days)8To be negotiated

High Sensitivity 24V 2 Wire Smoke Detector





Product Description


 Main Features:

1.SR-816 is  2-Wire Network Photoelectric smoke detector

2.Power supply non-polar input

3.Infrared photoelectric sensor

4.MCU processing, eliminate false alarm

5.SMT manufacture technology, high stability

6.Dustproof, mothproof, anti-light interference design

7.Stainless steel shield, anti-RFI(20V/m-1GHz)

8.Execute criterion:UL268, GB4715, EN54-7






Technological details

Model No.SR-816
Operating voltageDC9~35V
Static current55uA
Alarm current35mA@DC12V;60mA@DC24V
Sensitivity0.5dB/m(±0.01dB/M)
Alarm outputRemote LED indicator
InstallationCeiling mounted
Working environment-10℃~+50℃(≤95%RH No congelation)
 Dimension 104*49mm







Product pictures:















Company Information



FAQ



Packaging & Shipping

Packaging information

 OEM design is welcome!



Shipping information

* Express(UPS, DHL, Fedex, EMS, etc) is available.

* Sea and Air delivery is available

* welcome your agent to deal with our products .
