Fire alarm stand alone photoelectric smoke detector for alarm system SR808
product features:
nfrared photoelectric sensor
MCU processing,eliminate false alarm,low batter warning
Low power consumption,test and hush button
Shockproof design ,
Dustproof,mothproof,anti-light interference design
Sound & flash alarm,Sound level 85db/3m
Low battery warning ,Test/hush function Tool-Free intallation design
Dimension:54* 54* 41.5m
Certifications: CE ROHS FCC
Technical Parameter:
| Model No. | SR-808 |
| Working voltage | 3V lithium battery ( 10 years life) |
| Static current | ≤10uA |
| Alarm current | ≤60mA |
| Alarm output | Sound & Flash Alarm |
| Sound level | 85dB/3m |
| Installation | Ceiling mounted |
| Sensitivity | 1.8%/ft±0.8%/ft |
| Working environment | -10℃~+50℃ (≤95%RH No congelation) |
| Dimension | 54*54*45mm |

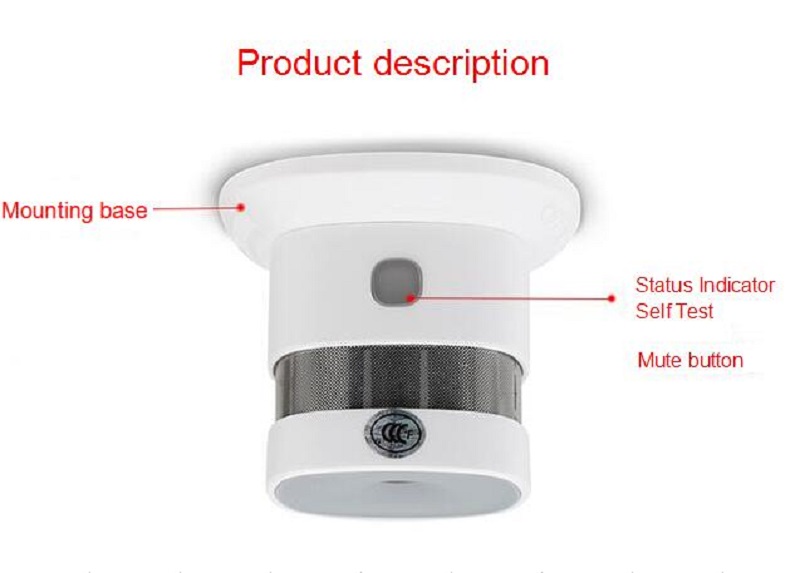

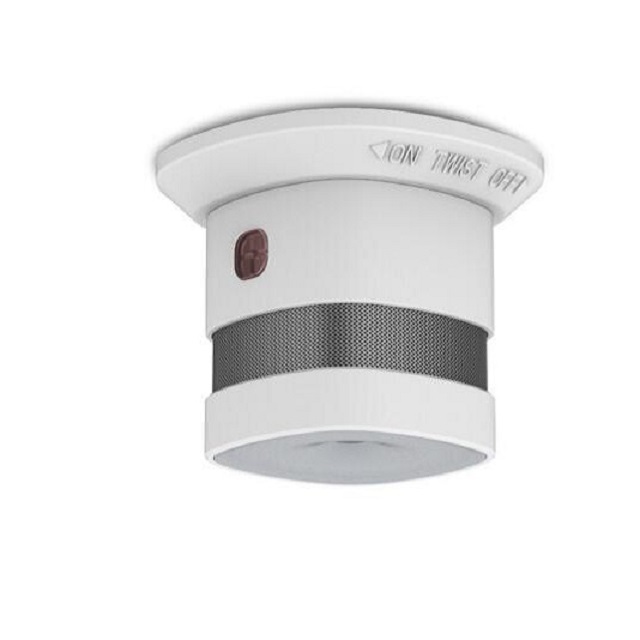

product pictures:
