Highly integrated Bluetooth 3.0 EDR stereo module for wireless voice/audio applications with RoHS compliant
Product Description
SR- BM84SPK01
The SR-BM84SPK01 is a highly integrated Bluetooth 3.0 EDR stereo module, designed for high data rate, short-range wireless communication in the 2.4 GHz ISM band. With the ISSC Bluetooth stack and profile, the SR-BM84SPK01 provides a low power and ultra-low cost Bluetooth 3.0+EDR solution for wireless voice/audio applications.
Main features:
| Main Chip: ISSC IS1684S |
| Bluetooth 3.0 EDR compliant |
| Max. +4dBm Class 2 output power |
| Receiver Sensitivity: GFSK typical -90dBm, π/4 PSK typical -91dBm,8DPSK typical -83dBm |
| Piconet and Scatter net support |
| HCI UART interface |
| CVSD, A-law, μ-law CODEC algorithms for voice applications |
| SBC decode for Bluetooth audio streaming |
| Build-in High performance stereo audio codec |
| Build-in audio mux/gain control for line-in audio signal |
| Cap-less/single end headphone driver |
| Audio DAC: 94dB SNR |
| Build in Max. 350mAH Li-ion battery charger |
| A2DP, AVRCP profile support |
| 3.3V operating voltage |
| ROM version: 32Kb EEPROM |
| 36pins for SMT module (with additional 36th pin antenna port for external antenna option) |

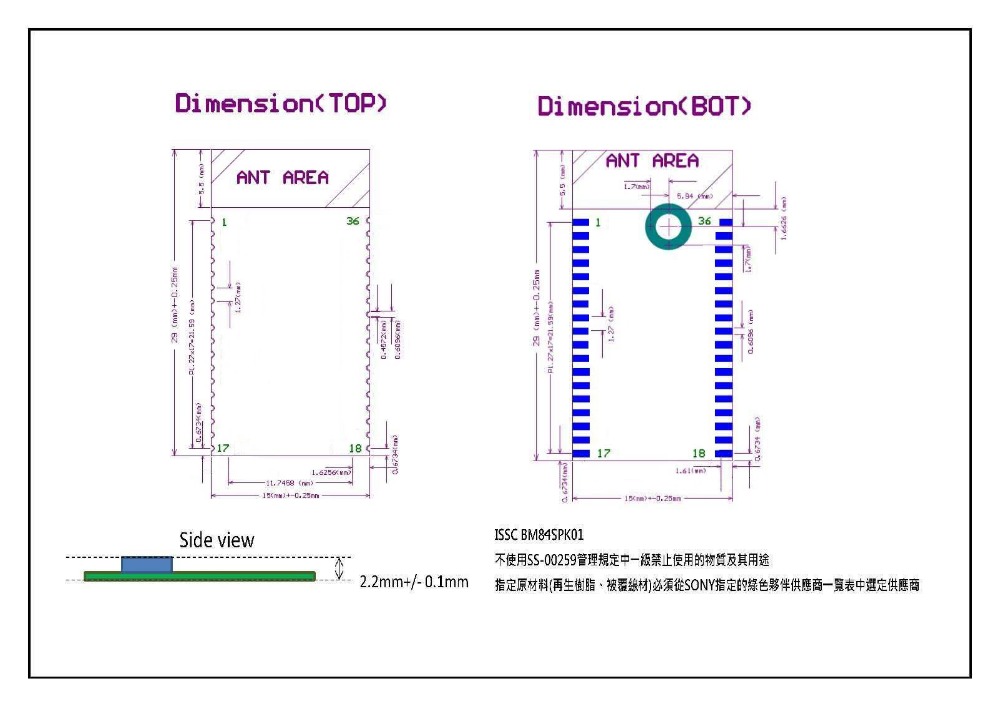

| Size: 15mm x29mm |
| Build-in PCB Antenna |
| RoHS compliant |
Product pictures:
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
