- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-505-2
- name:
- 2-Wire networkfire alarm heat detector for system alarm
- Usage:
- security protection
- Operating voltage:
- DC 9V-35V
- Static current:
- ≤50uA
- Alarm current:
- 35mA(12V); 83 mA (24V)
- Alarm output:
- Remote LED indicator
- Installation:
- Ceiling mounted
- Dimension:
- 103*50mm
- color:
- white
- Execute criterion:
- GB4716, EN54-5
- Packaging Details
- netural color box
- Port
- Shenzhen
china house alarm 2-Wire network fire alarm heat detector for system alarm
Main Features:
1.SR-505-2 is 2-Wire network heat detector
2.Combination rate-of-rise and fixed temperature alarm
3.MCU processing, eliminate false alarm
4.Low standby current
5.Anti-RFI &Anti-EMI
6.9-35VDC wide operating voltage range
7.LED flashing visible in 360 degrees direction
8.Power supply non-polar input
9.Remote LED indicator output (2 wire)
10.Rustproof, mothproof, anti-light interference design
11.Execute criterion: GB4716, EN54-5
Technical specification:
Operating voltage | DC 9V-35V |
Static current | ≤50uA |
Alarm current | 35mA(12V); 83 mA (24V) |
Alarm output | Remote LED indicator |
Alarm temperature | Rate-of-rise alarm: temperature rising rate>8℃ |
Installation | Ceiling mounted |
Working environment | -10℃~+50℃(≤95%RH) |
Dimension | 103*50mm |

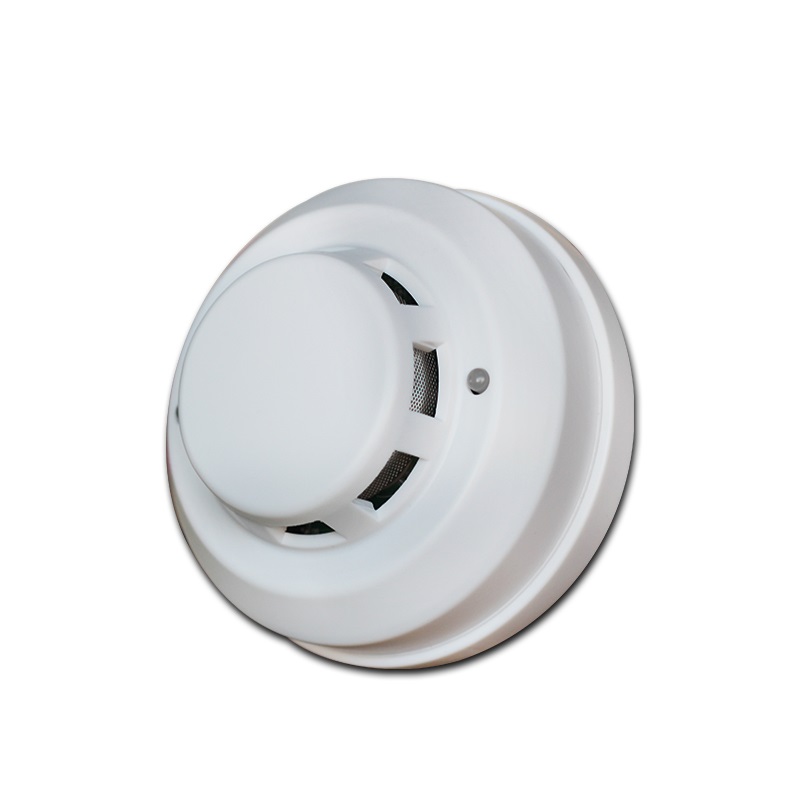

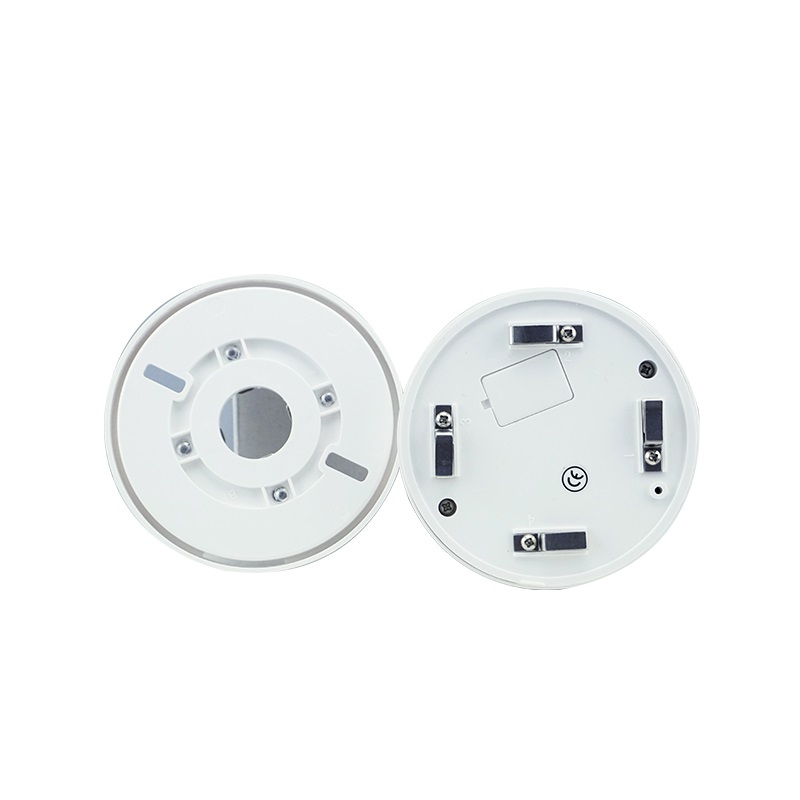

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
Our Certifications
Q1. Can I get one sample for test before big order?
A: Sure,you can. Please leave a message we will contact you soon.
Q2. Can I get the heat detector less than MOQ?
A: Yes, you can and the final price will depend on your quantity.
Q3. Can I print my logo on the heat detector?
A: Yes, please contact us.
Q4, What"s the lead time when I place bulk order?
A: Small Qty order needs5-7 working days, big Qty order usually needs 7-20 working days after payments arriving. That"s depends on order Qty.
