Pet Immunity Wired Wide Angle PIR Motion Detector Operated by DC9-24V
PIR Detector:
SR-605W Wide angle PIR motion detector
SR-605WP Wide Angle Pet immune PIR Detector
SR-605DTP Pet FriendlyTri-Tech PIR/Microwave Motion Detector
Friendly tips :There are three types of this product, please select the product you need, we are looking forward to your consultation(This model SR-605WP is what we recommend to you)
Product introduction
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
| MCU processing, anti-false alarm efficiently |
| Double temperature compensation |
| Pulse count adjustment |
| Anti white light interference |
| Anti RF interference(20V/m-1GHz) |
| SMT manufacture technology |
| Wall / corner mounted |
| Fresnel lens |
| Alarm output NC / NO optional |
| Execute criterion: GB10408.1, GB10408.5 |
Technical specification:
Model NO. | SR-605W | SR-605WP | SR-605DTP |
Operating voltage | DC9V-24V | ||
Current consumption | ≤18mA | ≤18mA | ≤30mA |
Alarm indicator | Red LED | Red LED | Green: infrared triggered, Yellow:microwave triggered, Red:Alarm |
Tamper output | NC, contact DC28V 100mA | ||
Alarm output | NC/NO optional, contact DC28V 100mA | ||
Alarm time | 0.3m/s - 3m/s | ||
Self-testing time | 60s | ||
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator | ||
Pet immunity | N/A | 12kg | 20kg |

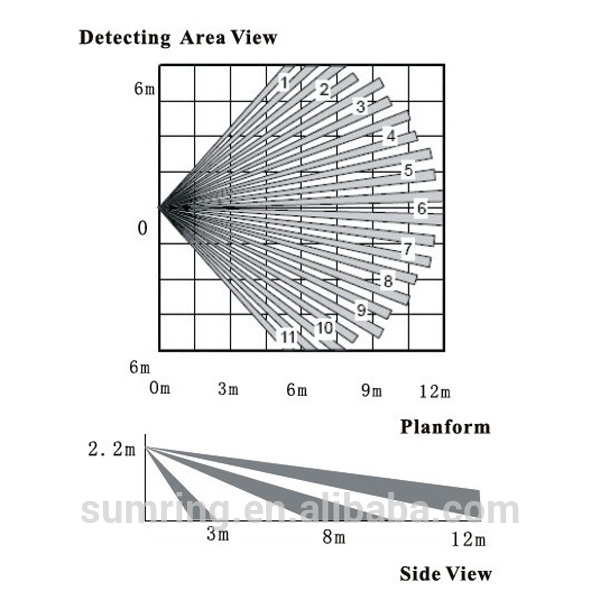

Detecting angle | 110° | 110° | 90° |
Detecting distance | 12m | ||

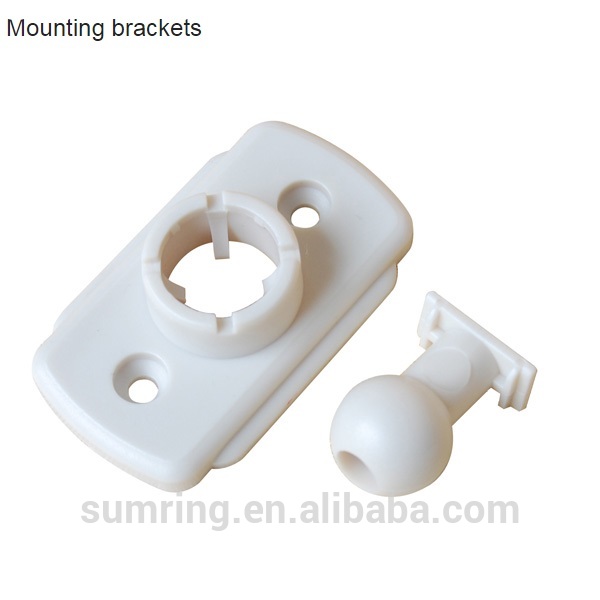

Installation | Wall or corner mounted | ||
Working environment | -10℃~+50℃,(≤95%RH No congelation) | ||
Dimension | 123*62*46mm | ||
Product Pictures:
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
