PCBA OEM service True wireless stereo Bluetooth module for TWS headset
Product Description

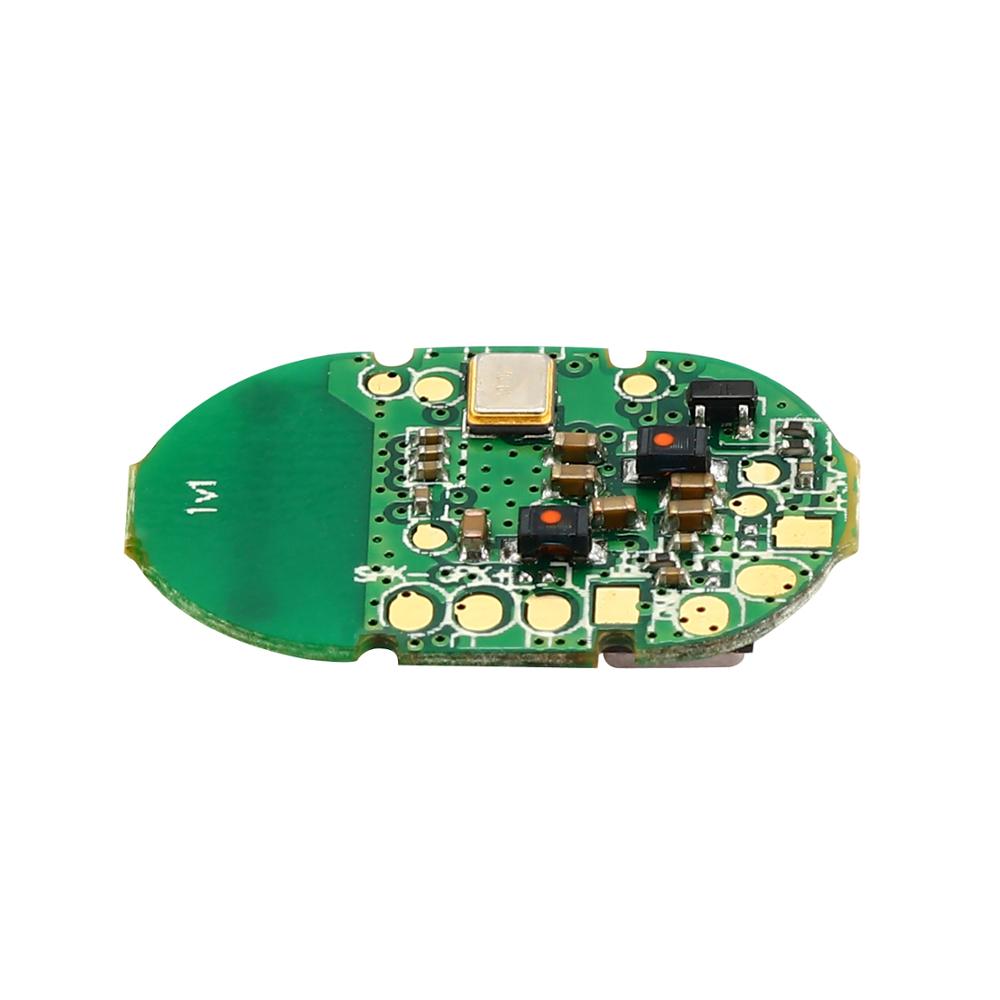

TWS Bluetooth module H8S (The meaning of TWS is:True wireless stereo)
The H8S is design for Bluetooth5.0 +EDR+BLE function and backward compatible with BT4.2
BT4.1,BT4.0,BT3.0,2.0 and 1.2
it supports following profiles:Hands Free 1.7/Headset 1.2/ A2DP 1.3/AVRCP 1.6/SPP 1.2
Key Features:
| RWS Bluetooth module model | H8S |

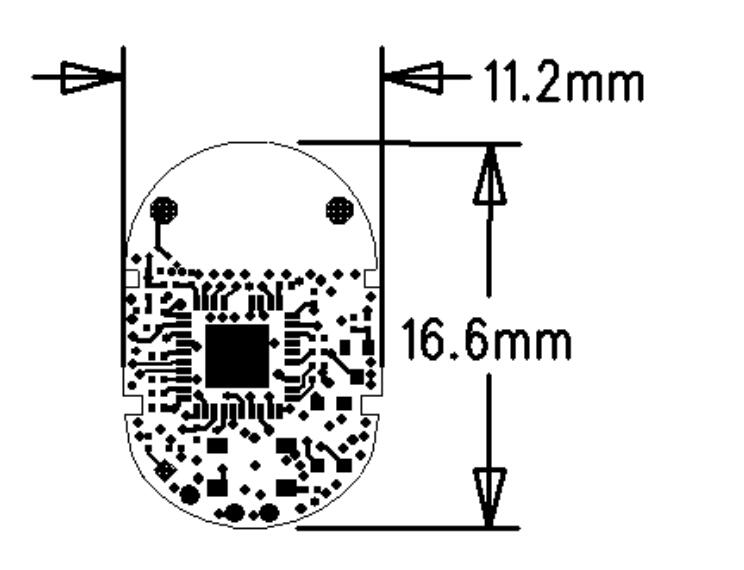

| size | 11.2*16.6mm for TWS headset application |
| CHIP SET | RTL8763BFR |
| Bluetooth Version | Bluetooth5.0 +EDR+BLE |
| Frequency band | 2.402GHZ-2.480GHZ ISM Band |
| RF transmitter output power | 6dBm(typ) |
| Build -in two languages | (Chinese/English) voice prompts and 20 events for each one |
| Application | Bluetooth TWS headset |
| support 64kb/s A-law or -law PCM format,or CVSD(Continuous Variable Slope Delta Modulation)for SCO channel operation | |
| Echo cancelation | |
| SBC and optional AAC decoding | |
| 20 bit codec ,98dB SNR DAC playback ,Mono microphone input | |
| Integrate headphone amplifier for 16/32 Ωspeakers | |
| Built-in lithium-ion battery charger to 400mA | |
| TWO LED drivers | |
| Build -in 8Mb Flash | |
| support to connect to two hosts (phones ,tablets....)with HFP or A2DP profiles simultaneously | |
| Integrated MIC | |
Product details:
H8S Function Description
| 1 key (S1 define function to the power on ,Pairing,power off,play, pause,reset ,answer,Reject,end) | power on : S1 press 2sec |
| power off: S1 press 2sec | |
| 2 LED (Blue & Red) | |
| 1 MEMS-Microphone | |
| USB connector with charger function | |
| If you plug the connector then red LED will be light.Until the battery full ,red LED off | |
Dear guest:
This module can be regarded as a semi-finished product, you only need to design the product shell to get the finished product ! The following is the finished product appreciation:
