Nodic nRF51822 radio transceiver IC bluetooth module with low energy mode

Product Description

SR-  ND02BLE01

 The SR-ND02BLE01 module is designed base on Nodic nRF51822 radio transceiver IC, the IC is an ultra-low power 2.4GHz wireless System On chip (SoC) integrating the nRF51 series 2.4GHz transceiver,a 32 bit ARM Cortex-M0 CPU, flash memory and analog and digital peripherals. The module can support Bluetooth low energy and a range of proprietary 2.4GHz Protocols.

The application engineers can easily apply the RF module for its application without worrying about the specific impedance matching or soldering fine pitch related radio designing issues.

  Main features:

• Main Chip: nRF51822

• 2.4 GHz transceiver

  -93dBm sensitivity in Bluetooth low energy mode

  250Kbps,1Mbps,2Mbps supported data rates

  Tx Power -20 to +4dBm in 4 dB steps

  Tx Power -30 dBm Whisper mode

  13mA peak RX,10.5mA peak Tx (0dBm)

  RSSI(1 dB resolution)

• Flexible Power Management

  Supply voltage range 1.8V to 3.6V

  2.5us wake-up using 16MHz RCOSC

  0.4uA@ 3v OFF mode

  0.5 uA@ 3V in OFF mode +1 region RAM retention

  2.3uA @3V ON mode,all blocks IDLE

• 8/9/10 bit ADC -8 configurable channels

• 31 General Purpose I/O Pins

• SPI Master

• Two-wire Master(I2C compatible)

• UART(CTS/RTS)

• CPU independent Programmable Peripheral Interconnect(PPI)

• Quadrature Decoder (QDEC)

• AES HW encryption

• PCBA Dimension(mm): L15 X W23XH2.1

Applications:

• Computer peripherals and I/O devices

  Mouse

  Keyboard

  Multi-touch trackpad

• Interactive entertainment devices

  Remote control

  3D Glasses

  Gaming controller

• Personal Area Networks

  Health/fitness sensor and monitor Devices

  Medical devices

  Key-fobs+wrist watch

  Remote control toys

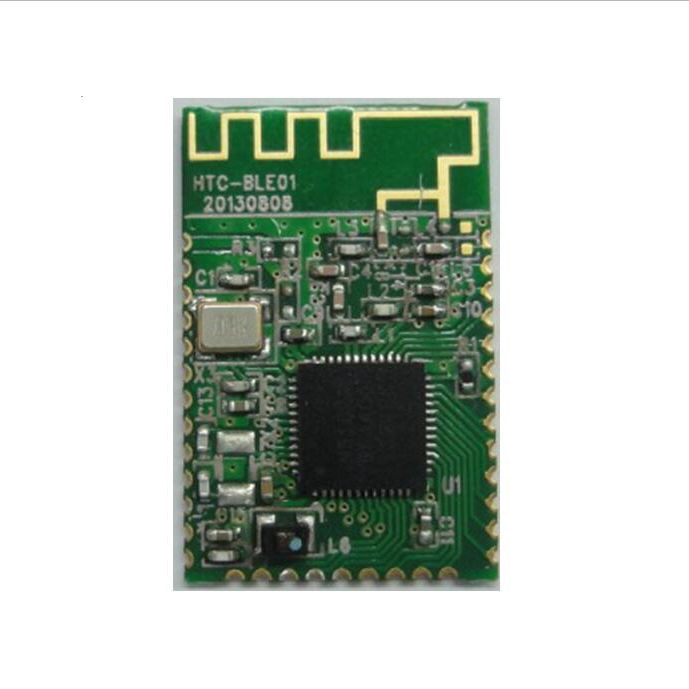

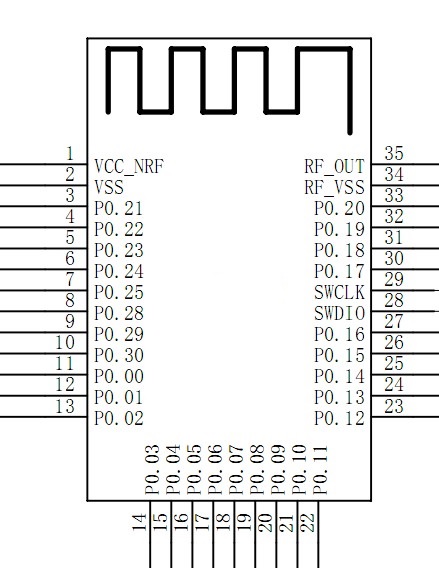

Product Pictures:
