DC9~35V Photoelectric smoke detector fire alarm with Remote LED indicator
Smoke detector SR-812 Series
SR-812PC-2 2-Wire Network Photoelectric smoke detector
SR-812PC-4 4-Wire Network Photoelectric smoke detector
SR-812DC-2 2-Wire Network Photoelectric smoke & heat detector
SR-812DC-4 4-Wire Network Photoelectric smoke & heat detector
Friendly tips:Welcome to our shop, I"m sorry, there are many types of the product in this series, if you would like to, please contact us anytime, we can help you recommend the type you want. We guarantee to make you satisfied,thanks a lot !
(Green font is the type recommended for you in this Web page)
Main Features:
Power supply non-polar input
Infrared photoelectric sensor
MCU processing, eliminate false alarm
Network relay output/LED indicating alarm
SMT manufacturer technology, high stability
Dustproof, mothproof, anti-light interference design
Stainless steel shield in chamber, anti-RFI(20V/m-1GHz)
Execute criterion: GB4715,EN54-7, UL539
Technical specification:
Model No. | SR-812PC-2 | SR-812PC-4 | SR-812DC-2 | SR-812DC-4 |
Operating voltage | DC9~35V | |||
Alarm temperature | N/A | N/A | 57℃ | 57℃ |
Static current | 20uA | 13mA(NC);4mA(NO) | 20uA | 13mA(NC);4mA(NO) |
Alarm current | 35mA@DC12V;83m@DC24V | 9mA(NC);19mA(NO) | 35mA@DC12V;83m@DC24V | 9mA(NC);19mA(NO) |
Alarm output | Remote LED indicator | Relay output | Remote LED indicator | Relay output |
Installation | Ceiling mounted | |||
Sensitivity | 2.06%ft±1.3%ft | 0.15dB/m(±0.03dB/M) | ||
Working environment | -10℃~+50℃(≤95%RH No congelation) | |||
Dimension | 100*46mm | |||

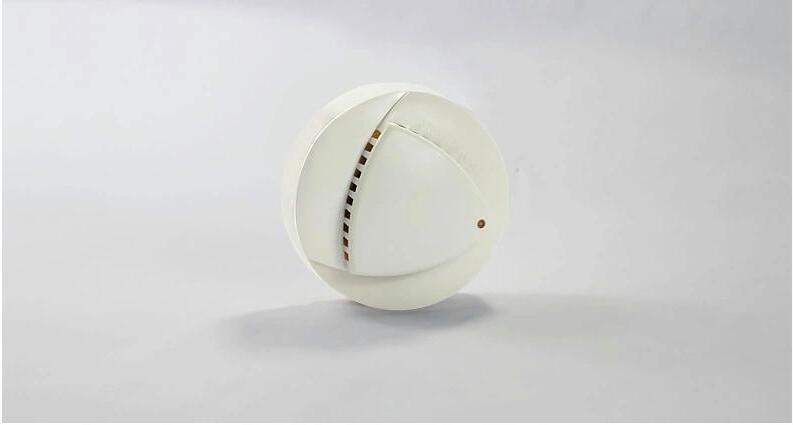

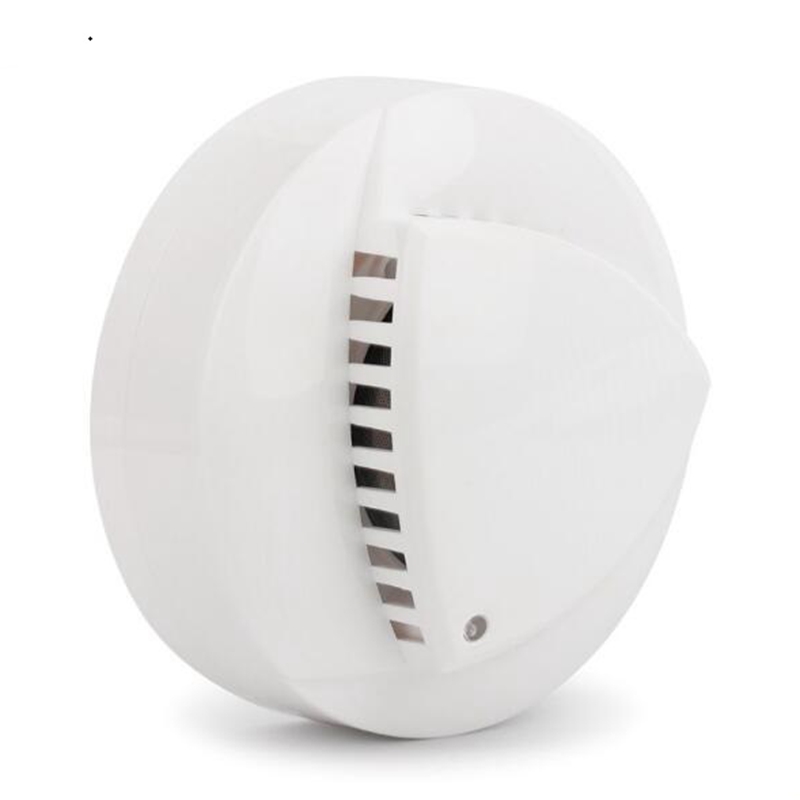

Product Pictures
