2 wired Network Smoke & Heat Alarm with smoke and temperature sensor
Smoke detector SR-812 Series
SR-812PC-2 2-Wire Network Photoelectric smoke alarm
SR-812PC-4 4-Wire Network Photoelectric smoke alarm
SR-812DC-2 2-Wire Network Photoelectric smoke & heat alarm
SR-812DC-4 4-Wire Network Photoelectric smoke & heat alarm
Friendly tips:Hello Dear Guest, There are many types of this product, please choose according to your needs or please contact us to help you choose, the type of green font is this page to recommend to you, please know thank you !
Main Features:
| Power supply non-polar input |
| Infrared photoelectric sensor |
| MCU processing, eliminate false alarm |
| Network relay output/LED indicating alarm |
| SMT manufacturer technology, high stability |
| Dustproof, mothproof, anti-light interference design |
| Stainless steel shield in chamber, anti-RFI(20V/m-1GHz) |
| Execute criterion: GB4715,EN54-7, UL539 |
Technical specification:
Model No. | SR-812PC-2 | SR-812PC-4 | SR-812DC-2 | SR-812DC-4 |
Operating voltage | DC9~35V | |||
Alarm temperature | N/A | N/A | 57℃ | 57℃ |
Static current | 20uA | 13mA(NC);4mA(NO) | 20uA | 13mA(NC);4mA(NO) |
Alarm current | 35mA@DC12V;83m@DC24V | 9mA(NC);19mA(NO) | 35mA@DC12V;83m@DC24V | 9mA(NC);19mA(NO) |
Alarm output | Remote LED indicator | Relay output | Remote LED indicator | Relay output |
Installation | Ceiling mounted | |||
Sensitivity | 2.06%ft±1.3%ft | 0.15dB/m(±0.03dB/M) | ||
Working environment | -10℃~+50℃(≤95%RH No congelation) | |||
Dimension | 100*46mm | |||

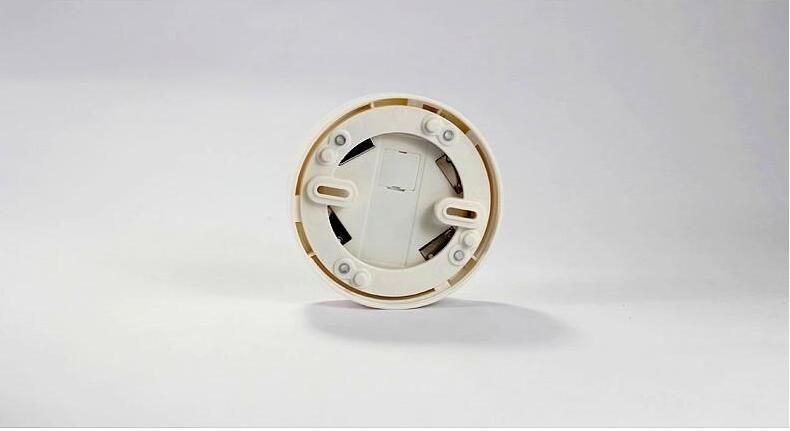

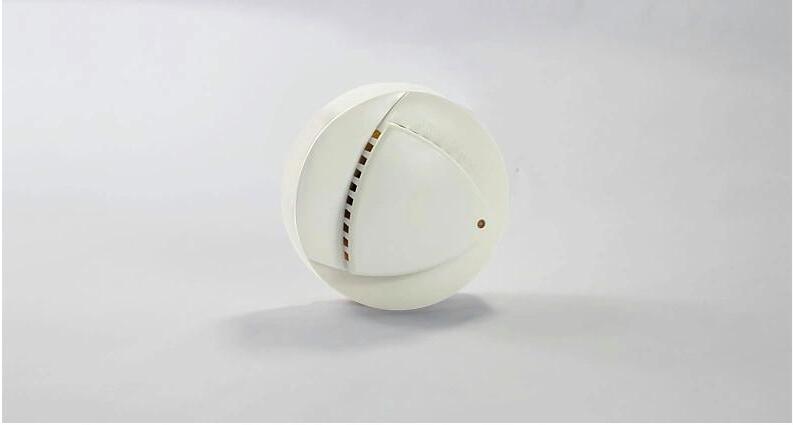

Product Pictures:
