Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-610W
- Usage:
- home security, Light control
- Theory:
- pir sensor
- Output:
- alarm output N.C./ N.O. optional
- operating voltage:
- DC 9-16V
- consumption current:
- less than 18mA(DC12V)
- operating temp:
- -10 to +50 degrees
- installation mode:
- wall or corner mounted
- installation height:
- about 2.2m
- detecting distance:
- 12m
- detecting angle:
- 110 degrees
- alarm output:
- N.O./ N.C. relay optional
- anti-dismantle switch:
- N.C.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 91X54.5X40.5 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- NEUTRAL COLOR BOX
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 8 To be negotiated
Good Quality corner mounted sensitivity adjustable pir sensor
Main features:

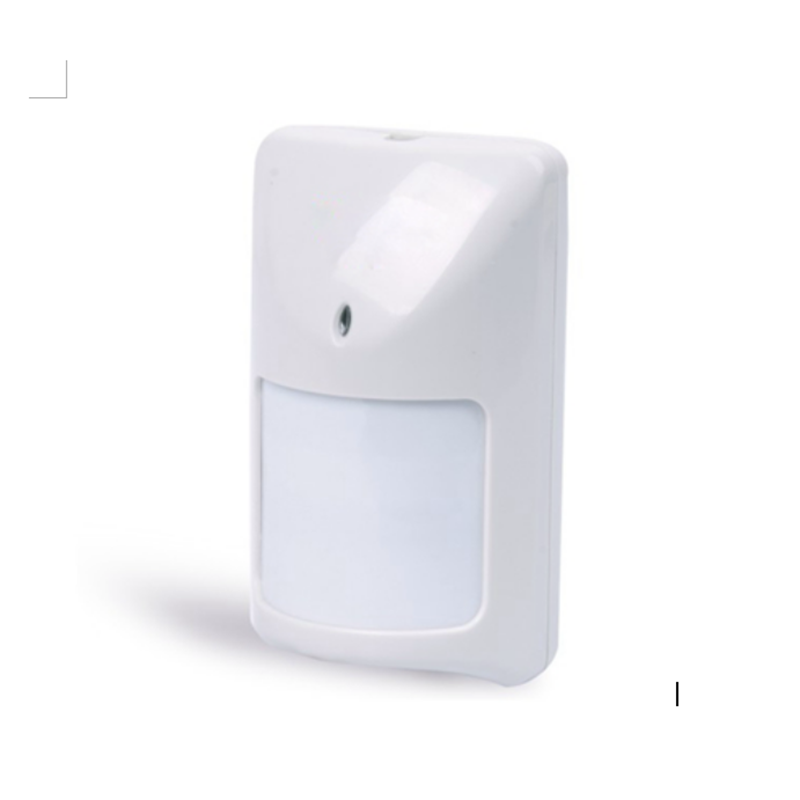

SR-610W Wide Angle PIR Detector (Infrared sensor)
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technical specification:
operating voltage: DC 9-16V
consumption current: less than 18mA(DC12V)
operating temp.: -10 to +50 degrees
installation mode: wall or corner mounted
installation height: about 2.2m
detecting distance: 12m
detecting angle: 110 degrees
alarm output: N.O./ N.C. relay optional
anti-dismantle switch: N.C.
dimension: 89*52.5*38.5mm
Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
Tel: 86- 755-89571625
Fax: 86- 755-89571207
skype :cnsumring03
TradeManager:sumring
Website: http://www.sumring.com
Inquiry now, we will reply you upon receive your email!
