Multifunctional integrated long range Bluetooth module
Product Description
The F8 is design for Bluetooth® 5 function and
backward compatible with BT4.2,BT4.1, BT4.0,BT3.0, 2.0 and 1.2. It is small size 6.7x33mm
for headset application.
It supports following profiles:
Hands Free 1.7 / Headset 1.2 / A2DP 1.3/ AVRCP 1.6 / SPP 1.2
Application:Bluetooth Stereo headphone

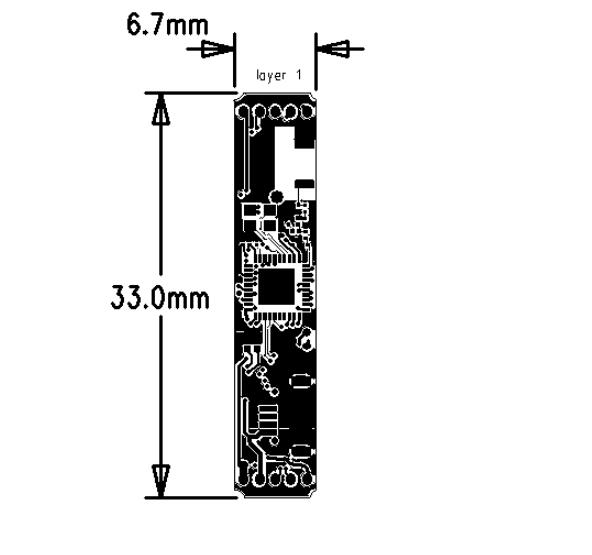

size:33.0 mm* 6.7 mm
Dear guest: this module can be regarded as a semi-finished product, you only need to design the product shell to get the finished product!
Main features:
- CHIP SET: RTL8763BF
- Bluetooth Version : Bluetooth® 5+EDR+BLE
- Frequency Band: 2.402GHz~2.480GHz ISM Band
- RF transmitter output power:6dBm(typ.)
- Support 64 kb/s A-Law or -Law PCM format, or CVSD (Continuous Variable Slope
Delta Modulation) for SCO channel operation.
- Echo cancelation
- SBC and optional AAC decoding
- 20 bit codec , 98dB SNR DAC playback , Mono microphone input
- Integrate headphone amplifier for 16/32Ω speakers
- Built-in Lithium-ion battery charger to 400mA
-TWO LED drivers
- Build-in 8Mb Flash
- Support to connect to two hosts ( phones, tablets…) with HFP or A2DP profiles simultaneously
- Build-in two languages (Chinese/ English) voice prompts and 20 events for each one
- Integrated Mic
Function Description
F8 support following function:
- 4 Key (Include the key functions: VOL+ / VOL- / FORWARD / FASTWARD / PLAY / PAUSE/RESET/ Reject)
S1 define function to the power on, pairing, power off, play, pause, reset
Power on: S1 press 2-3sec.
Power off : S1 press 2-3sec.
Pairing : S1 press 5Sec when power off
- 2 LED (Blue & Red)
- 1 MEMS-Microphone
- USB connector with charger function
If you plug the connector then red LED will be light. Until the battery full, red LED off and Green LED on.
Switch description:
Pin Description

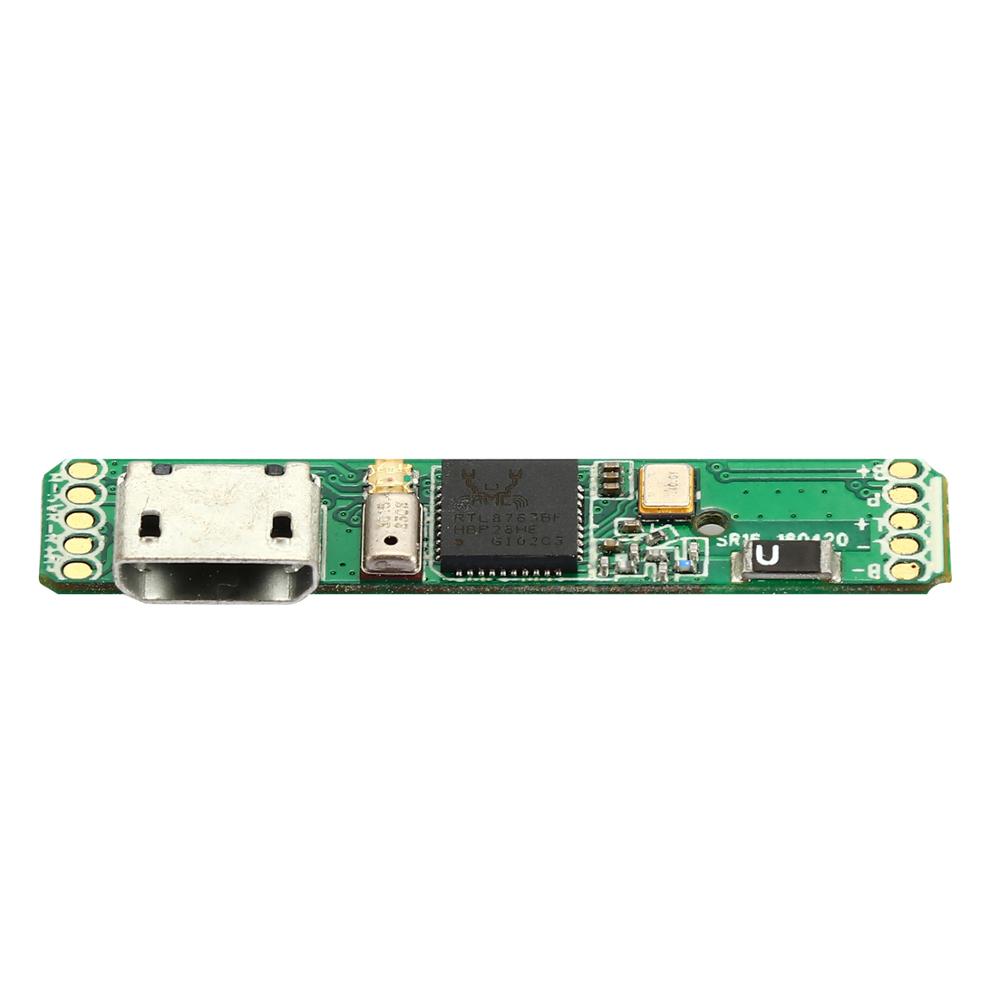

Product Pictures:
