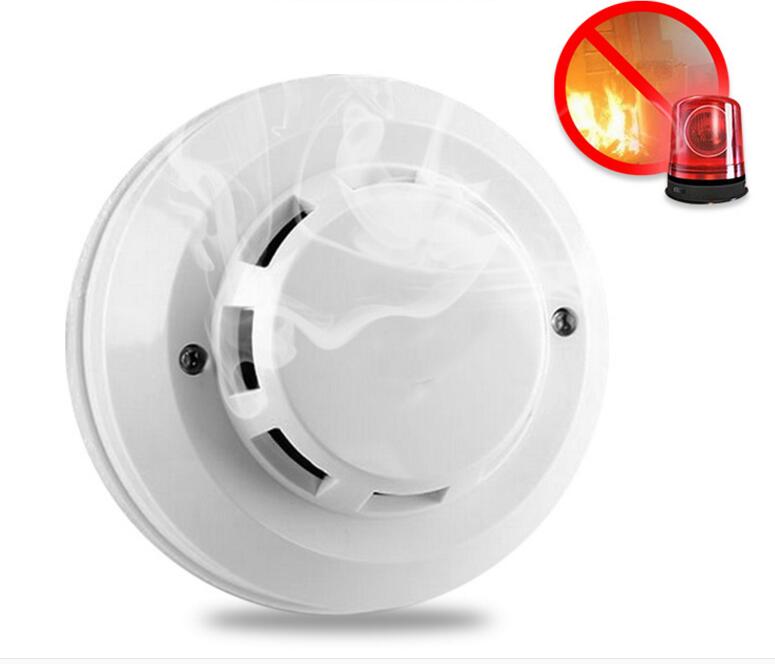

Wired Networking Optical Sensor Smoke Detector Alarm for fire alarm system
Main Features:
Strong Adaptability For Circumsiance
SMT Design, High Stability
10-35VDC Wide Voltage Operating Range
Low Standby Current
Stain Steeless Shield,Antt-(20V/m-1GHz)
Technical specification:
Operating Voltage:DC 10V~35V
Standby Current : ≤35uA(at DC24V)
Alarm Current:70mAMax(at DC24V)
Remote Output :15mA Max ,DIODE GATE
Alarm Indication:Red LED ON
Operating Temperature: -10℃ ~ +50℃
Operating Humidity :≤95%RH
Detecting Area: 80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m)
Dimension Size :104 mm dia.*51mm deep
Product Pictures:
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
