Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-P01-16
- Fire Panel Type:
- Conventional
- AC POWER:
- 220VAC, 50 Hz
- Name:
- Whosesale 220V 16 Zone Conventional Fire Alarm Control Panel
- fire alarm control panel:
- 16 zone
- Function:
- Fire detection
- battery:
- Sealed lead-acid batteries only
- Maximum charging circuit:
- 27.6VDC @ 0.8 amp for normal flat charge
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 48X42X18.5 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 5 To be negotiated
Wholesale 220V 16 Zone Conventional Fire Alarm Control Panel With 24V Battery For Hotels
Fire alarm control panel
The SR-P01 Series Conventional Fire Alarm Control Panel is 220VAC, 50 Hz, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.
Please note: this link defaults to model SR-P01-16
Main Features:
Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept
two-wire smoke detectors and any normally-open contact devices.
Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits
(NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed.
Technical specification:
AC POWER: 220VAC, 50 Hz.
BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for
normal flat charge. Maximum battery charger capacity: 18AH battery.
NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate
battery box.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH.
Resettable four-wire smoke detector power output.
Non-resettable power output.
Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC
(resistive), 2.0 amps @ 30 VAC (resistive)

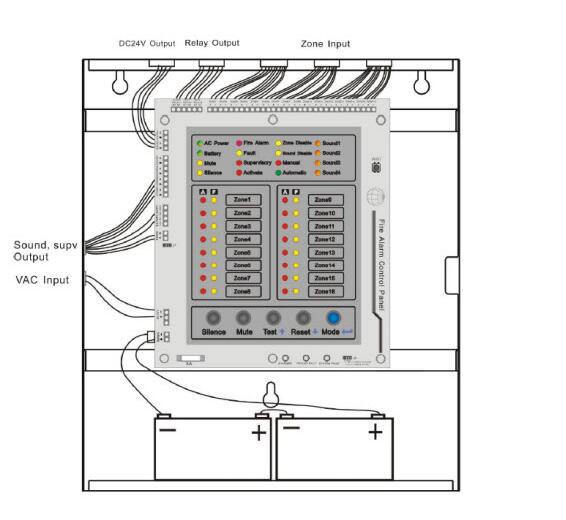

Product Pictures

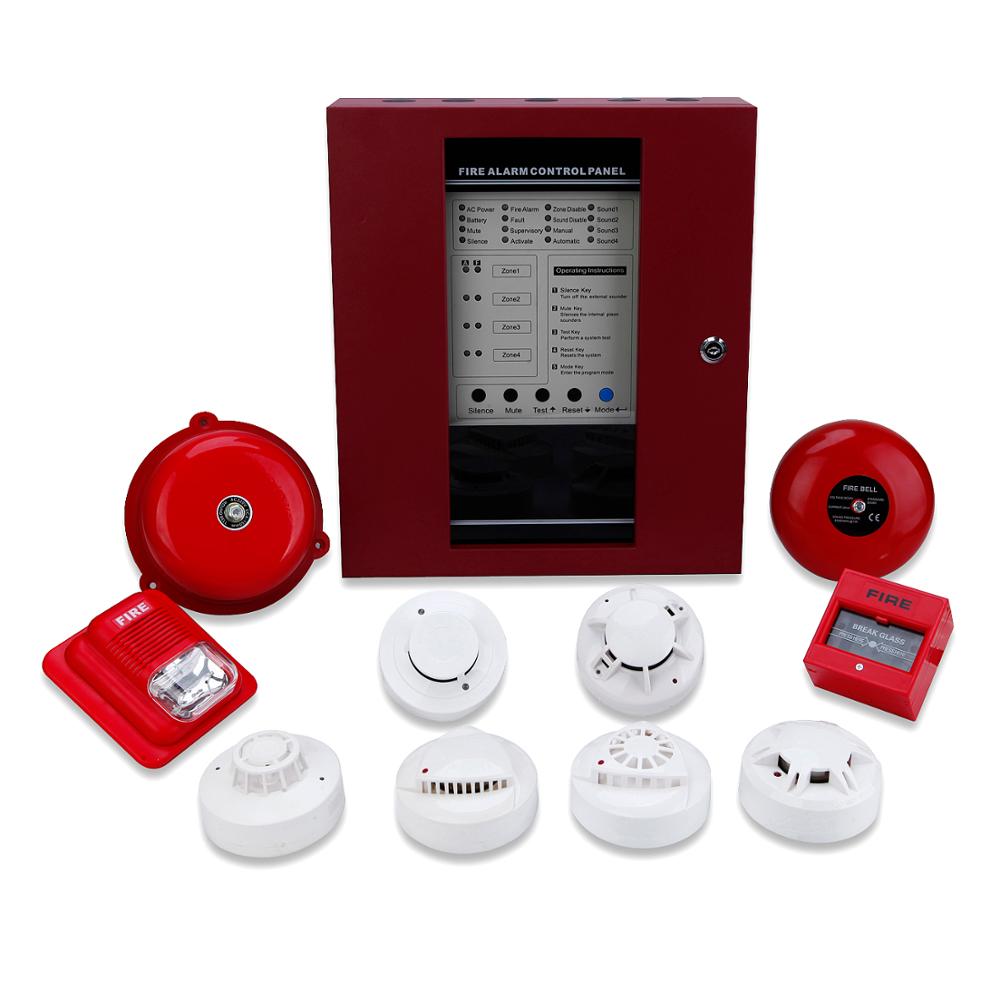

This fire alarm control panel can Match any 2/4-wire smoke heat detector,strobe siren,fire bell,manual call point ect
| smoke detector | 2 wire, 4 wire optiona, photoeletrci type |
| heat detector | 2 wire, 4 wire optional, rate of rise or fixed temeparture |
| strobe siren | wired type, with or without strobe |
| fire bell | wired type, indoor or outdoor type |
| manual call point | resettable type or breaking glass type optional |
Not only the alarm control panel we have, but also we offer all kinds of detectors if you want, we are looking forward to your inquiry, thank you!
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
Packaging information
Shipping information
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
Payment terms:L/C,D/A,D/P,T/T, Western Union,Paypal ect
Delivery time :Normal order within 7 days,bulk order 10-15 days
Packing:paper carton
