- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-P01-8
- Type:
- conventional
- fire alarm control panel:
- 4 zone, 8 zones or 16 zones optional
- Function:
- Fire detection
- AC POWER:
- 220VAC, 50 Hz.
- battery:
- Sealed lead-acid batteries only
- Maximum charging circuit:
- 27.6VDC @ 0.8 amp for normal flat charge
- Maximum battery charger capacity:
- 18AH battery
- Total DC24V system power:
- 3.0 amps.
- Maximum current per NAC:
- 1.25 amps.
- Maximum battery charging capability:
- 18 AH.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 48X45X18.5 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 7 To be negotiated
Hot selling AC220V 8 Zones Conventional Fire Security System Alarm Control Panel
Fire alarm control panel:
SR-P01-4 4 zones conventional fire alarm control panel
SR-P01-8 8 zones conventional fire alarm control panel(This link defaults to this model)
SR-P01-16 16 zones conventional fire alarm control panel
The SR-P01 Series Conventional Fire Alarm Control Panel is 220VAC, 50 Hz, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.
Main features:
Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept
two-wire smoke detectors and any normally-open contact devices.
Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits
(NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed.
Technical Parameters
AC POWER: 220VAC, 50 Hz.
BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for
normal flat charge. Maximum battery charger capacity: 18AH battery.
NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate
battery box.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH.
Resettable four-wire smoke detector power output.
Non-resettable power output.
Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC
(resistive), 2.0 amps @ 30 VAC (resistive)

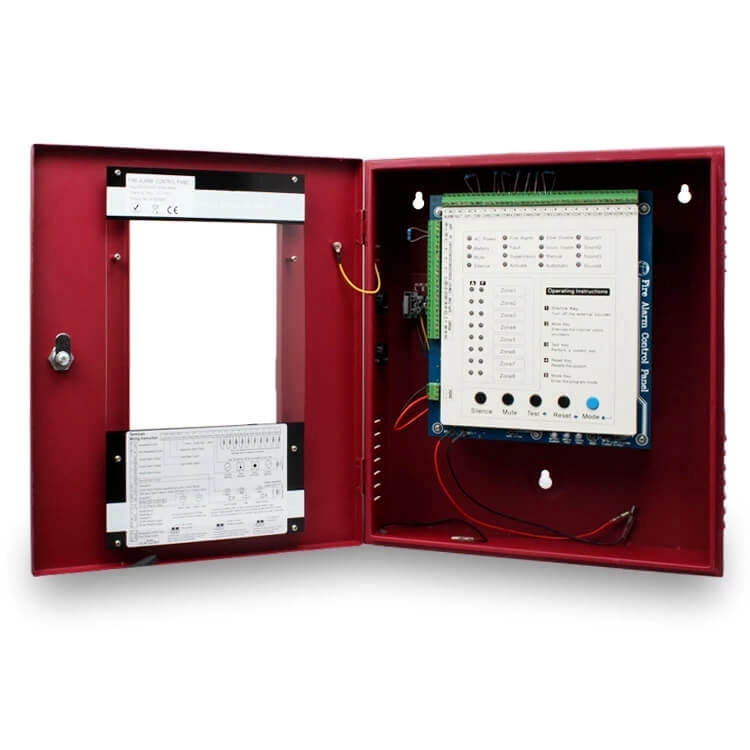

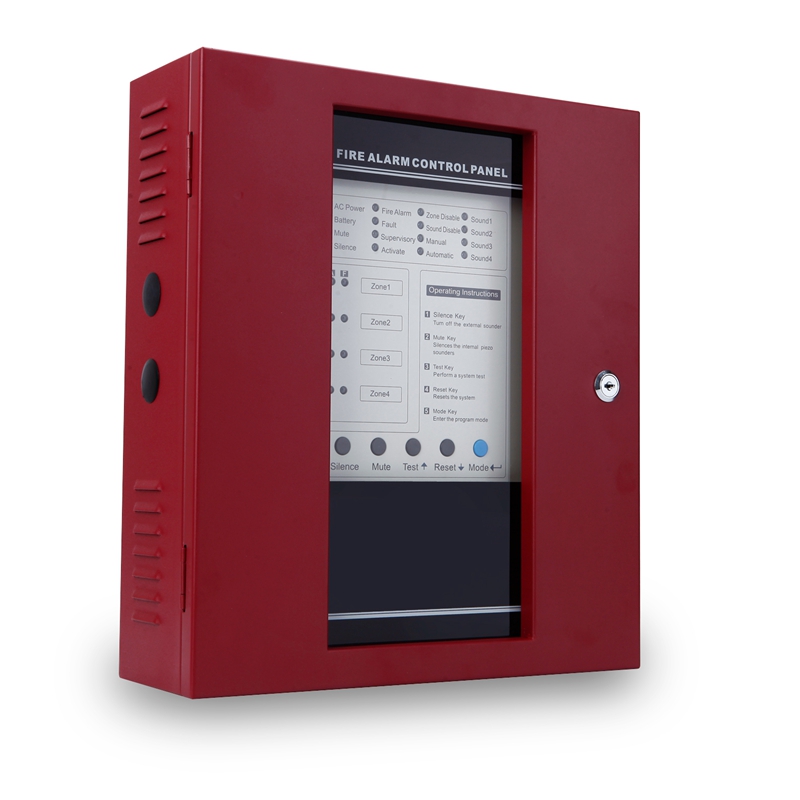

Product pictures:
This fire alarm control panel can Match any 2/4-wire smoke heat detector,strobe siren,fire bell,manual call point ect
| smoke detector | 2 wire, 4 wire optiona, photoeletrci type |
| heat detector | 2 wire, 4 wire optional, rate of rise or fixed temeparture |
| strobe siren | wired type, with or without strobe |
| fire bell | wired type, indoor or outdoor type |
| manual call point | resettable type or breaking glass type optional |
Not only the alarm control panel we have, but also we offer all kinds of detectors you want, we are looking forward to your inquiry, thank you!
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
