Factory price Surface mounted magnetic door contacts switch for window door
Main Features
1.Screw mount
2.Attractive cover keeps mounting screws and terminal screws hidden
3.Concealed or surface wiring
4.Switches or magnets available seperately
5.Colors: White, Brown
Technical parameter
| Specification for magnetic window and door contact switch | |
| Model | SR-44B |
| Case material | ABS |
| Dimension | 50*14*12mm |
| Case color | White or brow(customized) |
| Induction distance | 15-25mm |
| Max Cur./Vol./Power/Init.Ress for NO | 0.5A/100V/10W/200mΩ |
| Max Cur./Vol./Power/Init.Ress for NC | 0.5A/30V/3W/200mΩ |
| Signal output | NO or NC |
| Mounting | Surface mounted |
| Product type | Wired |
| Packing | 10pcs/bag |

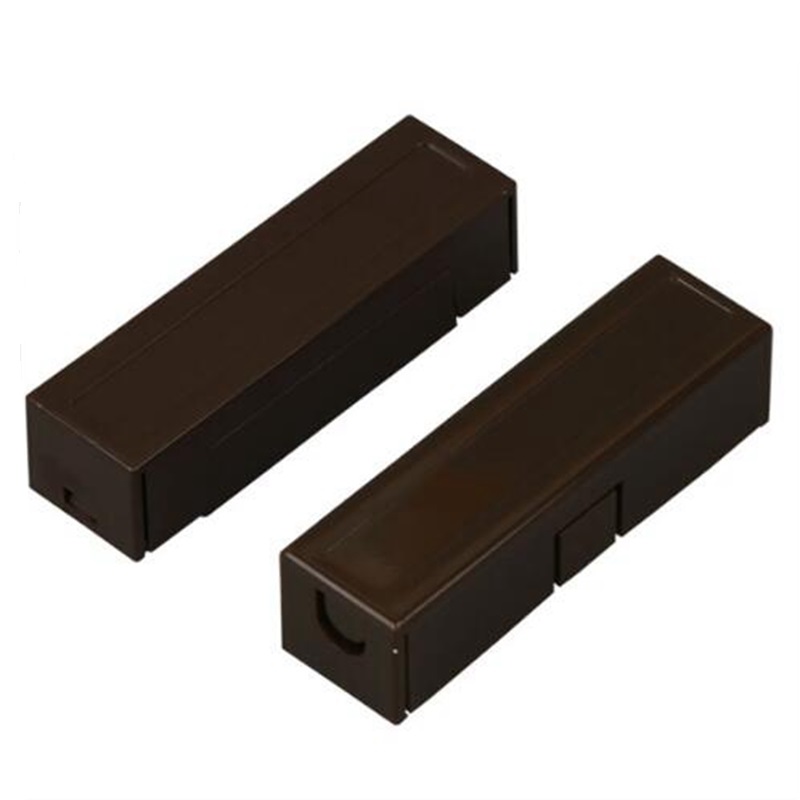

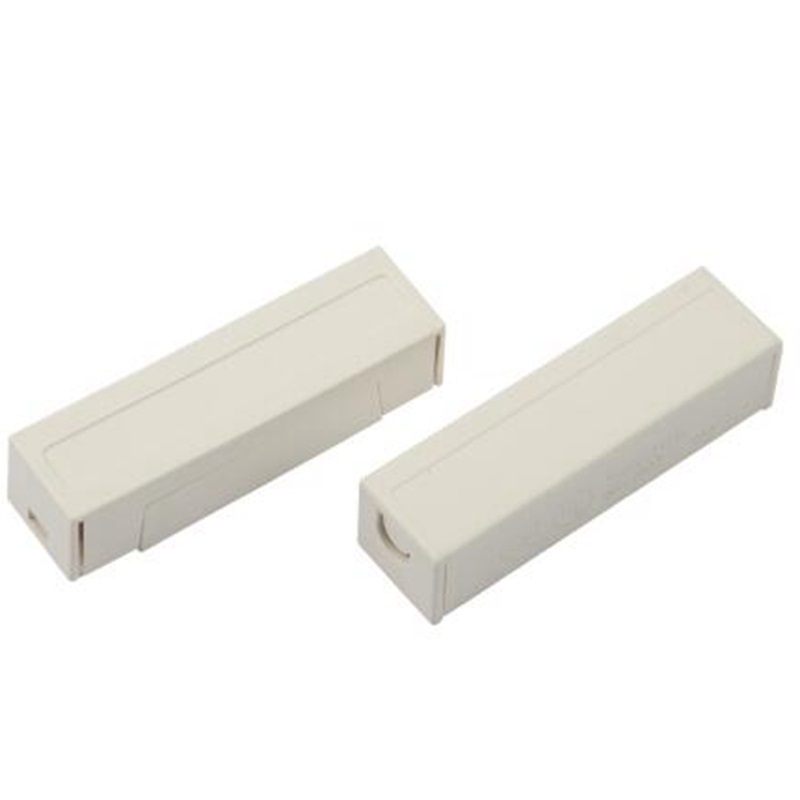

Product Pictures
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
Our certificate
| Packing Details for magnetic window and door contact switch | |
| Packing | PE Bag packing |
| PCS/Carton | 800pcs or 500pcs |
| GW/Carton | 18.3KGS or 11.6KGS |
| Carton Size | 37.5*29.5*30cm or 37.5*29.5*20cm |
| Card | Neutral or colorful English |
| Note: Blister or speacial package can be customized | |
