DC9-24V network water leak detector alarm used in home waterproof system with low battery indication

Click on the image to view the original image

Product：	views：2DC9-24V network water leak detector alarm used in home waterproof system with low battery indication
Branch：	SUMRING
Size：	9.1X9.1X3 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:27

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SUMRING

Model Number:: SR-W03BHC-DC

Usage:: security

Alarm mode:: Sound and flash alarm&Relay output

Name:: DC9-24V network water leak detector alarm used in home

Color:: White

Certificate:: Ce Approval

Output:: Nc or No Optional

Operating Voltage:: DC9-24V

Static Current:: ≤20mA

Alarm Indicator:: Red LED and Buzzer Souding

Fault Indicator:: Orange LED

Alarm Output:: Relay Output(Nc/No)

Packaging & Delivery

Selling Units:: Single item

Single package size:: 9.1X9.1X3 cm

Single gross weight:: 0.25 kg

Package Type:: white box or neutral color box

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	15	To be negotiated

Good stability Networking Water Alarm Detector Water Leak Detector with Ce Approval

Product Description

SR-W03BHC-DC is Network water leakage detector, using the principle of electrode immersed resistor changes to detect water. The detector adopts MCU intelligent detection, rust-proof metal probe design with advantages of high accuracy and sensitivity, low power consumption, long-term stability and reliability, etc. It can be widely used in all water storage equipment, such as basement, water tank, machine room, water route, water tower, water cellar, pools, water room, solar energy and anywhere to detect water leakage area.

Main features

1.Rust-proof metal probe, long service life

2.Sound and flash alarm

3.Low power consumption design

4.Test and hush button

5.Low battery warning

6.MCU processing, resist false alarm efficiently

7.SMT manufacture technology, good stability

Technical specification:

Model NO	SR-W03BHC-DC
Operating voltage	DC9-24V
Static Current	≤20mA
Alarm Current	≤130mA
Alarm Indicator	Red LED and buzzer souding
Fault Indicator	Orange LED
Alarm output	Relay output(NC/NO)
Working environment	0-60℃
Humidity	0-80%RH(no congelation)
Sound level	≥85dB/3m
Hush Time	10 minutes
Installation	Wall mounted or board installed
Dimension	898928mm(bracket not included)

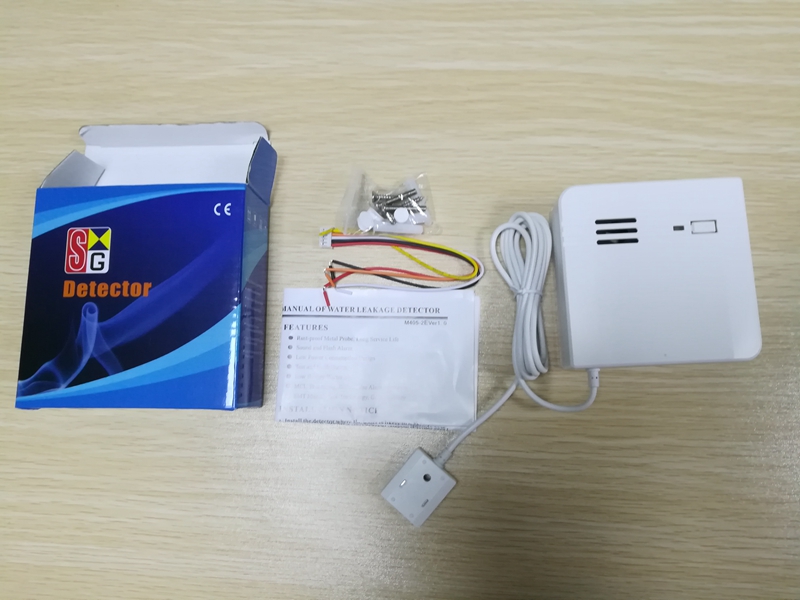

Product Pictures:
