Home > Products > Best sale wall or corner mounted NC/NO optional pir detector 24v with Wide angle

Best sale wall or corner mounted NC/NO optional pir detector 24v with Wide angle

Click on the image to view the original image

Product：	views：2Best sale wall or corner mounted NC/NO optional pir detector 24v with Wide angle
Branch：	SUMRING
Size：	12.6X6.4X4.8 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:27

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SUMRING

Model Number:: SR-605W

Usage:: security system

Name:: corner mounted NC/NO optionalpir detector 24v with Wide angle

Operating voltage:: DC9V-24V

Current consumption:: ≤18mA

Alarmindicator:: Red LED

Tamper output:: NC, contact DC28V 100mA

Alarm output:: NC/NO optional, contact DC28V 100mA

Self-testing time:: 60s

Microwave antennatype:: X-Band plane antenna with high frequency GaAs :FET oscillator

Detecting distance:: 12m

Packaging & Delivery

Selling Units:: Single item

Single package size:: 12.6X6.4X4.8 cm

Single gross weight:: 0.25 kg

Package Type:: carton

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	12	To be negotiated

Best salewall or corner mounted NC/NO optional pir detector 24v with Wide angle

Product Description

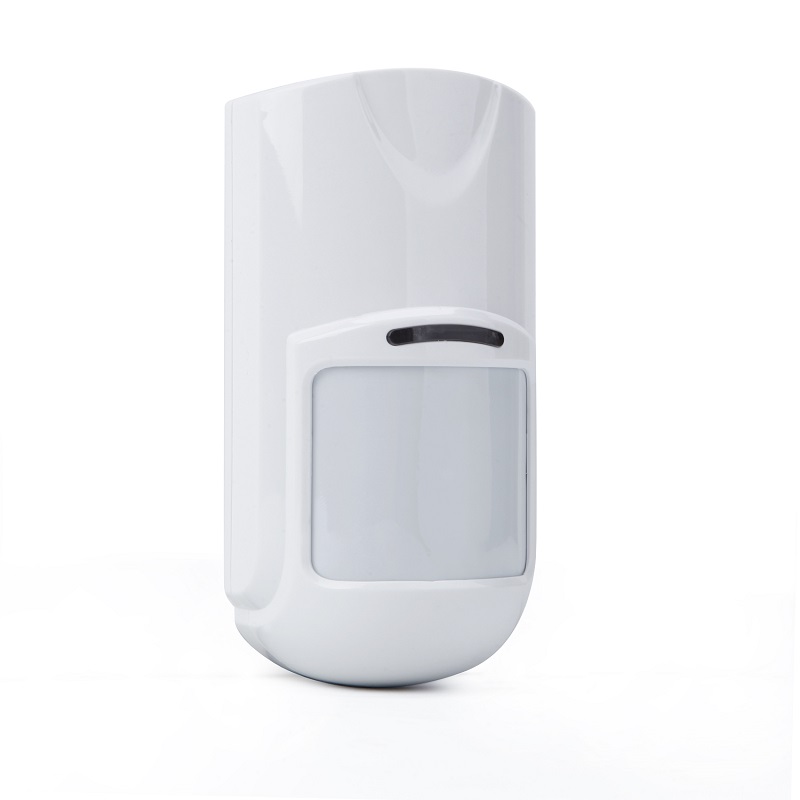

The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.

Main features:

1.MCU processing, anti-false alarm efficiently

2.Double temperature compensation

3.Pulse count adjustment

4.Anti white light interference

5.Anti RF interference(20V/m-1GHz)

6.Fresnel lens

7.Wall / corner mounted

8.Alarm output NC / NO optional

9.SMT manufacture technology

10.Execute criterion: GB10408.1, GB10408.5

Technical specification:

Model NO.	SR-605W
Operating voltage	DC9V-24V
Current consumption	≤18mA
Alarm indicator	Red LED
Tamper output	NC, contact DC28V 100mA
Alarm output	NC/NO optional, contact DC28V 100mA
Alarm time	0.3m/s - 3m/s
Self-testing time	60s
Microwave antenna type	X-Band plane antenna with high frequency GaAs :FET oscillator
Pet immunity	N/A
Detecting angle	110°
Detecting distance	12m
Installation	Wall or corner mounted
Working environment	-10℃~+50℃,(≤95%RH No congelation)
Dimension	1236246mm
