DC9-24V intelligent tri-tech intruder Pet immunity PIR Microwave detector
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5
Technical specification:
Model NO. | SR-605W |
Operating voltage | DC9V-24V |
Current consumption | ≤18mA |
Alarm indicator | Red LED |
Tamper output | NC, contact DC28V 100mA |
Alarm output | NC/NO optional, contact DC28V 100mA |
Alarm time | 0.3m/s - 3m/s |
Self-testing time | 60s |
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator |
Pet immunity | N/A |
Detecting angle | 110° |
Detecting distance | 12m |
Installation | Wall or corner mounted |
Working environment | -10℃~+50℃,(≤95%RH No congelation) |
Dimension | 123*62*46mm |

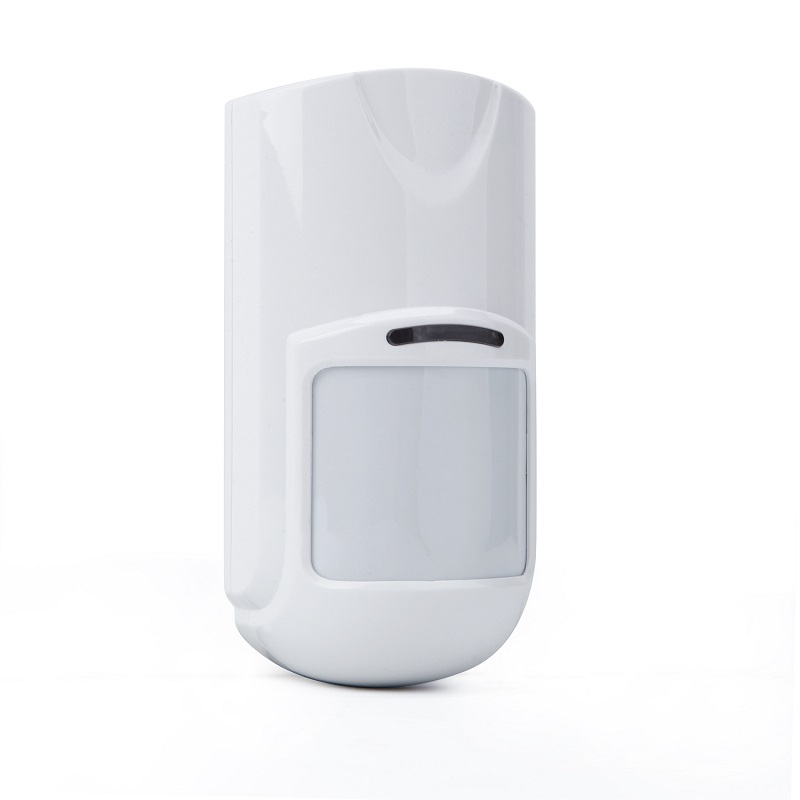

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
