Best price NC or NO optional passive infrared microwave motion detector
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5
Technical specification:
Model NO. | SR-605W | ||
Operating voltage | DC9V-24V | ||
Current consumption | ≤18mA | ||
Alarm indicator | Red LED | ||
Tamper output | NC, contact DC28V 100mA | ||
Alarm output | NC/NO optional, contact DC28V 100mA | ||
Alarm time | 0.3m/s - 3m/s | ||
Self-testing time | 60s | ||
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator | ||
Pet immunity | N/A | ||
Detecting angle | 110° | ||
Detecting distance | 12m | ||
Installation | Wall or corner mounted | ||
Working environment | -10℃~+50℃,(≤95%RH No congelation) | ||
Dimension | 123*62*46mm | ||

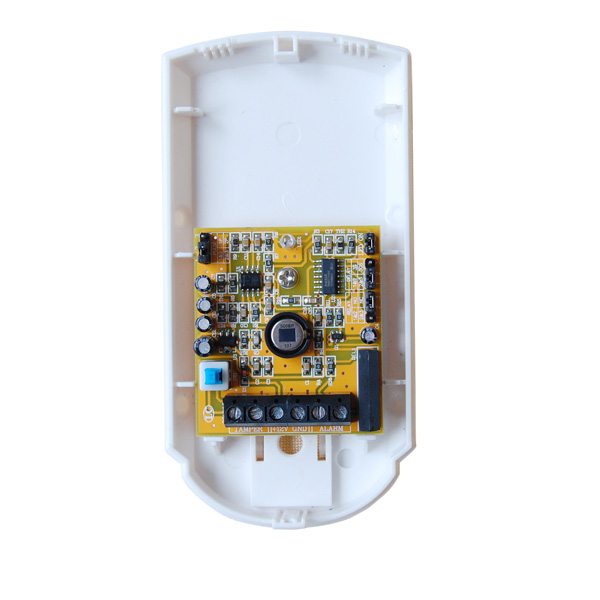

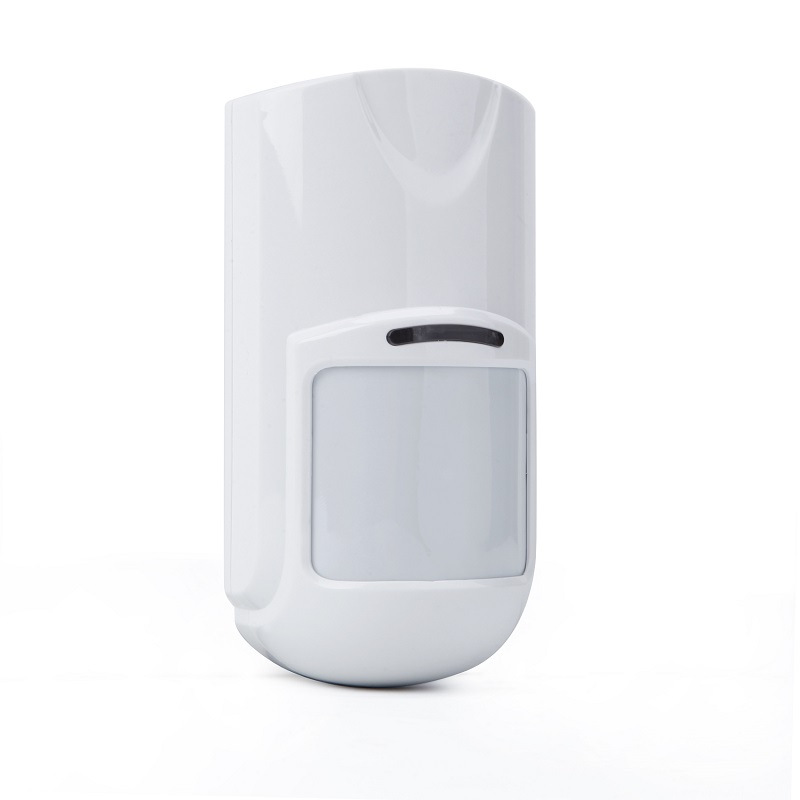

Product Pictures:
