- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-613W
- Name:
- Best wired GSM PIR Sensor Motion Detector Alarm for security alert
- operating voltage:
- DC 9-16V
- consumption current:
- ≤18mA(DC12V)
- dimension:
- 106*36mm
- installation mode:
- ceiling mounted
- installation height:
- about 2.5~6m
- detecting distance:
- 8m
- detecting angle:
- 360 degrees
- alarm output:
- N.O./ N.C. optional
- anti-dismantle switch:
- N.C.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10.8X10.8X3.8 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or according to customer requirements
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 10 To be negotiated
Best wired GSM PIR Sensor Motion Detector Alarm for security alert
Best wired PIR Sensor Motion Detector Alarm for security alert
Main features:
1.SR-613W Wide Angle PIR Detector (Infrared sensor)
2.ceiling mounted
3.fireproof ABS housing
4.LED ON/OFF optional
5.automatic temperature compensation
6.SMT adopted, anti-RFI & anti-EMI
7.pulse count optional
Technical specification:
operating voltage | DC 9-16V |
consumption current | ≤18mA(DC12V) |
operating temp | -10ºC~+50ºC |
installation mode | ceiling mounted |
installation height | about 2.5~6m |
detecting distance | φ8m |
detecting angle | 360 degrees |
alarm output | N.O./ N.C. optional |
anti-dismantle switch | N.C. |
dimension | φ106*36mm |

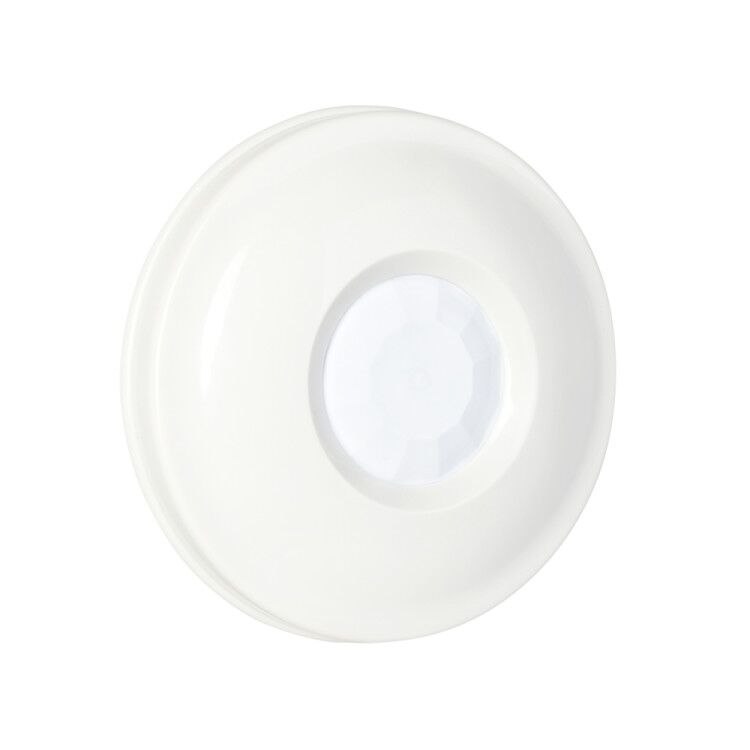

Product show
Applicable scope
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
