- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-603W
- Usage:
- home security, security system
- Product name:
- Wired 360 Degree Infrared Sensor Alarm PIR Motion Detector
- Operating voltage:
- DC9V~16V
- Static current:
- NC≤15mA NO≤6mA
- Alarm current:
- NC≤9mA NO≤18mA
- Alarm output:
- Relay output
- Detecting angle:
- 360°
- Detecting distance:
- 6m
- Operating temperature:
- -10℃~+50℃
- Dimension:
- 100mm(Dia)*32mm(H)
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10.2X10.2X3.4 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- carton or netural color box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 15 To be negotiated
Alarm output N.C. or N.O. 360 degree microwave motion infrared pir sensor detector
The product is wired ceiling passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential house, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens
Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design
SMT manufacture technology with high stability
Technical specification:
Model NO. | SR-603W |
Operating voltage | DC9V~16V |
Static current | NC≤15mA NO≤6mA |
Alarm current | NC≤9mA NO≤18mA |
Alarm output | Relay output |
Detecting angle | 360° |
Detecting distance | 6m |
Operating temperature | -10℃~+50℃ |
Dimension | 100mm(Dia)*32mm(H) |

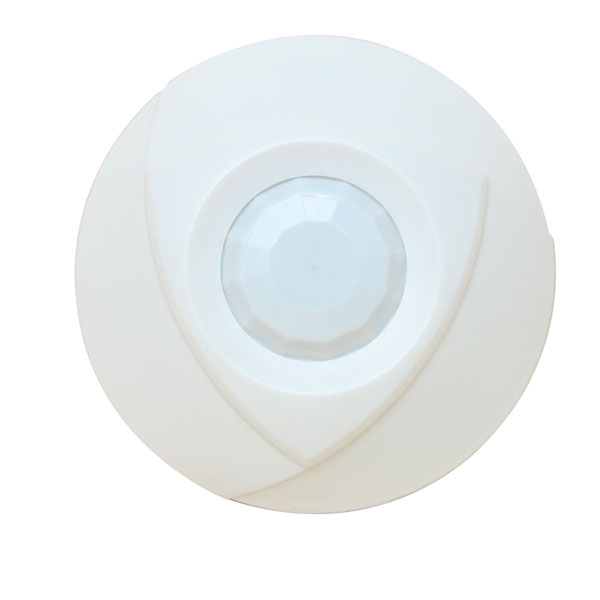

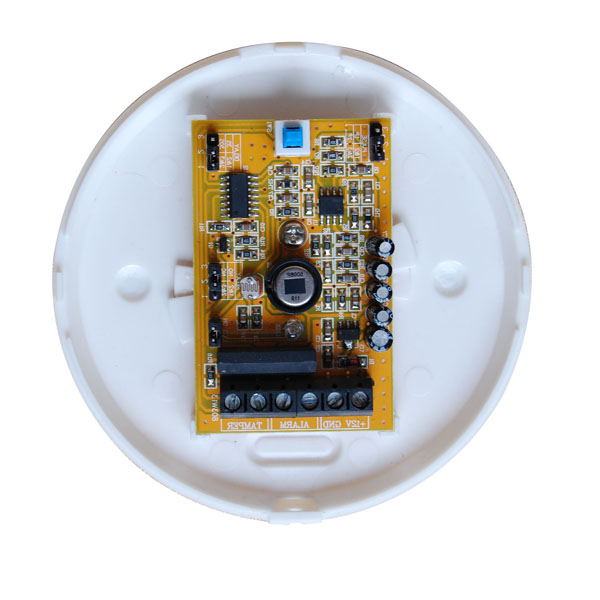

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
